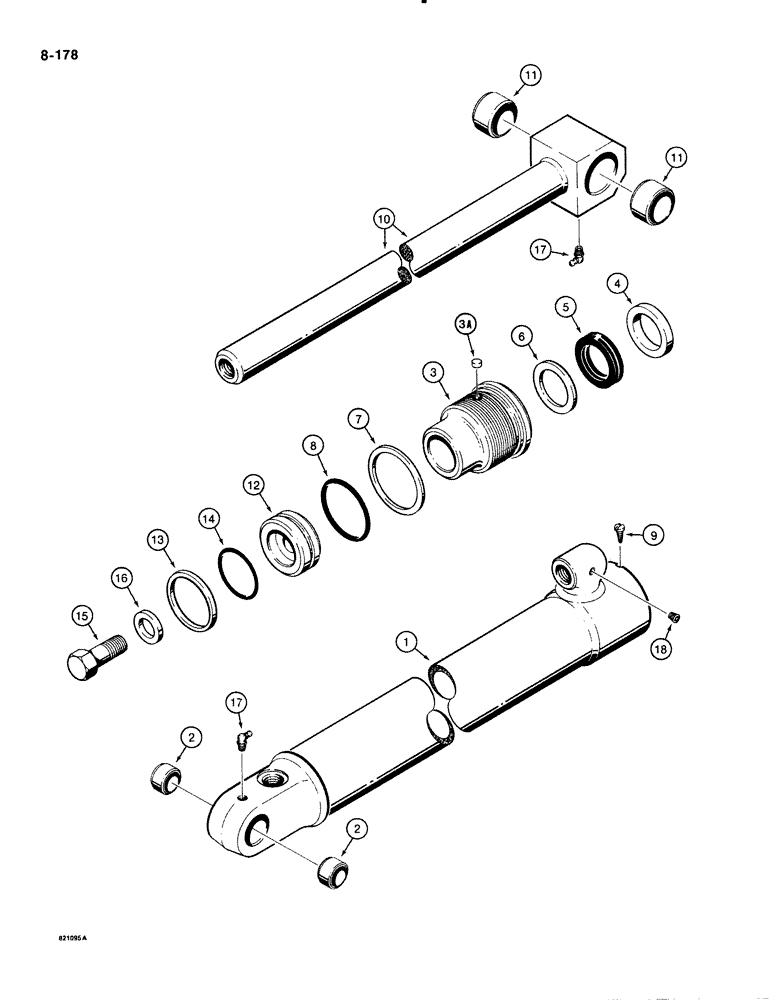

Запчасти Case 1835B (8-178) - G106818 LOADER LIFT CYLINDER (08) - HYDRAULICS

G106818

CYLINDER

ASSEMBLY lift, right hand and left hand, 2-1/2" 64 mm, ID x 26-3/4", 679 mm stroke, Includes: Ref. 1-17

2шт.

1

G106819

TUBE

ASSEMBLY cylinder, Includes: Ref. 2

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

G104008

GLAND

ASSEMBLY cylinder, Includes: Ref.3-8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

3a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

5

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL piston rod, wide

1шт.

5

G100776

SEAL

U-CUP SEAL piston rod, service option severe heat or cold

1шт.

6

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

piston rod, narrow

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING gland O-ring

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW self tapping, No. 8 - 32 NC x 3/8", if used

1шт.

10

G106824

ROD

ASSEMBLY piston, 1-1/2", 38 mm diameter, Includes: Ref. 11

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston rod

1шт.

12

G104100

PISTON

cylinder

1шт.

13

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston, outer

1шт.

14

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

piston

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

G109458

GASKET KIT

KIT seal, Includes Ref. 4, 5 P/N G107921, 6 - 8 and 14

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

SCREW bleeder

1шт.
