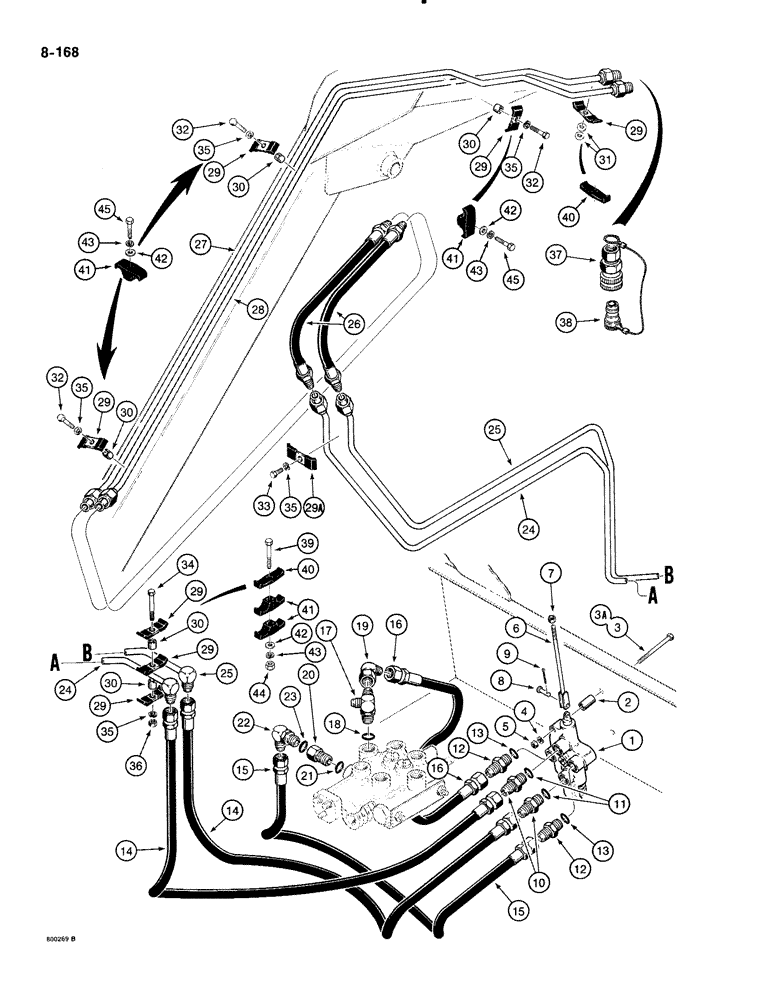

Запчасти Case 1835B (8-168) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D64670

VALVE

CONTROL VALVE auxiliary, parts list Fig. 8-174

1шт.

2

D95741

BUSHING

SPACER support, auxiliary control valve

2шт.

3

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

Upper Hex, 5/16"-18 x 3 1/2", G5

1шт.

3a

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

D89491

ROD

control, auxiliary control valve

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

F13790

PIN

CLEVIS PIN auxiliary control valve

1шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 11 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, male, Includes: Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

14

D36129

HOSE ASSY.

HOSE to auxiliary hydraulic tubes, 57", 1448 mm long

2шт.

15

R22412

HOSE

loader control valve to auxiliary control valve, 49", 1259 mm long

1шт.

16

D91258

HOSE

return, auxiliary control valve to loader control valve, 45", 1150 mm long

1шт.

17

D61606

TEE

at loader control valve, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

tee

1шт.

19

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

45 degree, adjustable

1шт.

20

D61608

SLEEVE

power beyond, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

sleeve

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

24

D91246

HYD TUBE,0.5" OD

TUBE from top valve port

1шт.

25

D91248

HYD TUBE,0.5" OD

TUBE from bottom valve port

1шт.

26

D61484

HOSE

to loader arm tubes, 29", 737 mm long

2шт.

27

D61590

TUBE

from top valve port

1шт.

Ref. # 27 TO SN17168363.LATER D135420.

1шт.

28

D61592

TUBE

from bottom valve port

1шт.

Ref. # 28 TO SN17168363.LATER D135422.

1шт.

29

D33316

CLAMP

tube, if used

7шт.

29a

D33316

CLAMP

tube

1шт.

30

D33551

BUSHING

SPACER tube clamp, if used

5шт.

31

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

32

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

3шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

34

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

36

9635082

NUT,5/16" - 18, Gr 5

1шт.

37

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

2шт.

38

D62402

PLUG

quick disconnect

2шт.

39

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

If used Hex, 5/16"-18 x 2 1/2", G5

1шт.

40

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tube, plastic, if used

2шт.

41

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

5шт.

42

195-103

WASHER,5/16"

flat, , plated, if used 5/16"

4шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
