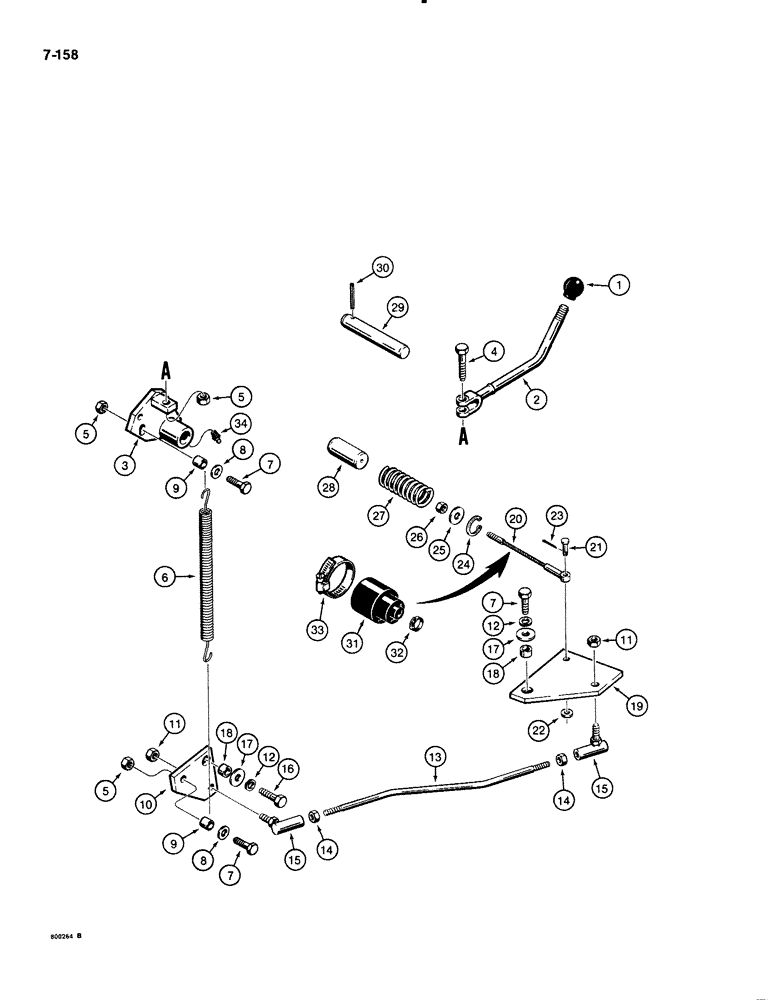

Запчасти Case 1835B (7-158) - PARKING LATCH (07) - BRAKES

1

D59912

KNOB

parking lever control

1шт.

2

D90953

LEVER

parking

1шт.

3

D91050

DIPPER

BELLCRANK lever

1шт.

4

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

5

131-52

NUT,3/8"-16, GC

NUT hex, self locking, 3/8" - 16 NC, plated

3шт.

6

D122968

SPRING

latch control

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

8

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

9

D33551

BUSHING

SPACER pivot plate and bellcrank

2шт.

10

D91048

PLATE

pivot, rear

1шт.

11

231-2446

NUT,3/8"-24, GB

NUT hex, self locking, 3/8" - 24 NF, plated

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

D123221

ROD

balljoint

1шт.

14

129-123

NUT,3/8"-24, G5

2шт.

15

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

BALLJOINT rod

2шт.

16

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

hex head, 3/8" - 16 NC x 1-1/4", plated

1шт.

17

D41740

WASHER

flat, 3/8", special

2шт.

18

D95557

SPACER

plates

2шт.

19

D123232

PLATE

pivot, front

1шт.

20

D64143

CABLE

parking brake

1шт.

21

141-52

CLEVIS PIN,1/4" x .770"

parking brake cable

1шт.

22

195-518

WASHER,1/4", SAE

flat, 1/4", plated

1шт.

23

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

24

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

1шт.

25

195-104

WASHER,3/8"

flat, , plated 3/8"

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

27

D91040

SPRING

brake latch

1шт.

28

D64228

PIN,25.45mm OD x 53.34mm L

brake latch

1шт.

29

D90619

PIN

ROD roll pin

1шт.

30

138-321

LOCK PIN,3/16" x 2", Slotted

Pin, , rod 3/16" x 2", Slotted

1шт.

31

D91150

BOOT

parking brake

1шт.

32

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP small

1шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.
