Запчасти Case 1835B (6-152) - DRIVE CHAIN AND GEARS (06) - POWER TRAIN

1

REF

INSTRUCTION

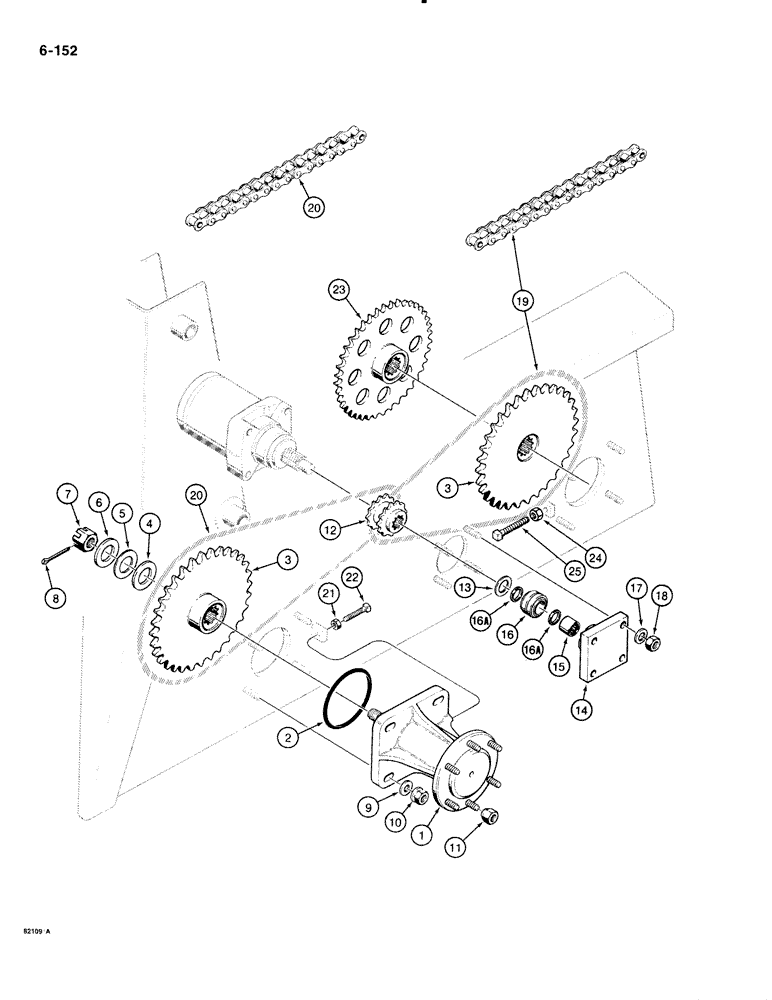

AXLE ASSEMBLY parts list Fig. 6-154

4шт.

#1 D132235....caged needle brg in this assy is D80554, Torrington

1шт.

2

D36183

O-RING,5.109" ID x 5.387" OD

axle

4шт.

3

D88624

DRIVE SPROCKET

SPROCKET axle

3шт.

#3 is not as illistrated it has holes like reference #23.

1шт.

4

T40258

WASHER

special, 0.1345", 3.41 mm thick

4шт.

5

T40257

WASHER

special, 0.0747", 1.89 mm thick

1шт.

6

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

special, 0.1562", 3.96 mm thick

1шт.

7

425-1314

SLOTTED NUT,7/8"-14, G5

NUT hex, slotted, 7/8" - 14 NF, plated

4шт.

8

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

9

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special, hardened

16шт.

10

131-915

FLANGE NUT,Flg, 1/2"-20, G5

hex, flange type, 1/2" - 20 NF

16шт.

11

F23214

WHEEL NUT

wheel

24шт.

12

D82637

DRIVE SPROCKET

SPROCKET drive

2шт.

13

G46081

BEARING WASHER

THRUST WASHER bearing housing assembly, used with D89378 housing assembly

2шт.

13

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

THRUST WASHER bearing housing assembly, used with D132235 housing assembly

2шт.

D89378

HOUSING

ASSEMBLY bearing, uses 1.25", 31.75 mm O.D. bearing, no longer available, order D132235 housing assembly and A58070 thrust washer

2шт.

D132235

HOUSING

ASSEMBLY bearing, uses 1.5", 38.1 mm O.D. bearing, Includes: Ref. 14-16A

2шт.

14

NSS

NOT SOLD SEPARAT

HOUSING bearing

1шт.

15

D80554

NEEDLE BEARING CAGE

NEEDLE BEARING motor shaft, 1.5", 38.1 mm O.D., used with D132235 housing assembly

1шт.

16

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING self aligning, used with D89378 housing assembly

1шт.

16

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

self aligning, used with D132235 housing assembly

1шт.

16a

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

RETAINER bearing, used with D132235 housing assembly

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

18

129-545

NUT,1/2"-20, G8

8шт.

19

D120022

CHAIN (CE),60 H, 70 Links x 19.05mm = 1333.5mm

CHAIN drive, 70 pitch, riveted endless

2шт.

20

D120023

CHAIN (CE),60 HT, 84 Links x 19.05mm = 1600.2mm

CHAIN drive, 84 pitch, riveted endless

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

22

85-636

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

square head, cup point, 3/8" - 16 NC x 2-1/4"

3шт.

23

D123235

DRIVE SPROCKET

SPROCKET parking brake

1шт.

#23 has a plate welded to the back.

1шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

25

85-848

SET SCREW,Sq Hd, 1/2" - 13 x 3"

square head, cup point, 1/2" - 13 NC x 3"

1шт.

d89378 subs to d132235

1шт.

use: d36203 bushing - 1

1шт.

d80554 bearing - 1

1шт.

d132922 keeper - 2

1шт.

parts will not interchange w/parts for d89378

1шт.

part # d89378....caged needle brg in this assy is d92999 (Torrington)

1шт.

there is a service bulletin for Ref. 12 sb10-88

1шт.
