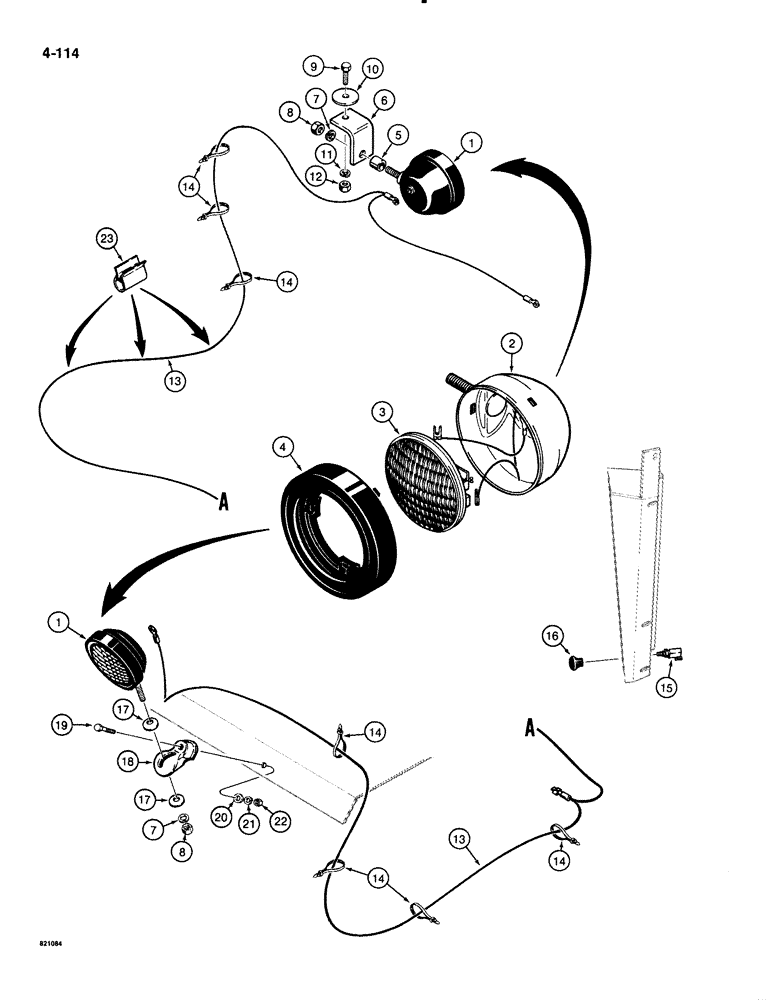

Запчасти Case 1835B (4-114) - LAMPS (04) - ELECTRICAL SYSTEMS

1

D70483

HEADLIGHT

FLOOD LAMP ASSEMBLY 12 volt, front and rear, Includes: Ref. 2-4

3шт.

2

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

3

A42294

SEALED BEAM UNIT

LAMP sealed beam, No. 4406

1шт.

4

A25213

RETAINER

rubber

1шт.

5

Y214

BUSHING

SPACER lamp

2шт.

6

D70114

BRACKET

MOUNT angle

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

T40254

WASHER

flat, special

2шт.

11

195-525

WASHER,3/8", SAE

lock, 3/8", plated

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

D124269

HARNESS

lamp

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

15

D74330

SWITCH

lamp

1шт.

16

D95781

BUTTON

light switch

1шт.

17

10923

WASHER

special, 1/2"

2шт.

18

A34046

BRACKET

lamp

1шт.

19

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

20

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

1шт.

23

214-1105

CLIP

wire harness

3шт.
