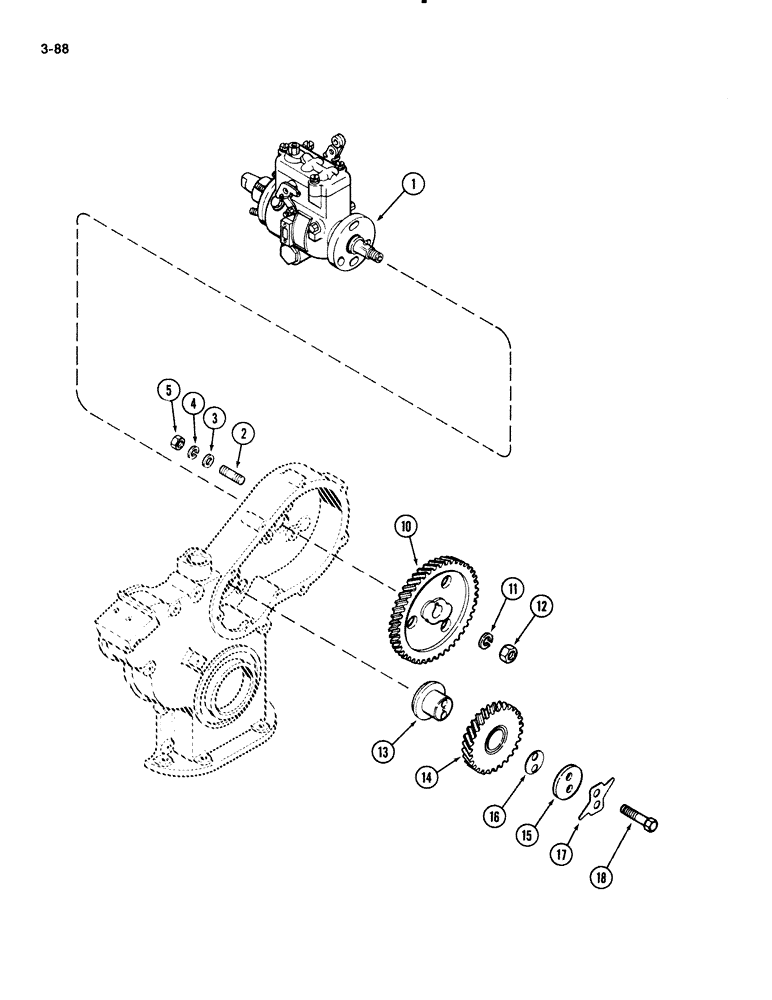

Запчасти Case 1835B (3-88) - FUEL INJECTION PUMP DRIVE, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY injection, See Fig. 3-86

1шт.

2

G102128

BOLT

pump mounting, 1-7/16 inch

3шт.

3

A30043

WASHER

mounting stud

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

3шт.

10

G2076

GEAR

drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

hex jam, 9/16 inch NF

1шт.

13

G11726

HUB

idler gear

1шт.

14

G11852

GEAR

ASSEMBLY idler, Includes bushing

1шт.

15

G11732

PLATE

thrust

1шт.

16

G11728

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

(0.1574 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

(0.2286 mm) .009" Thk

1шт.

17

G11746

PLATE

lock

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
