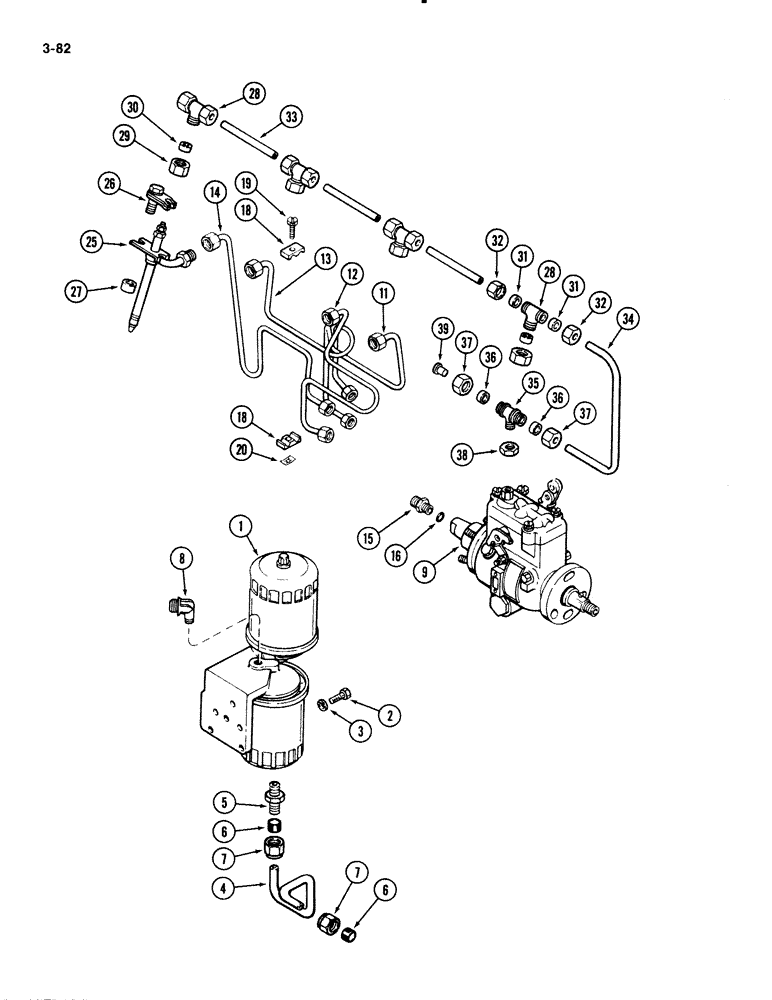

Запчасти Case 1835B (3-82) - FUEL INJECTION AND FILTER SYSTEM, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY fuel, See Fig. 3-84

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

A154898

TUBE

fuel, Serial Range: filter-pump

1шт.

5

222-4025

HYD CONNECTOR,9/16"-24 x 1/4" NPTF

CONNECTOR straight, 5/16 tube 7/16-24 thread x 1/4 inch PT

2шт.

6

222-103

SLEEVE,5/16" Tube

Filter to pump 5/16" Tube

2шт.

7

222-113

TUBE NUT,9/16"-24

NUT filter to pump

2шт.

8

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

fuel inlet 90º, 1/4"-27, NPT

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY fuel injection, See Fig. 3-86

1шт.

11

A153358

TUBE

ASSEMBLY pump to No. 1 nozzle

1шт.

12

A153359

TUBE

ASSEMBLY pump to No. 2 nozzle

1шт.

13

A153360

TUBE

ASSEMBLY pump to No. 3 nozzle

1шт.

14

A153361

TUBE

ASSEMBLY pump to No. 4 nozzle

1шт.

15

A51986

FITTING

pump inlet

1шт.

18

A58709

BRACKET

CLAMP injection tube

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

round head, No. 10-24 x 1 inch

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT speed lock, No. 10-24

2шт.

25

REF

INSTRUCTION

NOZZLE ASSEMBLY fuel injector, See Fig. 3-90

4шт.

26

A37837

CLAMP

ASSEMBLY injector nozzle

4шт.

27

A37839

SPACER

clamp

4шт.

28

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE nozzle leak-off lines

4шт.

29

A58961

NUT

, Serial Range: tee-nozzle

4шт.

30

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

, Serial Range: tee-nozzle

4шт.

31

222-102

SLEEVE,1/4" Tube

8шт.

32

87017024

TUBE NUT,1/2"-24

NUT for 1/4 inch tube

8шт.

33

A38644

TUBE

fuel leak-off

3шт.

34

A142906

TUBE

fuel leak-off, to injection pump

4шт.

35

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSEMBLY injection pump, Includes: Ref. 36-37

1шт.

16

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

36

222-102

SLEEVE,1/4" Tube

2шт.

37

87017024

TUBE NUT,1/2"-24

NUT for 1/4 inch tube

2шт.

38

A38160

LOCK NUT

sealing 1/8 inch PT

4шт.

39

47-47

RIVET,FH, 1/4" x 7/16"

PLUG leak-off tee

1шт.

FOR ELECTRIC FUEL PICK-UP PUMP, SEE SERVICE BULLETIN NUN SB 012 88. BJ 6-13-96

1шт.
