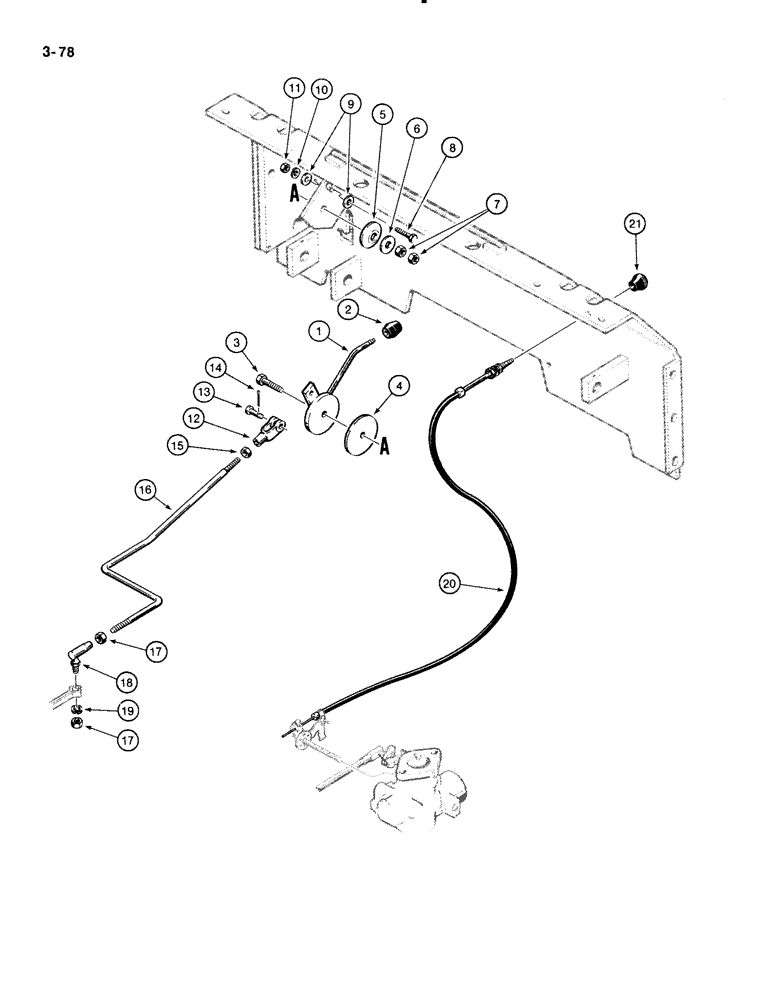

Запчасти Case 1835B (3-78) - GASOLINE ENGINE CONTROLS (03) - FUEL SYSTEM

1

D80795

HANDLE

throttle control

1шт.

2

D53845

KNOB

handle

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

R15071

DISC

FRICTION DISC handle

1шт.

5

R14771

WASHER

BELLEVILLE WASHER handle

1шт.

6

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS adjustable, 1/4"

1шт.

13

141-52

CLEVIS PIN,1/4" x .770"

throttle control rod

1шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Clevis pin 1/16" x 1/2"

1шт.

15

129-121

NUT,1/4"-28, G5

1шт.

16

D89966

ROD

throttle control

1шт.

17

129-122

NUT,5/16"-24, G5

2шт.

18

A19105

BALL JOINT

throttle control rod

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

20

D91272

CABLE

choke control

1шт.

21

D91274

KNOB

choke control cable

1шт.
