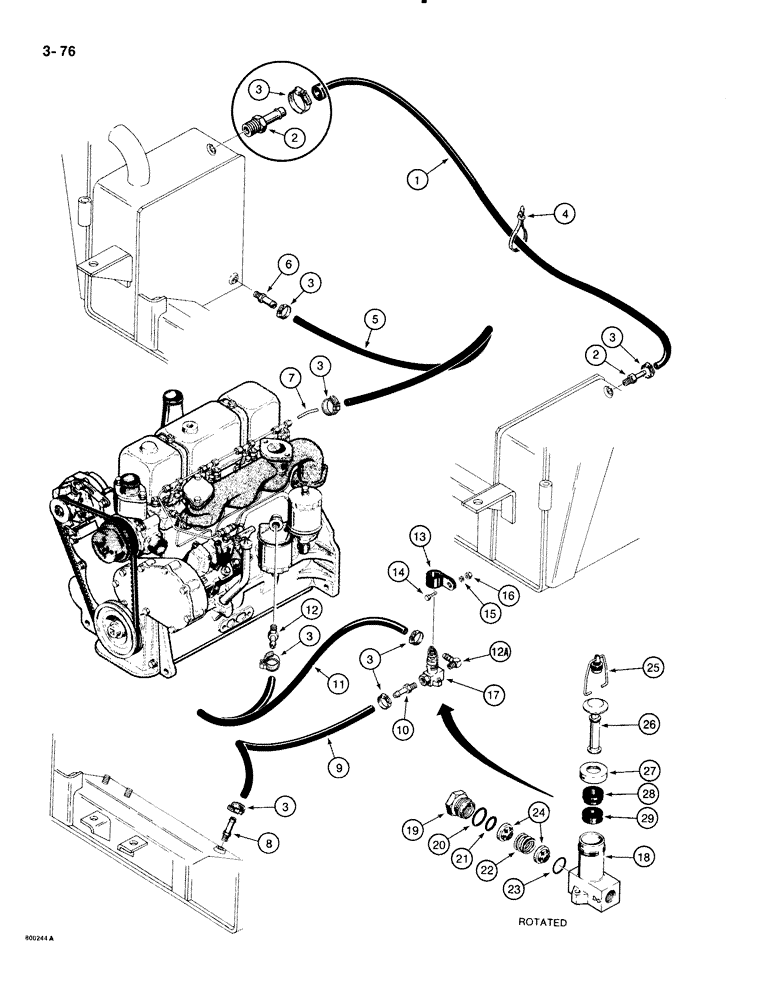

Запчасти Case 1835B (3-76) - FUEL LINES, DIESEL MODELS (03) - FUEL SYSTEM

1

REF

INSTRUCTION

HOSE fuel vent, 3/8", 10 mm x 40", 1016 mm long, cut from A21562 bulk hose, see below

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Fuel vent, hose to tank 3/8" Hose X 1/4" NPTF Beaded

2шт.

Ref #2 - Replaced by 217-125 03/21/96

1шт.

3

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

8шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

REF

INSTRUCTION

HOSE fuel return, 1/4", 6 mm x 48", 1220 mm long, cut from A21561 bulk hose, see below

1шт.

6

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

STEM FITTING straight, fuel return hose to fuel tank

1шт.

7

D67306

TUBE

fuel return hose

1шт.

8

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

STEM FITTING straight, fuel tank to fuel primer hose

1шт.

9

REF

INSTRUCTION

HOSE tank to primer, 1/4", 6 mm x 17", 432 mm long, cut from H400184 bulk length hose, item 9A

1шт.

9a

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

6.35 mm ID x 1905.00 mm Bulk, SAE 30R1, SAE 30R3, Cut from Bulk Hose, Not Shown

1шт.

10

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING straight, hose to primer

1шт.

11

REF

INSTRUCTION

HOSE primer to fuel filter, 1/4", 6 mm x 17", 432 mm long, cut from H400184 bulk length hose, item 9A

1шт.

12

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING straight, hose to fuel filter

1шт.

12a

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

BARB FITTING 90 degree

1шт.

13

R21385

CLAMP

primer

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

D75092

PUMP

PRIMER ASSEMBLY fuel, Includes: Ref. 18-25

1шт.

18

F10070

BODY

primer

1шт.

19

F10068

NUT

FITTING special

1шт.

20

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL fitting

1шт.

21

51200832

SEAL ASSY.

SEAL valve

1шт.

22

D75866

SPRING

valve

1шт.

23

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL valve body

1шт.

24

F10076

LOCK VALVE

VALVE primer

2шт.

25

F10073

CLAMP

plunger

1шт.

N7519

KIT

PLUNGER ASSEMBLY primer, Includes: Ref. 26-29

1шт.

26

F10074

KIT

PISTON plunger

1шт.

27

D75865

KIT

CAP plunger

1шт.

28

F10072

GUIDE

SLEEVE piston

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

A21562

HOSE,0.38" ID x 25.00"

bulk, 1/4", 6 mm x 25', 7.62 m long

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
