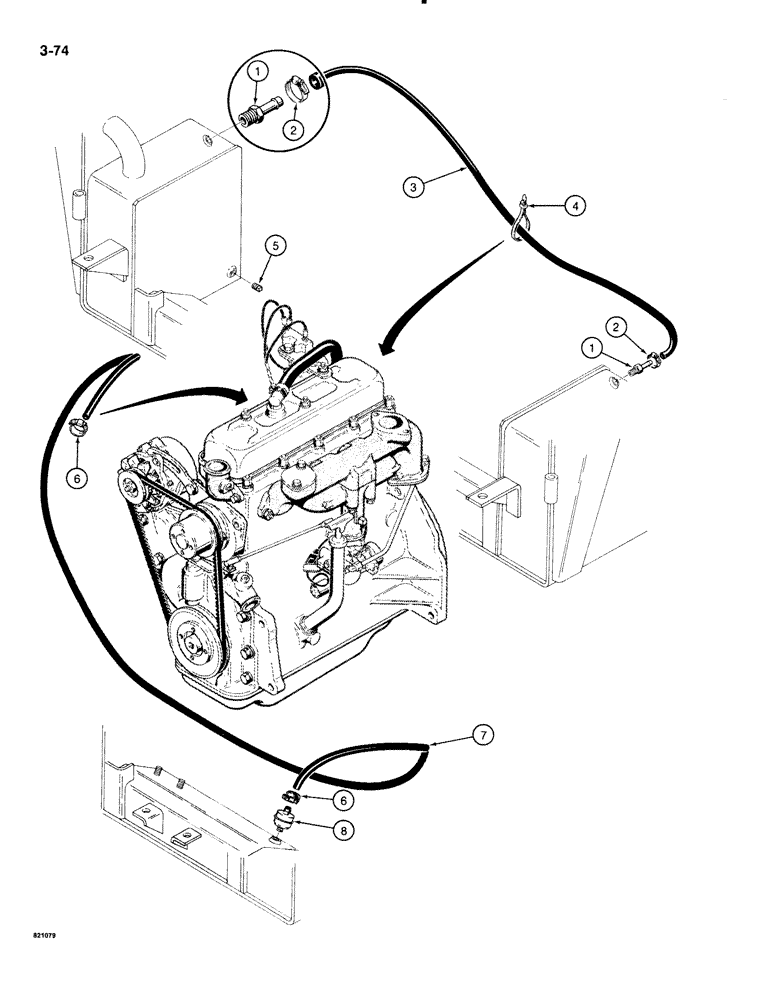

Запчасти Case 1835B (3-74) - FUEL LINES, GASOLINE MODELS (03) - FUEL SYSTEM

1

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight, Fuel vent, hose to tank 3/8" Hose X 1/4" NPTF Beaded

2шт.

Ref #1 - Replaced by 217-125 03/21/96

1шт.

2

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP fuel vent hose

2шт.

3

REF

INSTRUCTION

HOSE fuel vent, 3/8", 10 mm x 40", 1016 mm long, cut from A21562 bulk hose, see below

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

square head, 1/8" NPT

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

7

REF

INSTRUCTION

HOSE filter to fuel pump, 5/16", 8 mm x 40", 1016 mm long, filter, cut from H424101 bulk length hose, see below

1шт.

8

D53499

FILTER

fuel, tank mounted

1шт.

A21562

HOSE,0.38" ID x 25.00"

bulk, 1/4", 6 mm x 25' , 7.62 m long

1шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

- Bulk 7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

1шт.

NOT PICTURED IS A FILTER AND A FUEL SHUTOFF VALVE - THE FILTER IS D53499, SHUTOFF VALVE IS 217-90.

1шт.
