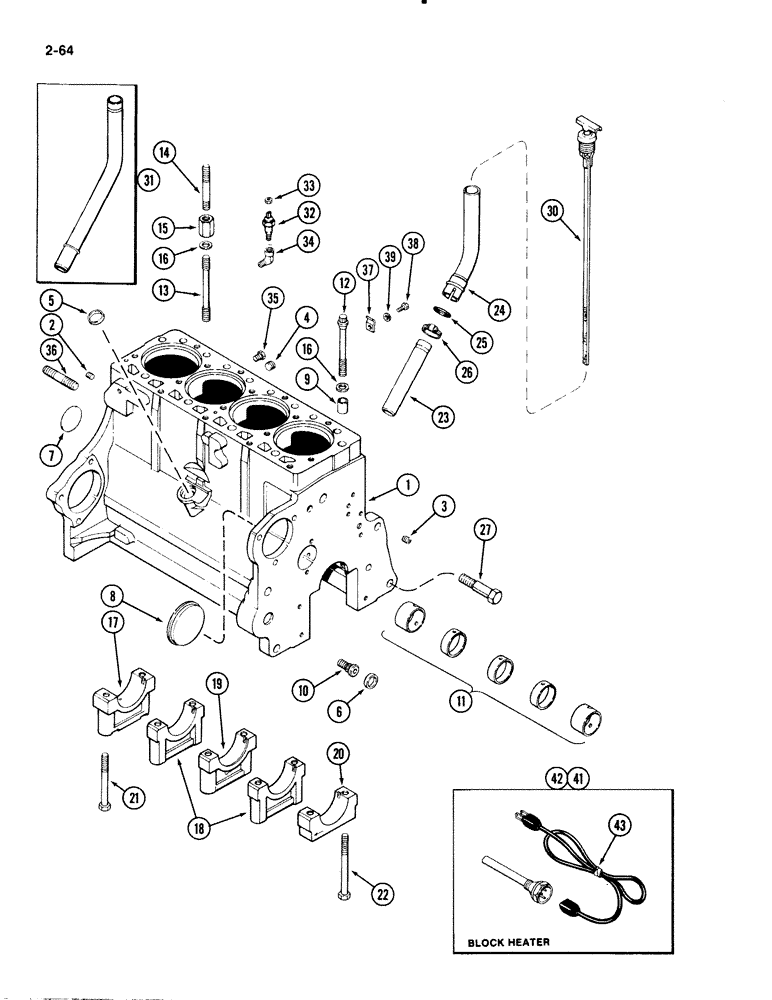

Запчасти Case 1835B (2-64) - CYLINDER BLOCK, 188 DIESEL ENGINE (02) - ENGINE

A46352

CRANKCASE

BLOCK ASSEMBLY short, Includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears), cylinder block 188 diesel engine

1шт.

1

AR46351

ENGINE, EXCHANGE

BLOCK ASSEMBLY stripped, Remanufactured, North America only, cylinder block 188 diesel engine

1шт.

1

AC46351

CORE-ENGINE

RETURN NUMBER block, use this number when returning block for credit, sylinder block 188 diesel engine

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY stripped, New, Casting No. A152625, Includes: Ref. 2-26, cylinder block 188 diesel engine

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Cylinder block 188 diesel engine Hex Soc, 1/4"-18 NPTF

3шт.

3

G49070

PLUG

drilled, 1/4 inch PT, cylinder block 188 diesel engine

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG socket head, 3/8 inch PT, cylinder block 188 diesel engine

1шт.

5

A38534

PLUG

cup type, 1-1/16 inch diameter, 27 mm, cylinder block 188 diesel engine

1шт.

6

41-1016

PLUG,Cup, 1"

cup type, 1 inch diameter, 25 mm, cylinder block 188 diesel engine

1шт.

7

41-1030

PLUG,Cup, 1 7/8"

expansion, 2-1/8 inch diameter, 54 mm, cylinder block 188 diesel engine

1шт.

Ref #7 - Should be 1 7/8" not 2 1/8" 03/21/96

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

cup type, 3-1/4 inch diameter, 83 mm, cylinder block 188 diesel engine

1шт.

9

G49608

RING

dowel, cylinder block 188 diesel engine

2шт.

10

A153552

ADAPTER

oil filter, cylinder block 188 diesel engine

1шт.

11

REF

INSTRUCTION

BUSHING camshaft, See Fig. 2-58, sylinder block 188 diesel engine

1шт.

12

A39047

12 PT SCREW

BOLT cylinder head, 3-1/2 inch, 12 point head, cylinder block 188 diesel engine

4шт.

12

A39047

12 PT SCREW

BOLT cylinder head, 3-1/2 inch, 12 point head, cylinder block 188 diesel engine

4шт.

12

A39048

12 PT SCREW

BOLT cylinder head, 5-1/8 inch, 12 point head, cylinder block 188 diesel engine

11шт.

12

A39049

12 PT SCREW

BOLT cylinder head, 5-5/8 inch, 12 point head, cylinder block 188 diesel engine

2шт.

13

A36902

STUD

cover, 5-5/8 inch, lower, cylinder block 188 diesel engine

2шт.

14

A51271

STUD

cover, 3-3/4 inch, cylinder block 188 diesel engine

2шт.

15

A51114

NUT

connector, cylinder block 188 diesel engine

2шт.

16

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

head bolt, cylinder block 188 diesel engine

19шт.

17

A38385

CAP

rear, crankshaft bearing, cylinder block 188 diesel engine

1шт.

18

G2128

CAP

intermediate, crankshaft bearing, cylinder block 188 diesel engine

2шт.

19

G2127

CAP

center, crankshaft bearing, cylinder block 188 diesel engine

1шт.

20

G2126

CAP

front, crankshaft bearing, cylinder block 188 diesel engine

1шт.

21

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

hex, 1/2 NC x 4-1/2 inch, Grade 8, cylinder block 188 diesel engine

8шт.

21

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

hex, 1/2 NC x 4-1/2 inch, Grade 8, cylinder block 188 diesel engine

8шт.

22

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

hex, 1/2 NC x 5-1/8 inch, Grade 8, cylinder block188 diesel engine

2шт.

23

A37149

TUBE

oil filler and dipstick, Service repair block, See Ref. 31, cylinder block 188 diesel engine

1шт.

24

A37407

TUBE

EXTENSION tube, Service repair block, See Ref. 31, (service repair block)

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

tube seal, (service repair block)

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP tube, 1-3/16 inch to 1-3/4 inch, (service repair block)

1шт.

27

A38303

BOLT

BOLT 5/8 NC x 3-3/16 inch, service repair block)

1шт.

30

A136379

DIPSTICK

oil level, (service repair block)

1шт.

31

NSS

NOT SOLD SEPARAT

oil filler and dipstick, JI Case installed, (service repair block)

1шт.

32

A162297

SWITCH

SENDER engine oil pressure, (service repair block)

1шт.

33

193-1000

NUT,Keps, w/LW,#10-32

Sems, No. 10 NF, (service repair block)

1шт.

34

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

45 degree street, 1/8 PT brass, (service repair block)

1шт.

35

221-841

PLUG

hex head, 1/4 inch PT, (service repair block)

1шт.

36

A51412

STUD

rear, 1-3/4 inch NF, (service repair block)

1шт.

37

A26673

CLIP

fuel shutoff cable retaining, (service repair block)

1шт.

38

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Service repair block) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Service repair block) 1/4"

1шт.

41

A182031

HEATER ASSY.

HEATER ASSEMBLY cylinder block, Includes: Ref. 43, (Canadian), block heater

1шт.

42

A182030

HEATER

ASSEMBLY cylinder block, block heater

1шт.

43

A182034

CABLE

CORD ASSEMBLY 18 inch, 457 mm long, Block Heater

1шт.
