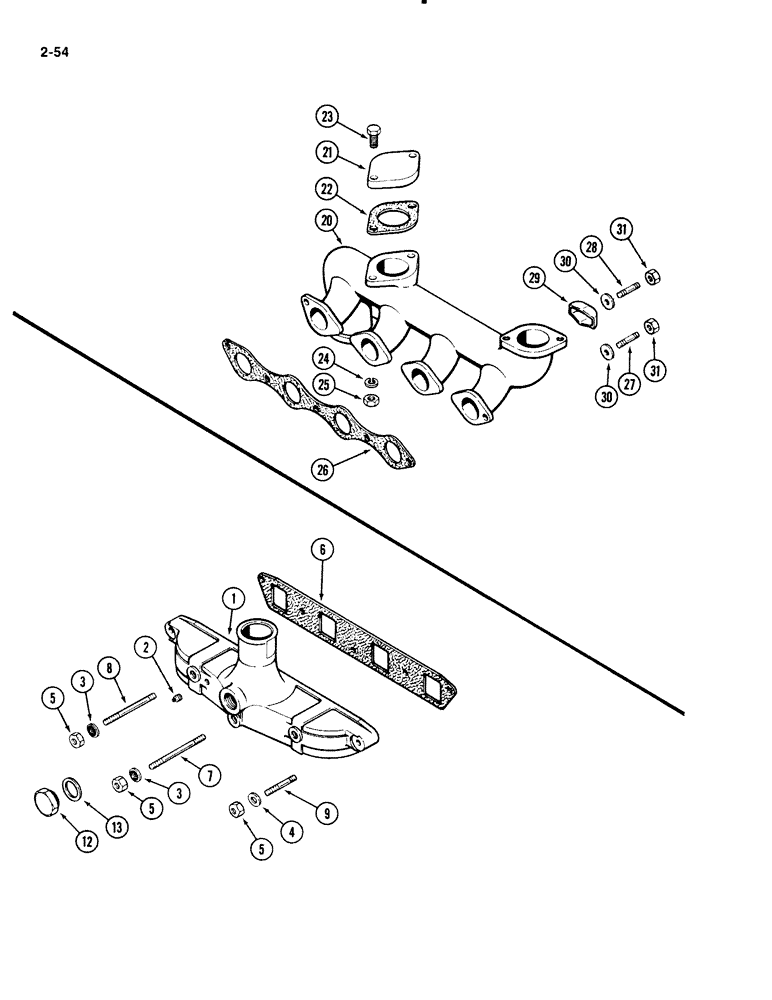

Запчасти Case 1835B (2-54) - INTAKE MANIFOLD, 188 DIESEL ENGINE (02) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY intake, Includes: Ref. 2-5, , 188 diesel engine

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8 inch PT, 188 diesel engine

1шт.

3

A50694

DISC

WASHER sealing, 188 diesel engine

3шт.

4

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch, 10 x 21 x 2 mm, 188 diesel engine

2шт.

5

25-166

NUT,3/8"-16, G5, Hvy

hex, 3/8 inch NC, 188 diesel engine

5шт.

6

G46871

GASKET

manifold to head, 188 diesel engine

1шт.

7

A51500

STUD

center, 5-5/16 inch, 188 diesel engine

1шт.

8

A153248

STUD

intermediate, 4-13/16 inch, 188 diesel engine

2шт.

9

A140924

STUD

end, 2-5/8 inch, 188 diesel engine

2шт.

12

A20917

PLUG

heater hole, 188 diesel engine

1шт.

13

A20916

MANIFOLD GASKET

GASKET plug, 188 diesel engine

1шт.

20

A39233

MANIFOLD

ASSEMBLY exhaust, Includes: Ref. 21-25, exhaust manifold

1шт.

21

A38188

PLATE

cover, Exhaust Manifold

2шт.

22

G46853

MANIFOLD GASKET

cover plate, Exhaust Manifold

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8 x 1-1/2 inch NC hex, Exhaust Manifold

4шт.

24

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch, 10 x 21 x 2 mm, Exhaust Manifold

4шт.

25

131-903

NUT,3/8"-16

NUT hex Seez-Proof, 3/8 inch NC, Exhaust Manifold

4шт.

26

G46872

MANIFOLD GASKET

manifold to head, Exhaust Manifold

1шт.

27

A29431

STUD

end, 1-3/4 inch, Exhaust Manifold

2шт.

28

A140924

STUD

clamp, 2-5/8 inch, Exhaust Manifold

3шт.

29

A35028

CLAMP

manifold, Exhaust

3шт.

30

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch, 10 x 21 x 2 mm, Exhaust Manifold

5шт.

31

131-903

NUT,3/8"-16

NUT hex Seez-Proof, 3/8 inch NC, Exhaust Manifold

5шт.
