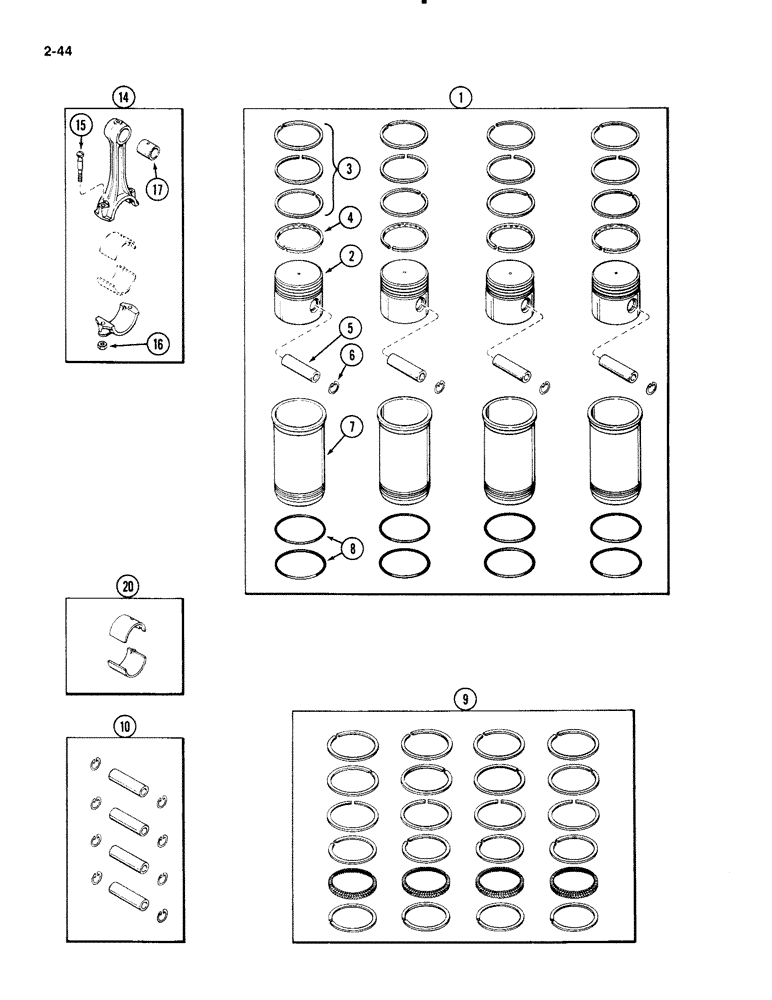

Запчасти Case 1835B (2-44) - PISTONS AND SLEEVES, 148B SPARK IGNITION ENGINE, CONNECTING ROD (02) - ENGINE

1

G11007

SLEEVE ASSY

PISTON AND SLEEVE KIT engine, Matched set of 4, Includes: Ref. 2-8, 148B spark ignition engine

1шт.

2

G1060

PISTON

engine, 148B spark ignition engine

4шт.

3

G1062

OIL SEAL

RING compression, See Ref. 9, 148B spark ignition engine

12шт.

4

G1063

OIL SEAL

RING oil control, See Ref. 9, 148B spark ignition engine

4шт.

5

NSS

NOT SOLD SEPARAT

PIN piston, Order Ref. 10, 148B spark ignition engine

4шт.

6

A30023

RETAINER

RING retaining, 148B spark ignition engine

8шт.

7

G1061

SLEEVE

piston, 148B spark ignition engine

4шт.

8

G46909

O-RING,3.112" ID x 3.344" OD

sleeve seal, 148B spark ignition engine

8шт.

9

G11116

PISTON RING SET

RING KIT piston, Set of 4, 148B spark ignition engine

1шт.

10

G11925

PISTON PIN

PIN KIT piston, Set of 4 pins and 8 retaining rings, 148B spark ignition engine

1шт.

14

G11592

EXCHANGE CONROD

ROD ASSEMBLY connecting, Includes: Ref. 15-17, connecting rod

4шт.

15

G11701

BOLT

cap, connecting rod

2шт.

16

A51904

NUT

NUT cap bolt, rod, connecting rod

2шт.

17

G49652

BUSHING,21.18mm ID x 23.13mm OD x 27.94mm L

piston pin, connecting rod

1шт.

20

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

INSERT KIT rod bearing, Set of 2, Standard, connecting rod

4шт.

20

A46051

BEARING LINER

INSERT KIT rod bearing, Set of 2, 0.002 inch, undersize 0.0508 mm, connecting rod

4шт.

20

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

INSERT KIT rod bearing, Set of 2 0.010 inch, undersize 0.254 mm, connecting rod

4шт.

20

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

INSERT KIT rod bearing, Set of 2, 0.020 inch, undersize 0.508 mm, connecting rod

4шт.

20

A46054

BEARING LINER

INSERT KIT rod bearing, Set of 2, 0.030 inch, undersize 0.762 mm, connecting rod

4шт.
