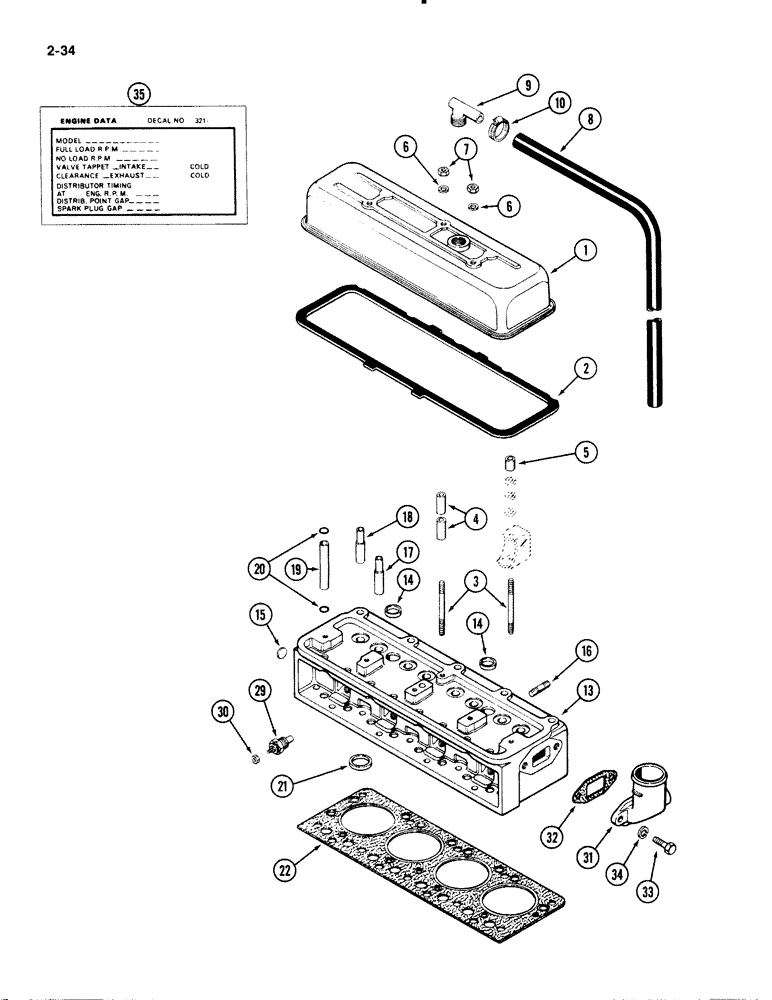

Запчасти Case 1835B (2-34) - CYLINDER HEAD AND COVER, 148B SPARK IGNITION (02) - ENGINE

1

A37212

COVER

ASSEMBLY cylinder head

1шт.

2

A43021

GASKET

, Serial Range: cover-head

1шт.

3

G49505

STUD

cover and head, 4-5/8 inch

3шт.

4

A29999

SPACER

center, 5/8 inch, 16 mm long

2шт.

5

A30065

SPACER

end, 1/2 inch, 13 mm long

2шт.

6

195-137

WASHER,13/32" x 1 1/8" x .180"

flat, 13/32 x 1-1/8 x 3/16 inch, 10 x 29 x 5 mm

3шт.

7

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

3шт.

8

A39570

HOSE

breather

1шт.

9

A9155

90 ELBOW

breather

1шт.

10

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP 9/16 inch to 1-1/16 inch

1шт.

13

G11874

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, Casting G2088, Includes: Ref. 14-21

1шт.

14

41-1016

PLUG,Cup, 1"

cup type, 1 inch, diameter 25 mm

2шт.

15

41-18

PLUG

expansion, 1-1/8 inch, diameter 29 mm

1шт.

16

A29431

STUD

manifold, 1-3/4 inch

7шт.

17

A29955

GUIDE

intake valve

4шт.

18

A29954

GUIDE

exhaust valve

4шт.

19

G11360

TUBE,0.687" OD x 3.687" L

push rod

8шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

tube seal

16шт.

21

G2106

INSERT

exhaust valve seat

4шт.

22

REF

INSTRUCTION

GASKET head to block, See Fig. 2-47

1шт.

29

D65446

SENDER UNIT

SENDER temperature

1шт.

Ref #29 - Replaced by A154283 03/20/96

1шт.

30

193-1000

NUT,Keps, w/LW,#10-32

Keps, No. 10-32

1шт.

31

G11965

ELBOW

water outlet

1шт.

32

A30003

GASKET

, Serial Range: elbow-head

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

321-5845

DECAL

engine

1шт.
