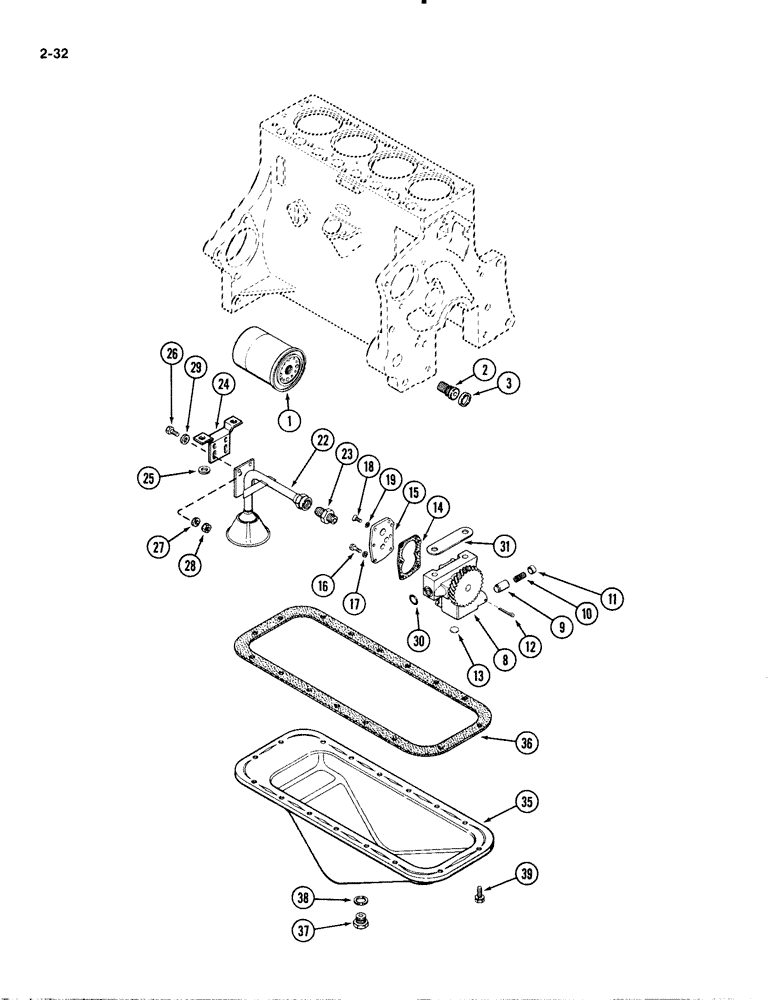

Запчасти Case 1835B (2-32) - OIL FILTER, 148B SPARK IGNITION ENGINE, OIL PUMP, OIL PAN (02) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER engine oil, oil filter, 148B spark ignition engine

1шт.

2

A153552

ADAPTER

filter, oil filter, 148B spark ignition engine

1шт.

3

41-1016

PLUG,Cup, 1"

cup type, 1 inch 25 mm, oil filter, 148B spark ignition engine

1шт.

8

A38369

PUMP

ASSEMBLY oil, Includes: Ref. 9-19, oil pump

1шт.

9

A155144

VALVE, PRESSURE RELI

VALVE relief Order A29279, oil pump

1шт.

10

G48513

VALVE SPRING

SPRING relief, oil pump

1шт.

11

A29260

RETAINER

spring, oil pump

1шт.

12

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4", oil pump

1шт.

13

A39321

PLUG,Cup, 7/16"

cup, 1/2 inch 12 mm diameter, oil pump

2шт.

14

G46852

GASKET

cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump, oil pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

flat head, 1/4 NC x 5/8 inch, oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

22

A156794

FILTER SCREEN

SCREEN ASSEMBLY suction, oil pump

1шт.

23

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR 5/8 tube 7/8-14 thread x 3/8 inch PT, oil pump

1шт.

24

A156845

BRACKET

support, screen, oil pump

1шт.

25

G35009

WASHER

flat, hardened, oil pump

2шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Oil pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Oil pump 1/4"

2шт.

28

25-104

NUT,1/4"-20, G5

Oil pump 1/4"-20, G5

2шт.

29

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch 8 x 19 x 2 mm, oil pump

2шт.

30

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

pump body, oil pump

1шт.

31

G11337

SHIM,.002" Thk

Pump to bearing cap (0.0508 mm), Oil pump .002" Thk

1шт.

31

G11338

SHIM,.005" Thk

Pump to bearing cap (0.1270 mm), Oil pump .005" Thk

1шт.

35

A36785

ENGINE OIL PAN

PAN oil, oil pan

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET pan to block Order A40710 from Fig. 2-46, Ref. No. A35271, oil pan

1шт.

37

A140222

PLUG

drain, oil pan

1шт.

38

A58608

GASKET

drain plug, oil pan

1шт.

39

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT hex, 5/16 NC x 3/4 inch Sems, oil pan

16шт.
