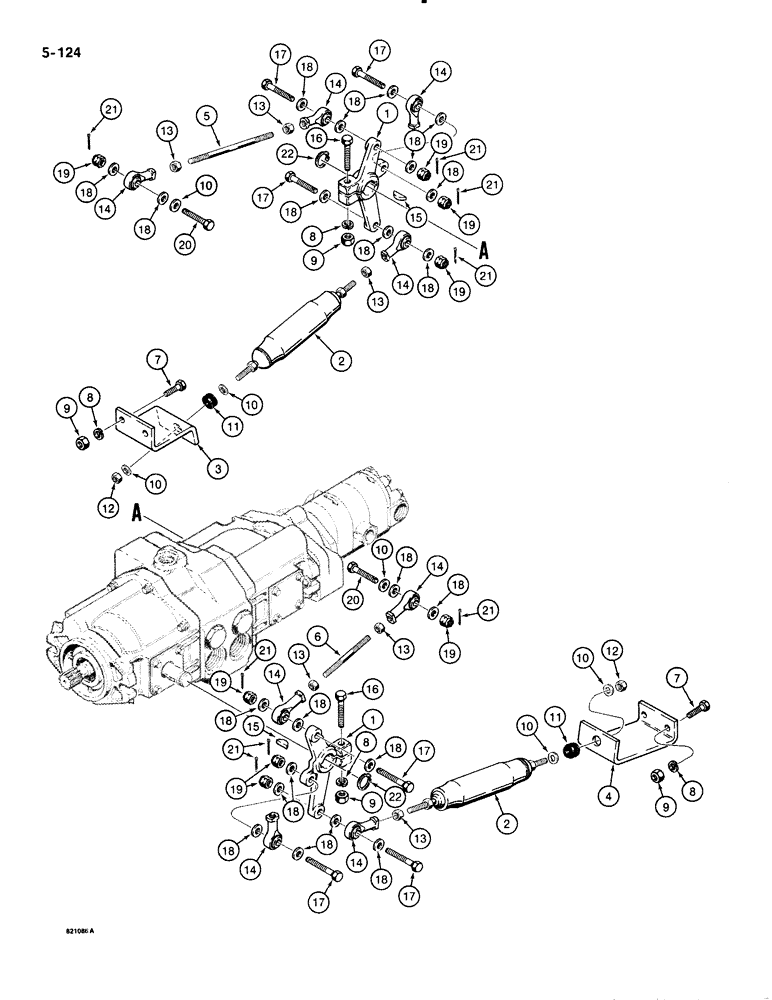

Запчасти Case 1835B (5-124) - TANDEM PUMP CONTROL LEVERS AND MOUNTING (11) - TRACKS/STEERING

1

D122749

LEVER

pump, shock absorbers to tandem pump

2шт.

2

D66538

SHOCK ABSORBER

control

2шт.

3

D94309

BRACKET

shock absorber mounting, left hand

1шт.

4

D94308

BRACKET

shock absorber mounting, right hand

1шт.

5

D94317

ROD

control, left hand

1шт.

6

D83595

ROD

control, right hand

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

10

195-525

WASHER,3/8", SAE

flat, 3/8", plated

6шт.

11

49566

GROMMET

rubber, shock absorber

2шт.

12

131-528

LOCK NUT,3/8"-24

NUT hex, self locking, 3/8" - 24 NF

2шт.

13

129-123

NUT,3/8"-24, G5

6шт.

14

S108030

JOINT

BALL JOINT female, 3/8" - 24 NF

8шт.

15

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

2шт.

16

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

17

D77933

BOLT

hex head, special, 3/8" - 16 NC x 2-1/4"

6шт.

18

D41740

WASHER

special

22шт.

19

131-52

NUT,3/8"-16, GC

NUT hex, self locking, 3/8" - 16 NC, plated

8шт.

20

D72104

BOLT

hex head, 3/8" - 16 NC x 2", special

2шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

8шт.

22

A34428

SNAP RING,#98, Ext

Ring, Snap, , lever #98, Ext

2шт.
