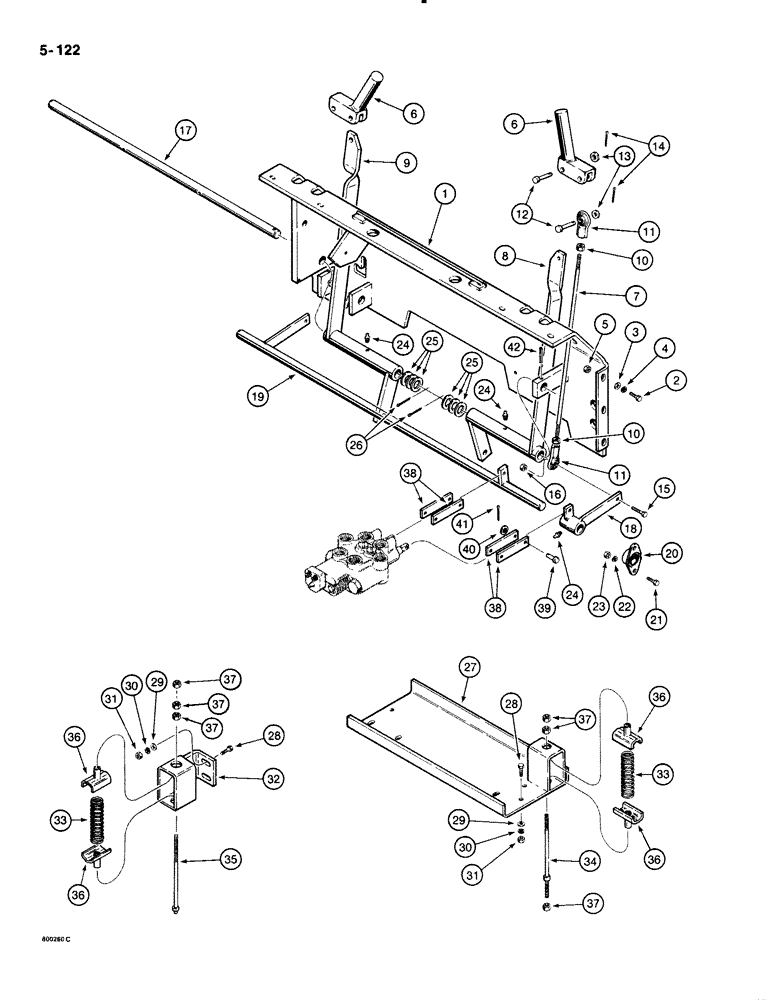

Запчасти Case 1835B (5-122) - FORWARD, REVERSE, AND LOADER CONTROLS (11) - TRACKS/STEERING

1

D124302

PANEL ASSY.

PANEL lever control housing

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

3

195-525

WASHER,3/8", SAE

flat, 3/8", plated

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

6

D65261

HANDLE

control, without horn

2шт.

6

D93384

HANDLE

control, right hand, not shown, used on models with horn, see Fig. 4-116

1шт.

7

D60525

ROD

control handle

2шт.

8

D94306

LEVER

control handle, right hand

1шт.

9

D94303

ARM

LEVER control handle, left hand

1шт.

10

129-123

NUT,3/8"-24, G5

4шт.

11

D59922

BALL JOINT

SWIVEL rod end

4шт.

12

141-12

CLEVIS PIN,3/8" x 1 5/16"

3/8"

4шт.

13

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

14

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

4шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, 3/8" - 16 NC, plated

2шт.

17

D83601

SHAFT

pump control

1шт.

18

D59933

CRANK

BELLCRANK lever

1шт.

19

D59938

SHAFT

lever, loader valve

1шт.

20

L48412

FLANGED BEARING

BEARING flange

2шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

3шт.

25

195-545

WASHER,3/4", SAE

flat, 3/4", plated

1шт.

26

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

27

D90121

PLATE

battery support and spring housing, right hand

1шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

29

195-525

WASHER,3/8", SAE

flat, 3/8", plated

5шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

32

D94304

HOUSING

spring, left hand

1шт.

33

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

centering

2шт.

34

D70310

ROD

return, right hand

1шт.

35

D94301

ROD

return, left hand

1шт.

36

D72479

SUPPORT

CUP spring

4шт.

37

129-123

NUT,3/8"-24, G5

6шт.

38

D59934

LINK

loader, Serial Range: valve-bellcrank

4шт.

39

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN link

4шт.

40

195-518

WASHER,1/4", SAE

flat, 1/4", plated

4шт.

41

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

42

138-321

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.
