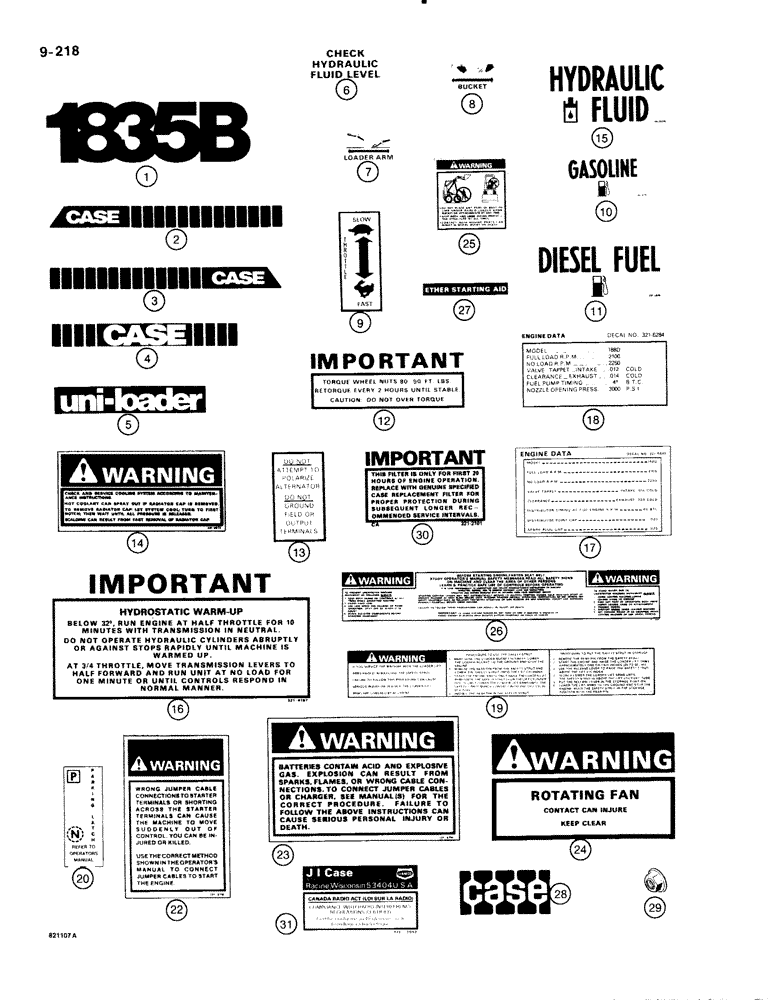

Запчасти Case 1835B (9-218) - DECALS, USED ON MODELS WITH BROWN AND TAN COLOR SCHEME (09) - CHASSIS/ATTACHMENTS

D135004

KIT decal, no longer available, order individual decals, Includes: Ref. 1-27

1шт.

1

D123971

DECAL

1835B

2шт.

2

D123968

DECAL

Case, left hand, 4", 102 mm high

1шт.

3

D124114

DECAL

Case, right hand, 4", 102 mm high

1шт.

4

D123970

DECAL

Case, 5", 127 mm high

1шт.

5

D123964

DECAL

uni-loader

2шт.

6

321-2733

DECAL

hydraulic fluid level

1шт.

7

321-5849

DECAL

loader arm

1шт.

8

321-5850

DECAL

bucket

1шт.

9

321-5847

DECAL

throttle, slow-fast

1шт.

10

321-6375

DECAL

gasoline

1шт.

11

321-6374

DECAL

diesel fuel

1шт.

12

321-2973

DECAL

Important, torque wheel nuts

2шт.

13

321-1061

DECAL

alternator

1шт.

14

321-6672

DECAL

Warning, hot coolant

1шт.

15

321-6376

DECAL

hydraulic fluid

1шт.

16

321-4197

DECAL

Important, hydrostatic warmup

1шт.

17

321-5845

DECAL

engine data, gasoline models

1шт.

18

321-6284

DECAL

engine data, diesel models

1шт.

19

321-6214

DECAL

Warning, safety strut

1шт.

20

321-5848

DECAL

parking latch

1шт.

21

D55216

PAD,2" x 9"

PAD non-slip, not shown

6шт.

22

321-6718

DECAL

Warning, jump start instructions

1шт.

23

321-6714

DECAL

Warning, battery

1шт.

24

321-6686

DECAL

Warning, rotating fan, keep clear

1шт.

25

D120889

DECAL

Warning, moving parts

1шт.

26

321-6460

DECAL

Warning, before starting engine, etc

1шт.

27

D124152

DECAL

ether starting aid, used on diesel models

1шт.

28

321-4739

EMBLEM

Case

1шт.

29

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push-on, for emblem, Ref. 28

2шт.

30

321-2101

DECAL

oil filter

1шт.

31

321-3992

DECAL

Canada Radio Act, used on gasoline models with radio interference suppression spark plugs

1шт.

32

321-4614

TAG

Do Not Operate, not shown

1шт.
