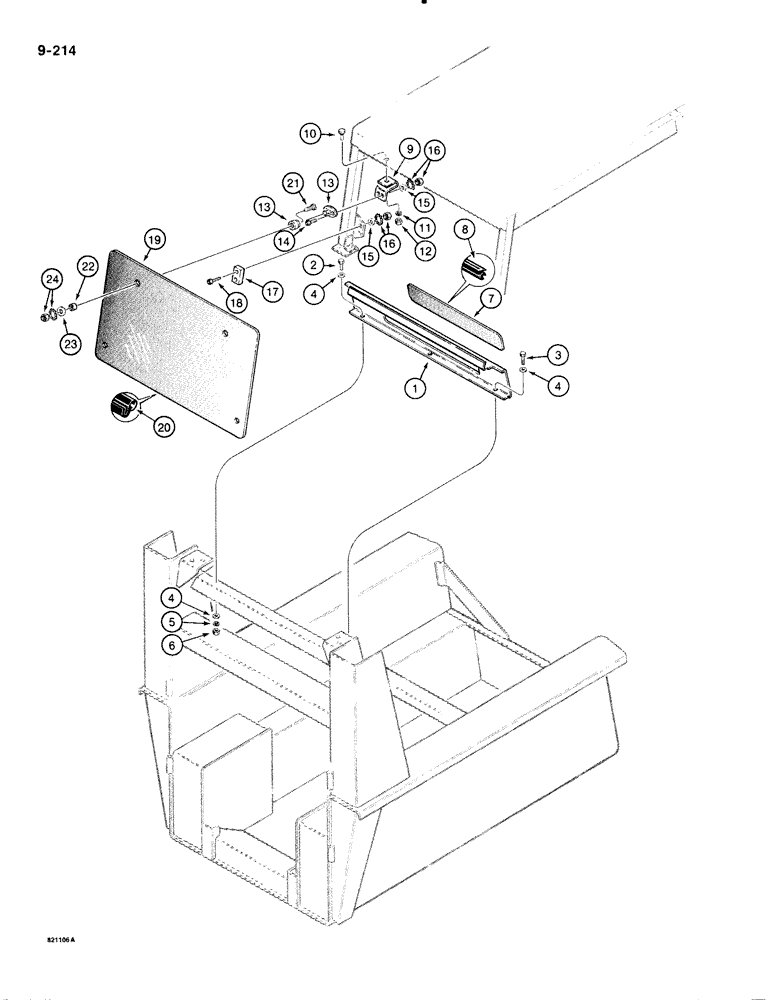

Запчасти Case 1835B (9-214) - REAR WINDOW AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D86127

GUARD

SHIELD heat, small

1шт.

2

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

3

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

4

195-521

WASHER,5/16", SAE

flat, 5/16", plated

6шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

6

9635082

NUT,5/16" - 18, Gr 5

3шт.

7

D86123

WINDOW

heat shield

1шт.

8

REF

INSTRUCTION

MOLDING heat shield window glass, 49-5/8", 1260 mm long, cut from A42677 bulk, see below

1шт.

9

D75084

BRACKET

holder, rear window

2шт.

10

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

13

F93104

HOLDER

rear window

4шт.

14

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

MACHINE SCREW flat head, slotted, No. 10 - 24 NC x 1", plated

4шт.

15

195-513

WASHER,#10

No. 10, plated

8шт.

16

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, No. 10 - 24 NC, with external tooth lockwasher, plated

8шт.

17

D75085

BUSHING

SPACER rear window

2шт.

18

171-227

SCREW,Sl Flat Hd, #10 - 24 x 1 1/4"

MACHINE SCREW flat head, slotted, No. 10 - 24 NC x 1-1/4", plated

4шт.

19

D91344

WINDOW

rear

1шт.

20

REF

INSTRUCTION

MOLDING rear window, 101-1/2", 2578 mm long, cut from F43086 bulk, see below

1шт.

21

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

MACHINE SCREW pan head slotted, 1/4" - 20 NC x 1", plated

4шт.

22

F14209

BUSHING

window holder

4шт.

23

195-2174

WASHER,13/32" x 2" x .109"

flat, 1/4", special, plated

4шт.

24

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, 1/4" - 20 NC, with external tooth lock washer

4шт.

A42677

MOLDING

bulk, 50 ft., 1524 cm long

1шт.

F43086

SEAL

MOLDING bulk, 100 ft., 3048 cm long

1шт.

If dlr is looking for a gas strut to hold up the rear window on the uniloader rops, then they must go to SIMS 508-886-6115. mjp 8/3/99

1шт.
