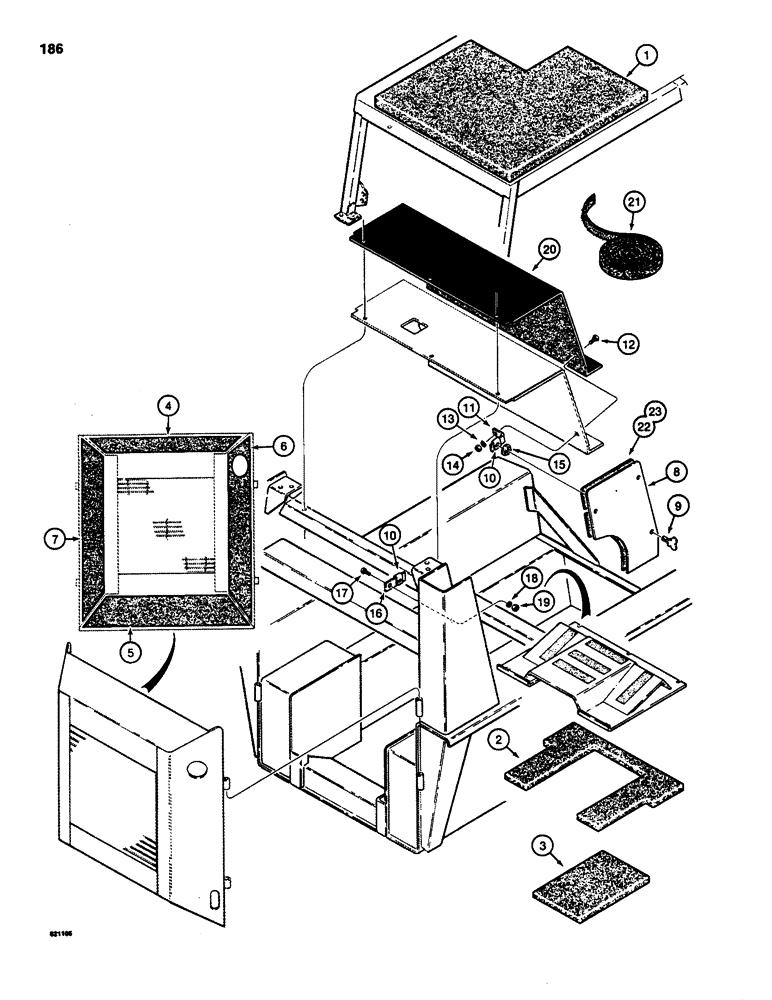

Запчасти Case 1835 (186) - NOISE CONTROL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D91363
LINING
HEADLINER ROPS, noise pad
1шт.
2
D91337
PAD
noise, floor, large
1шт.
3
D91338
PAD
noise, floor, small
1шт.
4
REF
INSTRUCTION
PAD rear door, upper, 33-1/4 inch (843 mm) x 6 inch (152 mm)
1шт.
Cut this pad from P/N D91573 Bulk Pad with adhesive.
1шт.
5
REF
INSTRUCTION
PAD rear door, lower, 35-5/16 inch (897 mm) x 9 inch (229 mm), cut from P/N D91573, see below
1шт.
Cut this pad from P/N D91573 Bulk Pad with adhesive.
1шт.
6
REF
INSTRUCTION
PAD rear door, R.H. side, 37 inch (940 mm) x 8-1/2 inch (216 mm), cut from P/N D91573, see below
1шт.
Cut this pad from P/N D91573 Bulk Pad with adhesive.
1шт.
7
REF
INSTRUCTION
PAD rear door, L.H. side, 37 inch (940 mm) x 8-1/2 inch (216 mm), cut from P/N D91573, see below
1шт.
Cut this pad from P/N D91573 Bulk Pad with adhesive.
1шт.
8
D86126
PANEL
engine, side
2шт.
9
D79733
STUD
wing
6шт.
10
D77757
HOLDER
RETAINER stud, slip-on
6шт.
11
D77246
BRACKET
TAB mounting, side panel
4шт.
12
111-202
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
13
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
14
9635082
NUT,5/16" - 18, Gr 5
4шт.
15
D77754
GROMMET
RETAINER stud, round
6шт.
16
D77906
STRIP
TAB mounting, side panel
2шт.
17
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
18
92-5
LOCK WASHER,5/16"
2шт.
19
9635082
NUT,5/16" - 18, Gr 5
hex, 5/16 inch 18 NC
2шт.
20
D94136
PAD
shield, heat, Includes: P/N 321-2996 battery decal and P/N 321-4197 instruction decal
1шт.
21
D76905
FASTENER
hook, loop, 75 feet (2286 cm) long
1шт.
22
D91814
INSULATOR
PAD R.H., side panel
1шт.
23
D91815
INSULATOR
PAD L.H., side panel
1шт.
D91573
FOAM
PAD bulk, with adhesive, 54 inch (1372 mm) x 36 inch (914 mm) x 1 inch (25 mm), use for Ref. 4 thru 7
1шт.
345-44
ADHESIVE
spray can, 23 fluid ounces, for attaching foam pads to metal surfaces
1шт.
Выбрано товаров: 29
