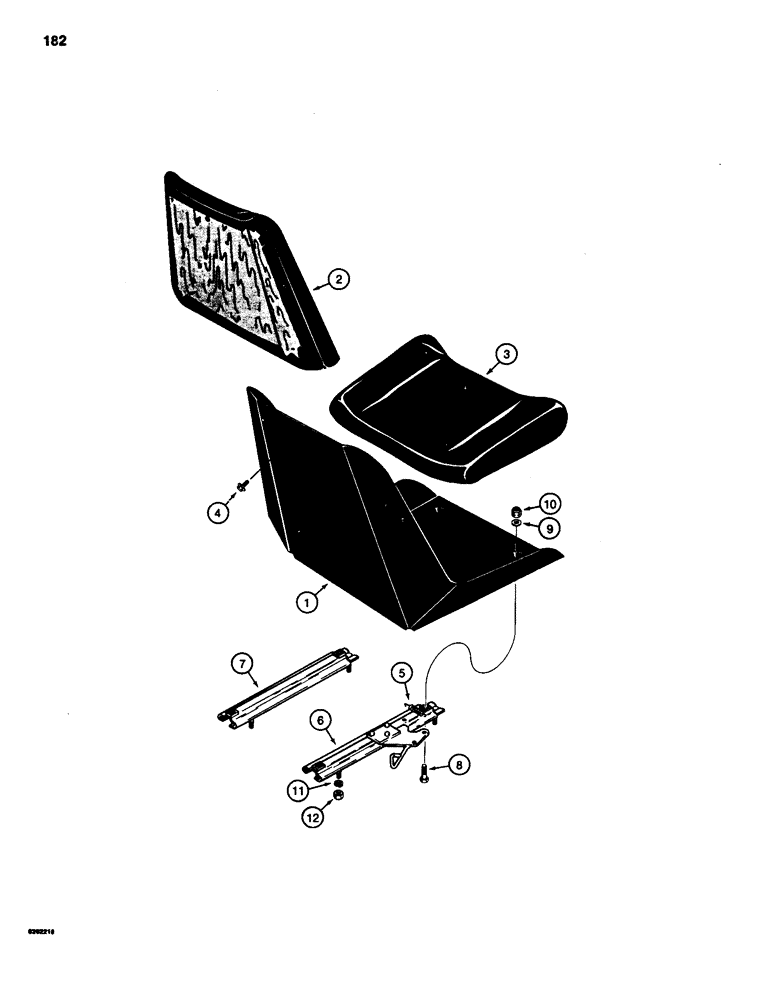

Запчасти Case 1835 (182) - STANDARD OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D56576

SEAT

ASSEMBLY, black, standard, without armrests, no longer available, order: D124516 brown seat

1шт.

D124516

SEAT

ASSEMBLY, brown, standard, without armrests, if used, Includes: Ref. 1 thru 12

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

D53583

CUSHION

BACKREST seat, black, if used

1шт.

2

N9035

CUSHION

BACKREST seat, brown, if used

1шт.

3

D53584

CUSHION

seat bottom, black, if used

1шт.

3

N9036

CUSHION

seat bottom, brown, if used

1шт.

4

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

machine, hex, head, zinc plated, with internal tooth lock washer, 1/4 inch - 20 NC x 3/4 inch

5шт.

5

D55954

SPRING

return, adjuster

1шт.

6

D53585

CUSHION

SLIDE seat, adjuster, with handle

1шт.

7

D53586

SLIDE

seat, adjuster, without handle

1шт.

8

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

flat, 5/16 inch

4шт.

10

131-31

LOCK NUT,5/16"-24, G8

NUT hex, self-locking, 5/16 inch - 24 NF

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

4шт.
