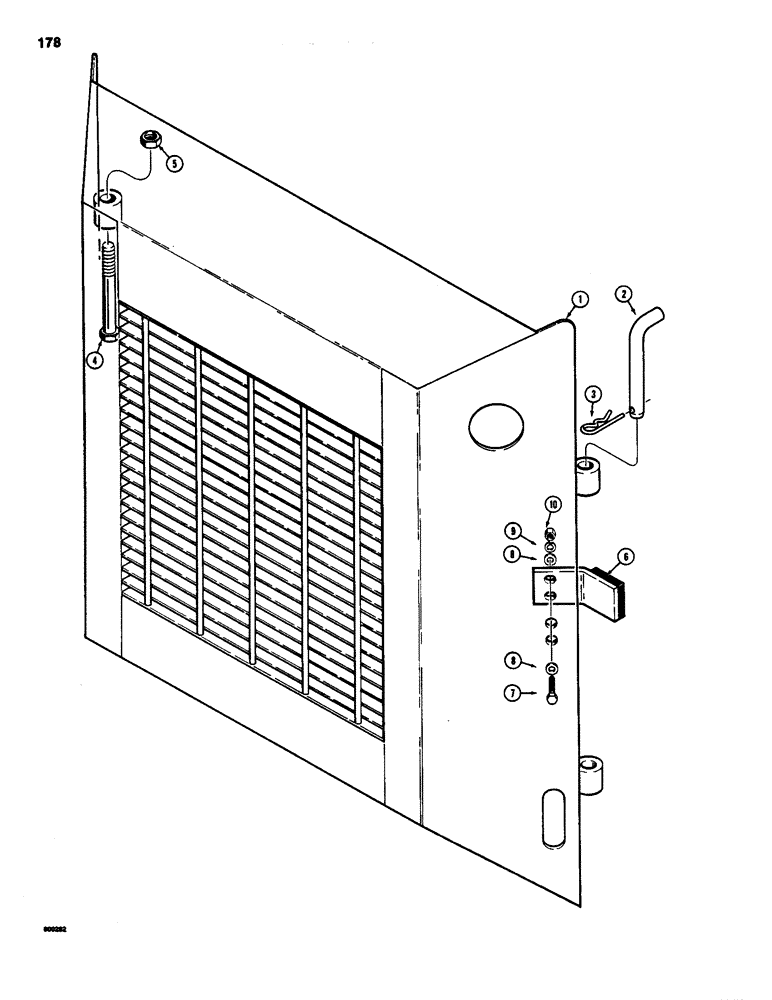

Запчасти Case 1835 (178) - REAR DOOR (09) - CHASSIS/ATTACHMENTS

1

D87361

DOOR

rear

1шт.

2

D89679

HINGE

PIN hinge

2-4шт.

3

136-164

COTTER PIN,Int, 5/16" x .120"

PIN hair, for rear door hinge pin

2-4шт.

4

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

If used Hex, 5/8"-11 x 5 1/2", G5

2шт.

5

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, , If used 5/8"-11, GB

2шт.

6

D92232

BRACKET

door, used on models with noise control

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, head, 5/16 inch - 18 NC x 1-1/4 inch

2шт.

8

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

2шт.
