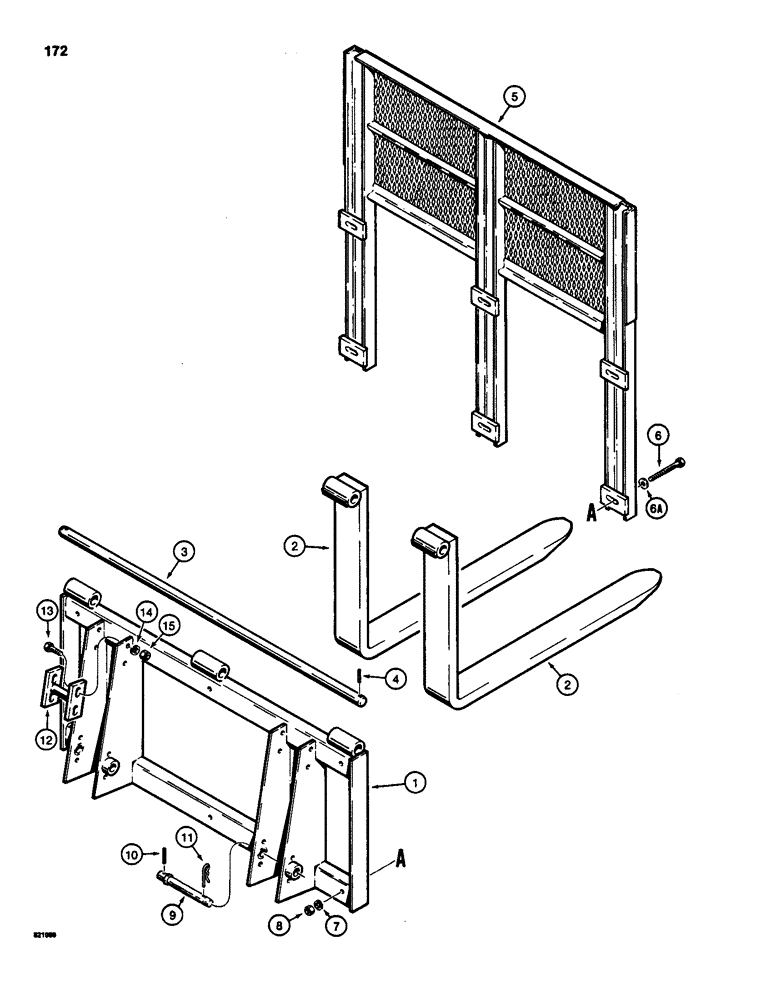

Запчасти Case 1835 (172) - PALLET FORK AND BRICK GUARD (09) - CHASSIS/ATTACHMENTS

1

D61679

FRAME

fork, pallet, pallet fork and brick guard

1шт.

2

D77683

FORK

pallet , pallet fork and brick guard

2шт.

3

T41522

ROD

fork, mounting, pallet fork and brick guard

1шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Pallet fork and brick guard 1/4" x 2", Slotted

2шт.

5

REF

INSTRUCTION

GUARD brick, machinery item, see Fig. 2 for ordering, pallet fork and brick guard

1шт.

6

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Pallet fork and brick guard Hex, 1/2"-13 x 5", G5

6шт.

6a

195-106

WASHER,1/2"

flat, plated, 1/2 inch, pallet fork and brick guard

6шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Pallet fork and brick guard 1/2"

6шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

Pallet fork and brick guard 1/2"-13, G5

6шт.

9

D132172

PIN

loader attachment bar mounting

2шт.

10

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Loader attachment bar mounting 1/4" x 2", Slotted

2шт.

11

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN hair, pin retaining, loader attachment bar mounting

2шт.

12

D61308

PIN

BRACKET upper, pallet fork frame, loader attachment bar mounting

2шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Loader attachment bar mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Loader attachment bar mounting 1/2"

8шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

Loader attachment bar mounting 1/2"-13, G5

8шт.
