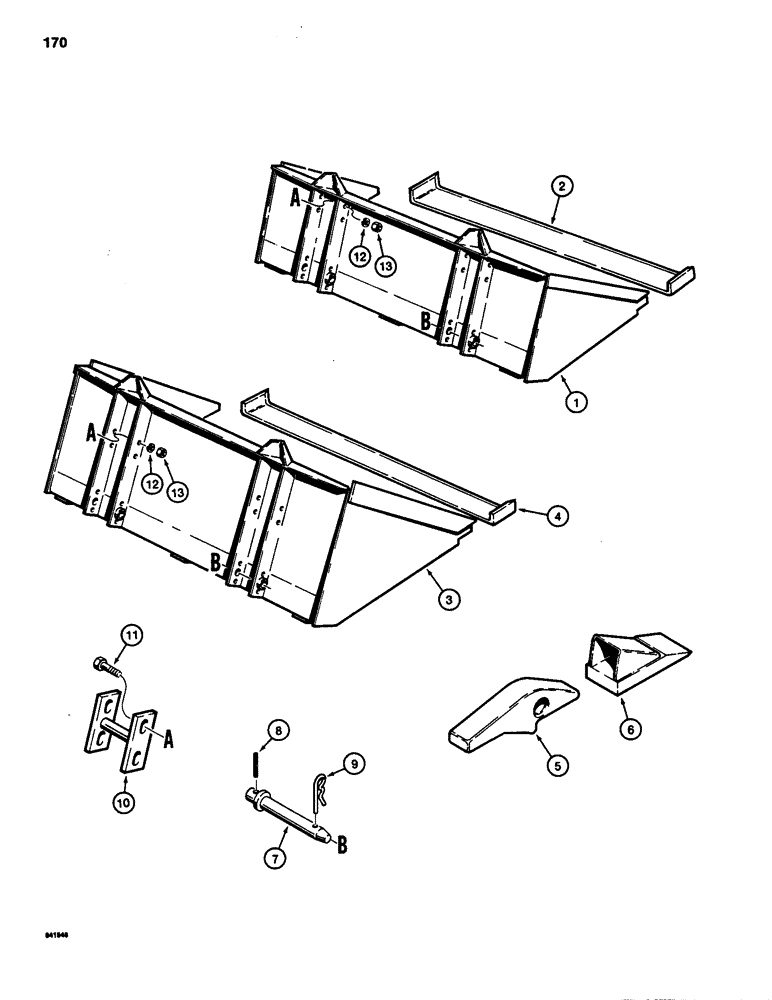

Запчасти Case 1835 (170) - BUCKETS, 6" CUTTING EDGE, DIRT BUCKET, UTILITY BUCKET, BUCKET TEETH, LOADER ATTACHMENT BAR MOUNTING (09) - CHASSIS/ATTACHMENTS

D101466

BUCKET dirt, 60 inch (1524 mm) wide, Includes: Ref. 1 and 2, machinery item, see Fig. 2 for ordering, uses 6 inch cutting edge

1шт.

See Figure 168 for buckets equipped with a 3 inch cutting edge.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 60 inch (1524 mm) wide

1шт.

2

D125853

EDGE

cutting, bucket, dirt, 6 inch

1шт.

See Figure 168 for buckets equipped with a 3 inch cutting edge.

1шт.

D101562

BUCKET utility, 60inch (1524 mm) wide, Includes: Ref. 3 and 4, machinery item, see Fig. 2 for ordering, uses 6 inch cutting edge, utility bucket

1шт.

See Figure 168 for buckets equipped with a 3 inch cutting edge.

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET utility, 60 inch (1524 mm) wide, utility bucket

1шт.

4

D125853

EDGE

cutting, bucket, utility, 6 inch, utility bucket

1шт.

See Figure 168 for buckets equipped with a 3 inch cutting edge.

1шт.

D127919

TOOTH

ASSEMBLY, bucket, Includes: Ref. 5 and 6, used only on dirt buckets with a 6 inch cutting edge

8шт.

See Figure 168 for buckets equipped with a 3 inch cutting edge.

1шт.

5

D127918

SHANK, BUCKET TOOTH

SHANK tooth, bucket teeth

1шт.

6

T41166

TOOTH

POINT tooth, bucket teeth

1шт.

7

D132172

PIN

loader, attachment bar mounting

2шт.

8

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Loader attachment bar mounting 1/4" x 2", Slotted

2шт.

9

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN hair, pin retaining, loader attachment bar mounting

2шт.

10

D61308

PIN

BRACKET upper, loader attachment bar mounting

2шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Loader attachment bar mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Loader attachment mounting 1/2"

8шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

Loader attachment bar mounting 1/2"-13, G5

8шт.
