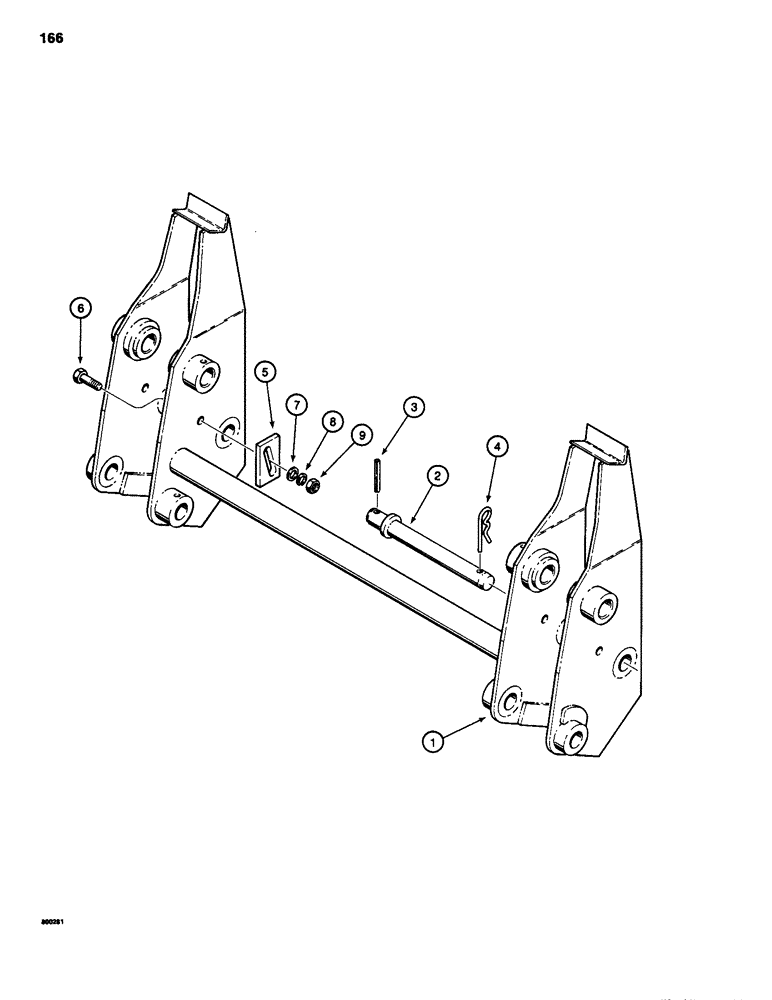

Запчасти Case 1835 (166) - LOADER ATTACHMENT BAR (09) - CHASSIS/ATTACHMENTS

1

D90661

BAR ASSY.

BAR attachment, loader

1шт.

2

D132172

PIN

bar, loader, Serial Range: attachment-bucket

2шт.

3

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

4

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN hair, for loader attachment bar pin

2шт.

5

T40044

WEDGE

STOP bucket

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

flat, plated 3/8 inch

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
