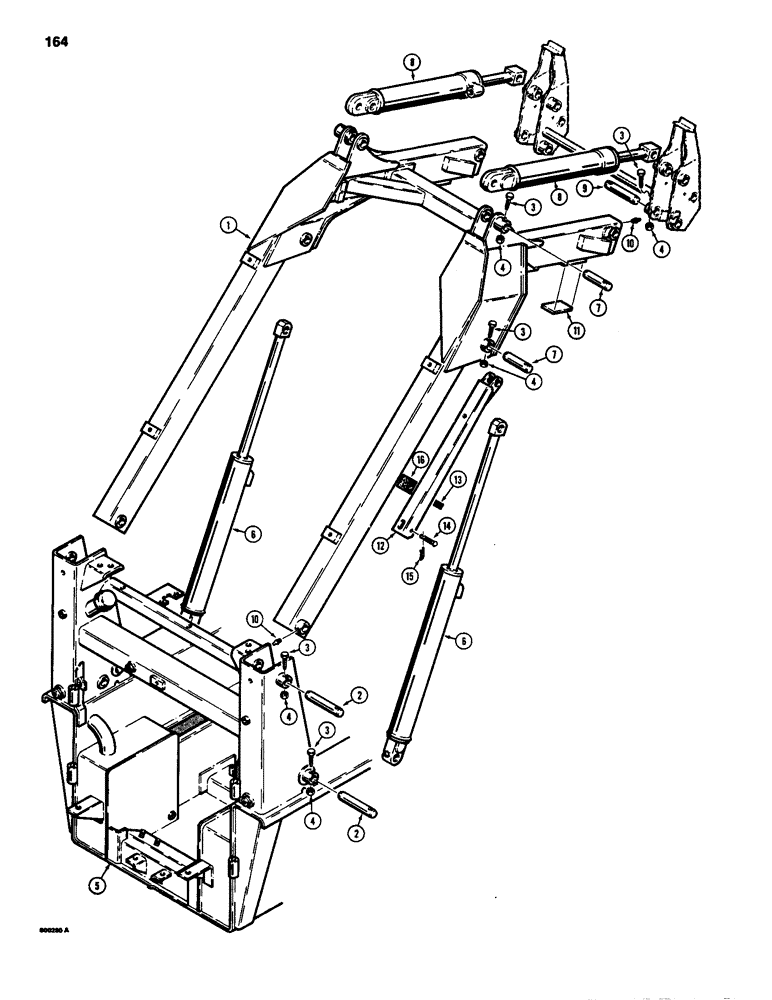

Запчасти Case 1835 (164) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

D90318

FRAME

loader, lift

1шт.

2

D57865

LARGE PIN

PIN mounting, lift frame and lift cylinder

4шт.

3

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, head, 3/8 inch - 16 NC x 2-1/4 inch

12шт.

4

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch - 16 NC

12шт.

5

REF

INSTRUCTION

CHASSIS, see Fig. 176

1шт.

6

REF

INSTRUCTION

CYLINDER lift, Fig. 158

2шт.

7

D57864

PIN

mounting, lift and bucket cylinder

4шт.

8

REF

INSTRUCTION

CYLINDER bucket, Fig. 160

2шт.

9

D55925

PIN,25.4mm OD x 165.1mm L

loader, attachment, bar

4шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 inch, NPT

4шт.

11

NSS

NOT SOLD SEPARAT

SPACER stop, lift frame

1шт.

12

D87844

STAY

STRUT support, loader

1шт.

13

D89804

STRIP

rubber, strut

2шт.

14

A30384

PIN

locking, strut

1шт.

15

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", For strut

1шт.

16

D79692

PAD

frame, loader, lift

1шт.
