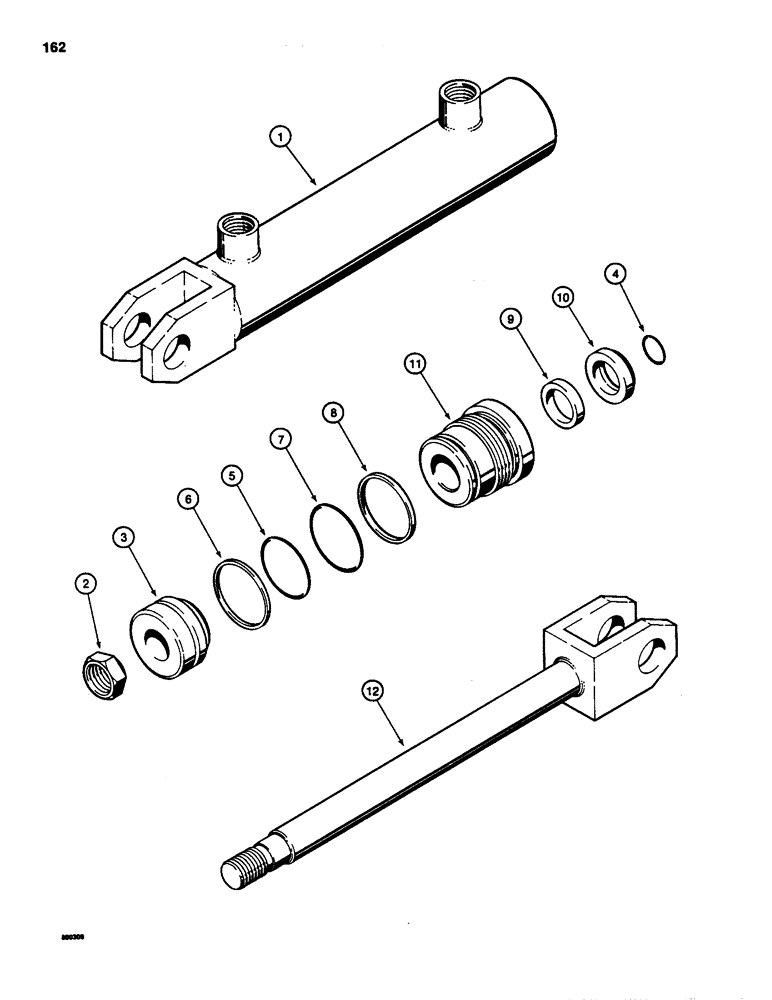

Запчасти Case 1835 (162) - D61075 GRAPPLE CYLINDER (08) - HYDRAULICS

D61075

CYLINDER

- grapple, 2 inch ID x 8 inch (50 mm ID x 203 mm) stroke, Includes: 1 thru 12

2шт.

1

D61010

TUBE

cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex, 3/4 inch - 16 NF

1шт.

3

D60996

PISTON

tube

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston, inner

1шт.

Part of seal kit P/N D61006.

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

piston, outer

1шт.

Part of seal kit P/N D61006.

1шт.

6

D60995

RING

backup, O

1шт.

Part of seal kit P/N D61006.

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland

1шт.

Part of seal kit P/N D61006.

1шт.

8

A35884

WASHER

RING gland, O

1шт.

Part of seal kit P/N D61006.

1шт.

9

D60999

WIPER SEAL

WIPER U-cup, inner gland

1шт.

Part of seal kit P/N D61006.

1шт.

10

D60997

WIPER SEAL

WIPER rod, outer gland

1шт.

Part of seal kit P/N D61006.

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61011

ROD

cylinder, 1 inch (25 mm) OD

1шт.

D61006

GASKET KIT

KIT seal, Includes: Refs. 4 - 10

1шт.
