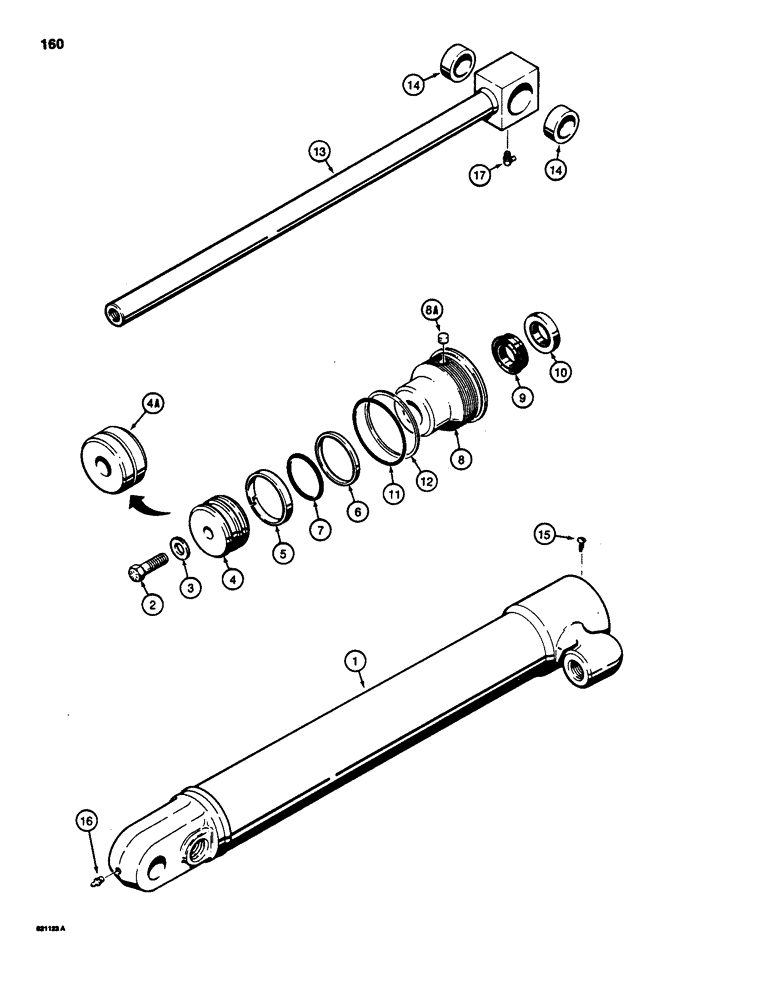

Запчасти Case 1835 (160) - G103407 LOADER BUCHKET CYLINDER (08) - HYDRAULICS

G103407

CYLINDER

ASSEMBLY, bucket, 2-1/2 feet (63 mm) ID x 15-27/32 inch (402 mm) ID stroke, Includes: Ref. 1 thru 7, P/N G103568, Ref. 13 and 15 thru 17

2шт.

118110A1R

REMAN-HYD CYLINDER

1835 CASE UNI LOADER SKID STEER LOADER, ASSEMBLY, Reman for New PN G103407

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

G103465

TUBE,63.5 mm DIA x 572.26 mm L

cylinder

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

hex head, 3/4 inch - 10 NC x 2 inch, grade 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

special

1шт.

4

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

cylinder, double groove, uses P/N G100714, no longer available, order: P/N G104098 for service

1шт.

4a

G104098

PISTON

cylinder, single groove, Replaces: P/N G33138 for service

1шт.

5

G100714

RING

wear, piston, used with P/N G33138

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston, outer

1шт.

Part of seal kit P/N G105507.

1шт.

7

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

piston, if used

1шт.

Part of seal kit P/N G105507.

1шт.

G103568

GLAND

ASSEMBLY, cylinder, Includes: Ref. 8 thru 12

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

8a

G102569

PLUG

nylon, thread locking gland, if used

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

piston, rod

1шт.

Part of piston rod seal, service option P/N G100775.

1шт.

Part of seal kit P/N G105507.

1шт.

10

D95141

WIPER SEAL

WIPER outer, piston rod

1шт.

Part of seal kit P/N G105507.

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G105507.

1шт.

12

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland, O

1шт.

Part of seal kit P/N G105507.

1шт.

13

G103408

PISTON ROD

ROD piston, 1-1/4 inch (32 mm) diameter, Includes: Ref. 14

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

15

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW self-tapping, No. 8 - 32 NC x 3/8 inch, if used, not required when nylon plug is used

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 inch, NPT

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G105507

SEAL

KIT seal, Includes: Ref. 6, 7, 9 thru 12 and P/N G104961 which is not used on this cylinder

1шт.

G100775

SEAL

piston rod, service option, severe heat or cold

1шт.
