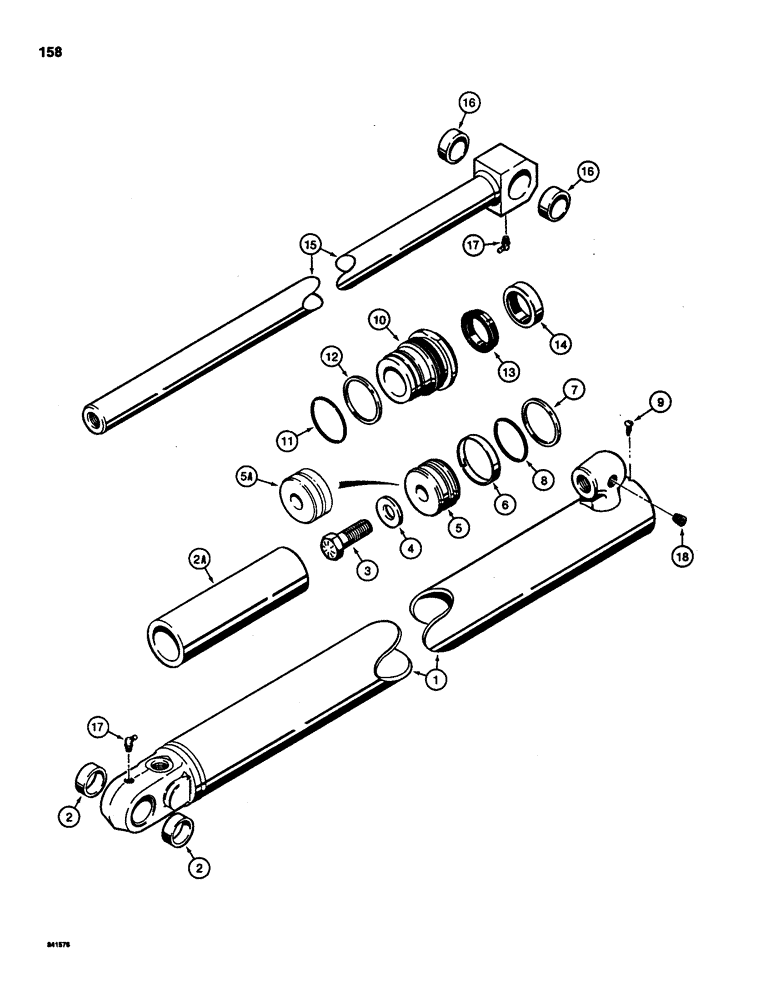

Запчасти Case 1835 (158) - G34864 LOADER LIFT CYLINDER (08) - HYDRAULICS

G34864

CYLINDER

lift, 2-1/8 inch ID x 26-3/4 inch (53 mm ID x 679 mm) stroke, Includes: Ref. 1, 2A, 3 and 4

2шт.

1

G34865

TUBE,40.03" L

cylinder, Includes: Ref. 2

1шт.

2

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

tube

2шт.

2a

G34870

SPACER

rod

1шт.

3

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

hex, head, 5/8 inch - 18 NF x 1-3/4 inch, grade 8

1шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

1шт.

5

G34817

PISTON

cylinder, double groove, uses P/N G101837, no longer available, order: P/N G104082 for service

1шт.

5a

G104082

PISTON

cylinder, single groove, Replaces: G34817 piston for service

1шт.

6

G101837

RING

wear, used with P/N G34817

1шт.

Part of seal repair kit P/N G34819.

1шт.

7

A61430

SEALING RING

RING piston, if used

1шт.

Part of seal repair kit P/N G34819.

1шт.

8

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

piston, if used

1шт.

Part of seal repair kit P/N G34819.

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW self-tapping, No. 8 - 32 NC x 3/8 inch

1шт.

G34820

CYLINDER END CAP

GLAND ASSEMBLY, repair; No longer sold as an assembly, order G34816 gland and G34819 seal kit

1шт.

10

G34816

CYLINDER END CAP

GLAND cylinder

1шт.

11

S6499

O-RING,1.925" ID x 2.131" OD x 0.103"

gland

1шт.

Part of seal repair kit P/N G34819.

1шт.

12

A62070

RING

BACKUP RING O-ring

1шт.

Part of seal repair kit P/N G34819.

1шт.

13

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

rod

1шт.

Part of seal repair kit P/N G34819.

1шт.

Part of piston rod seal, service option P/N G100775.

1шт.

14

D95141

WIPER SEAL

WIPER rod

1шт.

Part of seal repair kit P/N G34819.

1шт.

15

G34868

ROD

piston, 1-1/4 inch (32 mm) diameter

1шт.

16

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod

2шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

hex, head, 1/8 inch pipe

1шт.

G34819

GASKET KIT

KIT seal, repair, Includes: Refs. 6 - 8, and 11 - 14

1шт.

G100775

SEAL

piston, rod, service option, extreme heat or cold, Includes: Ref. 13

1шт.
