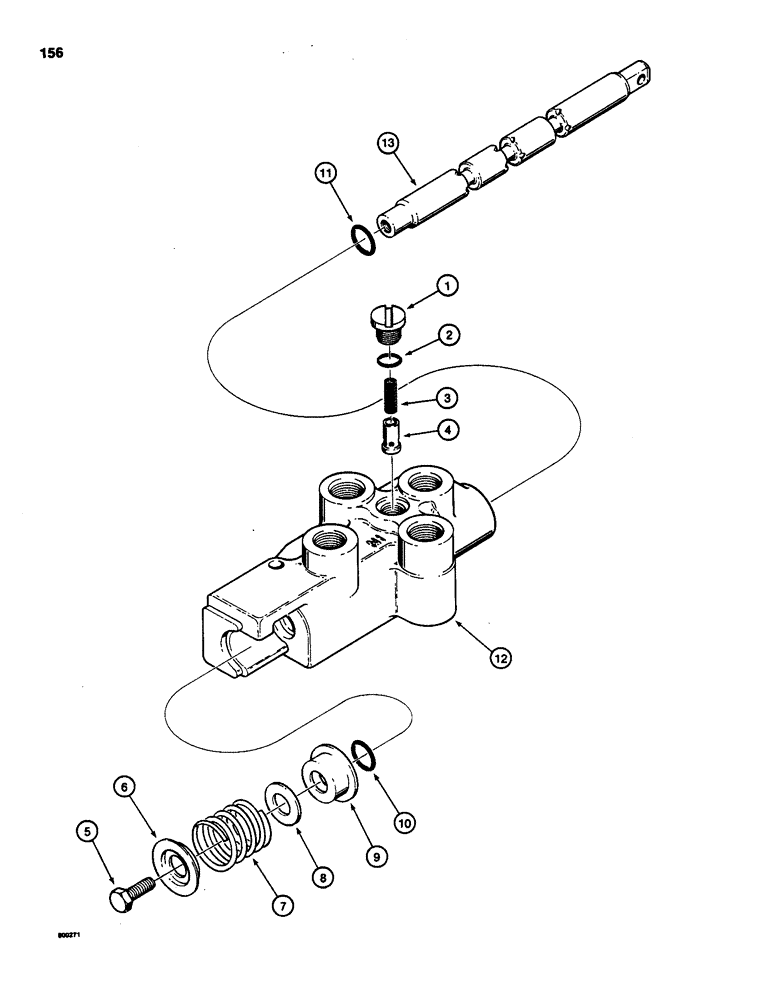

Запчасти Case 1835 (156) - D64670 AUXILIARY CONTROL VALVE (08) - HYDRAULICS

D64670

VALVE

auxiliary, hydraulic, control, Cessna No. 30511-AAK, Includes: P/N H47506 and Ref. 3 thru 13

1шт.

H47506

PLUG

ASSEMBLY, valve, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

2

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug

1шт.

3

FH730374

SPRING

check

1шт.

4

FH730366

PLUNGER

check

1шт.

5

H138248

SCREW,1/4" - 20 x 7/16"

BOLT special

1шт.

6

F59116

WASHER

RETAINER spring

1шт.

7

H220517

SPRING

spool

1шт.

8

H746164

WASHER

special

1шт.

9

H52902

CAP

RETAINER spring

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

retainer

1шт.

11

F37887

O-RING

spool

1шт.

12

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.
