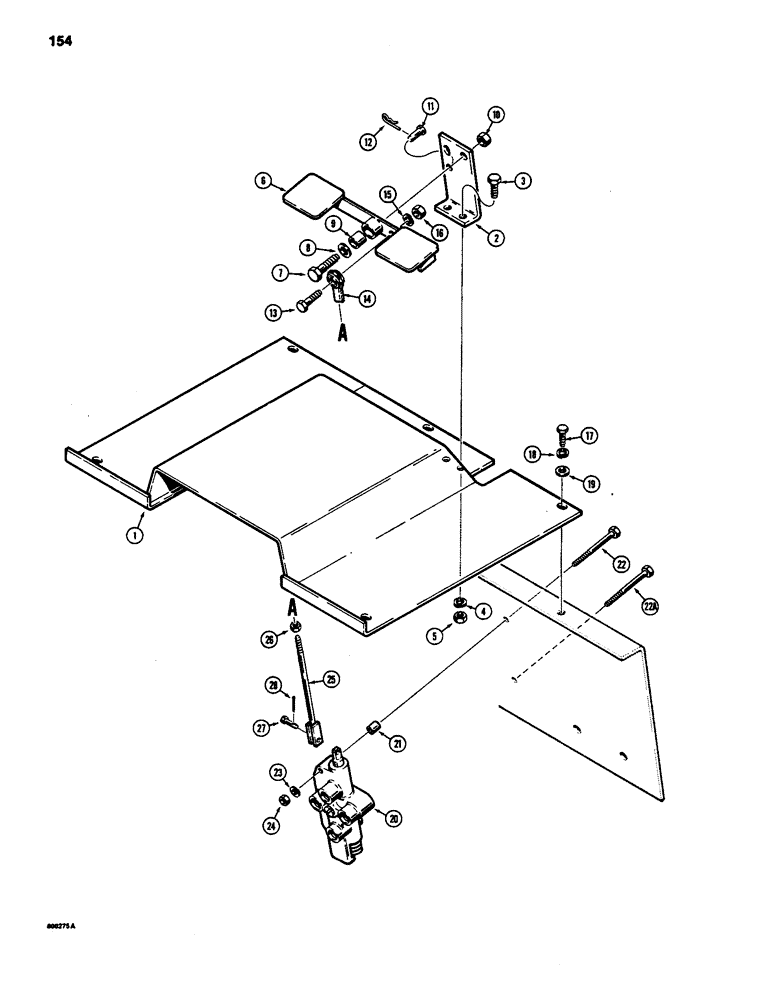

Запчасти Case 1835 (154) - AUXILIARY HYDRAULIC CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

D91448

PLATE

floor

1шт.

2

D89490

BRACKET

pedal mounting

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

hex 3/8 inch - 16 NC

2шт.

6

D60607

PEDAL

control, valve

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

195-33

WASHER,1/2"

flat, 1/2 inch

1шт.

9

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

pedal

1шт.

10

131-654

LOCK NUT,1/2"-13, GB

NUT hex, self locking, 1/2 inch - 13 NC

1шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

12

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, head, 3/8 inch - 16 NC x 1-1/2 inch

1шт.

14

D59922

BALL JOINT

JOINT ball, female, rod end

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

1шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

195-25

WASHER,3/8"

flat, 5/16 inch

4шт.

20

D64670

VALVE

auxiliary, Fig. 156

1шт.

21

D95741

BUSHING

SPACER support, auxiliary, valve

2шт.

22

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

22a

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

hex, head, 5/16 inch - 18 NC x 3-3/4 inch

1шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

2шт.

25

D89491

ROD

control, auxiliary, valve

1шт.

26

25-116

NUT,Hex, 3/8"-24, G5

hex, 5/16 inch - 18 NC

1шт.

27

F13790

PIN

clevis, auxiliary, valve

1шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , For clevis pin 1/16" x 1/2"

1шт.
