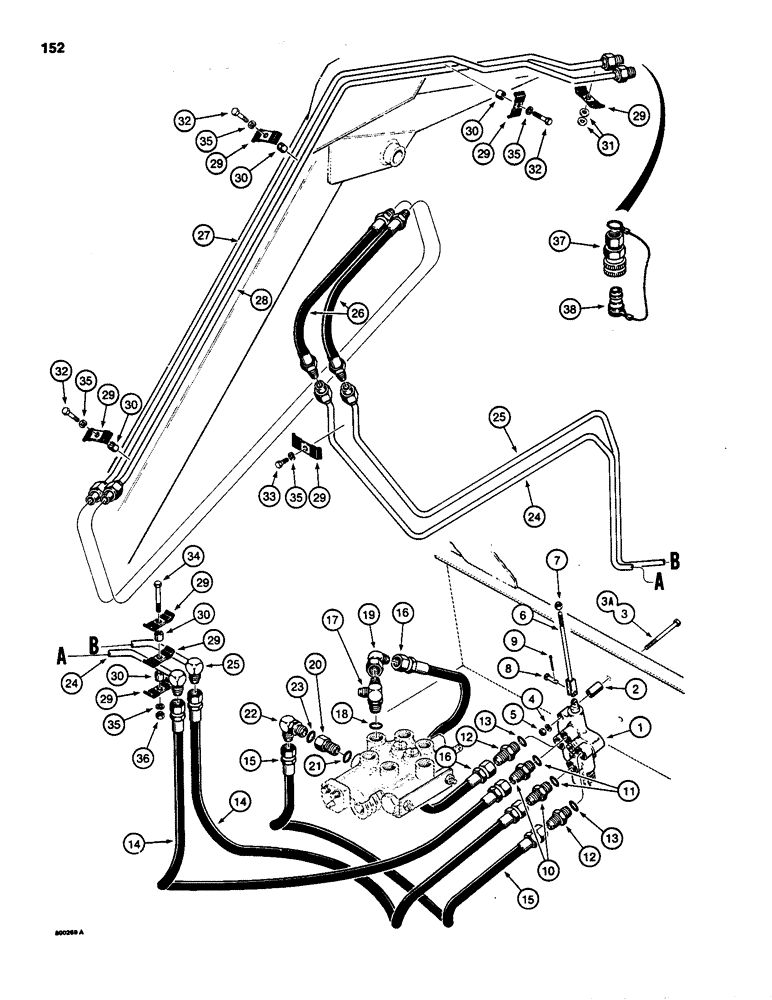

Запчасти Case 1835 (152) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D64670

VALVE

control, auxiliary, Fig. 156

1шт.

2

D95741

BUSHING

SPACER support, auxiliary, control, valve

2шт.

3

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", Upper

1шт.

3a

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

hex, head, 5/16 inch - 18 NC x 3-3/4 inch, lower

1шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

2шт.

6

D89491

ROD

control, auxiliary, control, valve

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 inch - 24 NF

1шт.

8

F13790

PIN

clevis, auxiliary, control, valve

1шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, Male 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, male

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

14

D36129

HOSE ASSY.

HOSE to auxiliary hydraulic tubes, 57 inch (1448 mm) long

2шт.

15

R22412

HOSE

loader, control, valve to auxiliary control valve, 49 inch (1259 mm) long

1шт.

16

D91258

HOSE

return, auxiliary, control, valve to loader control valve, 45 inch (1150 mm) long

1шт.

17

D61606

TEE

at loader, control valve

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Tee

1шт.

19

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

adjustable, 45 degree

1шт.

20

D61608

SLEEVE

power, beyond

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Sleeve

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

24

D91246

HYD TUBE,0.5" OD

TUBE from top valve port

1шт.

25

D91248

HYD TUBE,0.5" OD

TUBE from bottom valve port

1шт.

26

D61484

HOSE

to loader arm tubes, 29 inch (737 mm) long

2шт.

27

D61590

TUBE

from top valve port

1шт.

28

D61592

TUBE

from bottom valve port

1шт.

29

D33316

CLAMP

tube

8шт.

30

D33551

BUSHING

SPACER tube, clamp

5шт.

31

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

32

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, head, 5/16 inch - 18 NC X 1-1/4 inch

3шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

35

92-5

LOCK WASHER,5/16"

5шт.

36

9635082

NUT,5/16" - 18, Gr 5

hex, head, 5/16 inch - 18 NC

1шт.

37

D60707

COUPLING, BREAK AWAY

COUPLING female, quick, disconnect

2шт.

38

D62402

PLUG

quick, disconnect

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
