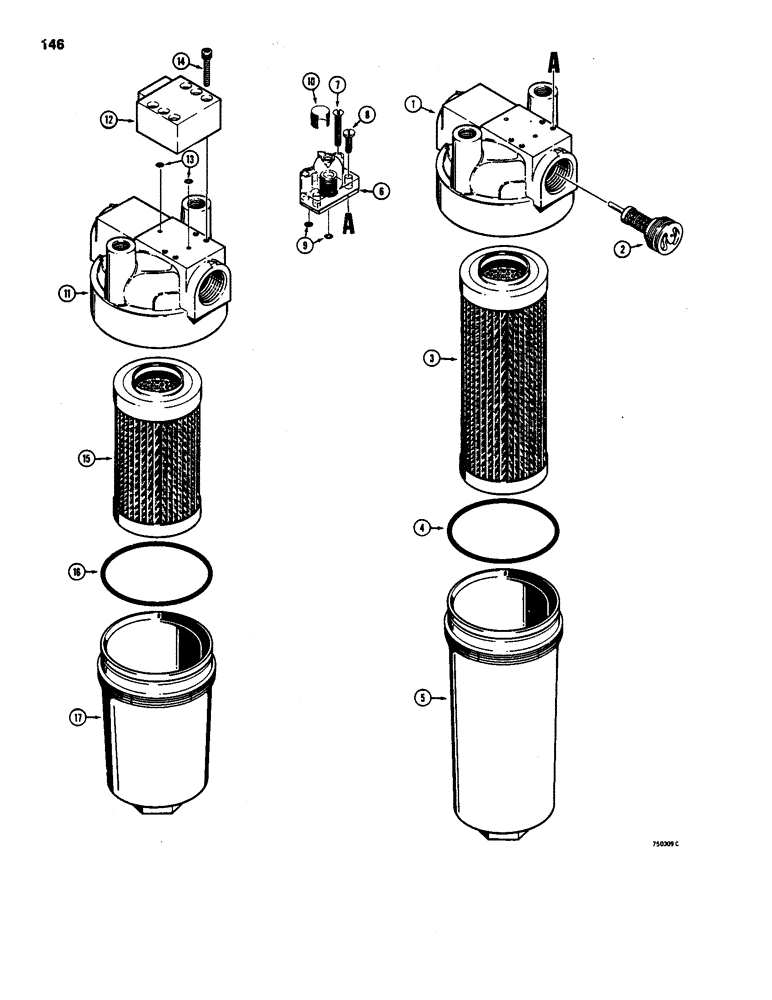

Запчасти Case 1835 (146) - HYDRAULIC OIL FILTERS, D 64076 FILTER (08) - HYDRAULICS

D64076

FILTER

oil, return, Includes: P/N D65119, D61950, D61948, D65121

1шт.

D65119

FILTER, ENGINE OIL

HEAD ASSEMBLY, filter, Includes: Ref. 1 and 2, uses D64076

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, uses D64076

1шт.

2

D58199

VALVE

bypass, D64076 filter

1шт.

D61950

FILTER, ELEMENT

KIT element, Incudes: Ref. 3 and 4, D64076 filter

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT filter, Marvel No. M3467-5110, D64076 filter

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL body, D64076 filter

1шт.

5

D61948

HOUSING

BODY filter, uses D64076

1шт.

D65121

GAUGE

color, filter, condition, indicator, Includes: Ref. 6 thru 10, D64076 filter

1шт.

6

NSS

NOT SOLD SEPARAT

GAUGE color, D64076 filter

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW long, D64076 filter

2шт.

8

NSS

NOT SOLD SEPARAT

SCREW short, D64076 filter

2шт.

9

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

gauge, D64076 filter

2шт.

10

NSS

NOT SOLD SEPARAT

INDICATOR paper, D64076 filter

1шт.

D69097

FILTER

oil, charging, Includes: Ref. 11 thru 14, P/N D71352, and Ref.17

1шт.

11

D71349

HEAD (CYLINDER)

HEAD filter, uses D69097 oil filter

1шт.

12

D71350

SENDER UNIT

UNIT sending, filter, indicator, D69097 oil filter

1шт.

13

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

unit, sending, D69097 oil filter

2шт.

14

165-25

HEX SOC SCREW,#10 - 24 x 1"

SCREW hex, socket, head, No. 10 - 24 NC x 1 inch, D69097 oil filter

2шт.

D71352

FILTER, ELEMENT

KIT element, D69097 oil filter

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT filter, Marvel No. 529206-5210, D69097 oil filter

1шт.

16

D71354

SEAL

O-RING body, D690097 oil filter

1шт.

17

D71353

HOUSING

BODY filter, uses D69097 oil filter

1шт.
