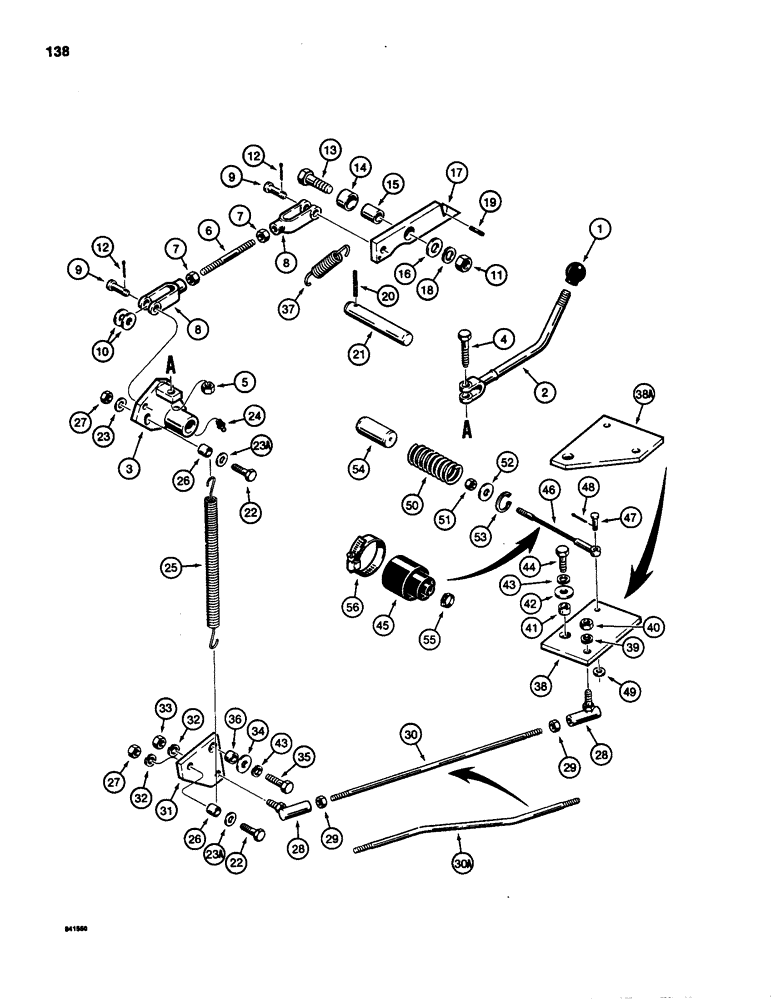

Запчасти Case 1835 (138) - PARKING LATCH (07) - BRAKES

1

D59912

KNOB

parking, lever, control

1шт.

2

D90953

LEVER

parking

1шт.

3

D91050

DIPPER

BELLCRANK lever

1шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

5

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self-locking, 3/8 inch - 16 NC

1шт.

6

D90862

ROD

brake

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 inch - 24 NF

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS rod

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

10

95-6

WASHER,3/8"

flat, 3/8 inch

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

11

25-108

NUT,1/2"-13, G5

hex, 1/2 - 13 NC

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

12

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", clevis pin

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex, head, 1/2 inch - 13 NC x 2-1/4 inch

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

14

D90884

SPACER

control, latch, large

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

15

D90602

TUBE

SPACER control, latch, small

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

16

195-33

WASHER,1/2"

flat, 1/2 inch

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

17

D90618

LATCH

control

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

19

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Control, latch 1/4" x 3/4", Slotted

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

20

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Rod 3/16" x 2", Slotted

1шт.

21

D90619

PIN

ROD roll, pin

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

23

195-25

WASHER,3/8"

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

23a

195-25

WASHER,3/8"

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING, straight, 1/8 inch, NPT

1шт.

25

D122968

SPRING

latch control

1шт.

26

D33551

BUSHING

SPACER pivot plate

2шт.

27

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self-locking, 3/8 inch - 16 NC, used on models with bent ball joint control rod (item 30A)

2шт.

28

D38296

JOINT

ball, rod

2шт.

29

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 - 24 NF

2шт.

30

D91046

STEM

ROD ball, joint, straight

1шт.

30a

D123221

ROD

ball, joint, bent, if used

1шт.

31

D91048

PLATE

pivot, rear

1шт.

32

92-6

LOCK WASHER,3/8"

2шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 inch - 24 NF

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

33

131-5

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch - 16 NC

1шт.

Used on models with bent ball joint control rod Ref. 30A

1шт.

34

D41740

WASHER

flat, 3/8 inch, special

1шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, head, 3/8 inch - 16 NC x 1-1/4 inch

1шт.

36

G11271

SPACER

plate

1шт.

37

A36199

SPRING

latch, control

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

38

D91047

PLATE pivot, front

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

38a

D123232

PLATE

pivot, front, beveled, if used

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

40

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 inch - 24 NF

1шт.

Used only on units with the straight rod, item 30 and the rectangular front pivot plate, item 38.

1шт.

40

131-5

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch - 16 NC

1шт.

Used on models with bent ball joint control rod Ref. 30A

1шт.

41

G11271

SPACER

SPACE plate

1шт.

42

D41740

WASHER

flat, 3/8 inch, special

1шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

45

D91150

BOOT

parking, brake

1шт.

46

D64143

CABLE

parking, brake

1шт.

47

141-2

CLEVIS PIN,1/4" x .770"

PIN clevis, cable

1шт.

48

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Clevis pin 1/16" x 1/2"

1шт.

49

195-18

WASHER,1/4"

flat, 1/4 inch

1шт.

50

D91040

SPRING

brake, latch

1шт.

51

25-104

NUT,1/4"-20, G5

1шт.

52

95-6

WASHER,3/8"

flat, 3/8 inch

1шт.

53

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

1шт.

54

D64228

PIN,25.45mm OD x 53.34mm L

brake latch

1шт.

55

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP small

1шт.

56

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.
