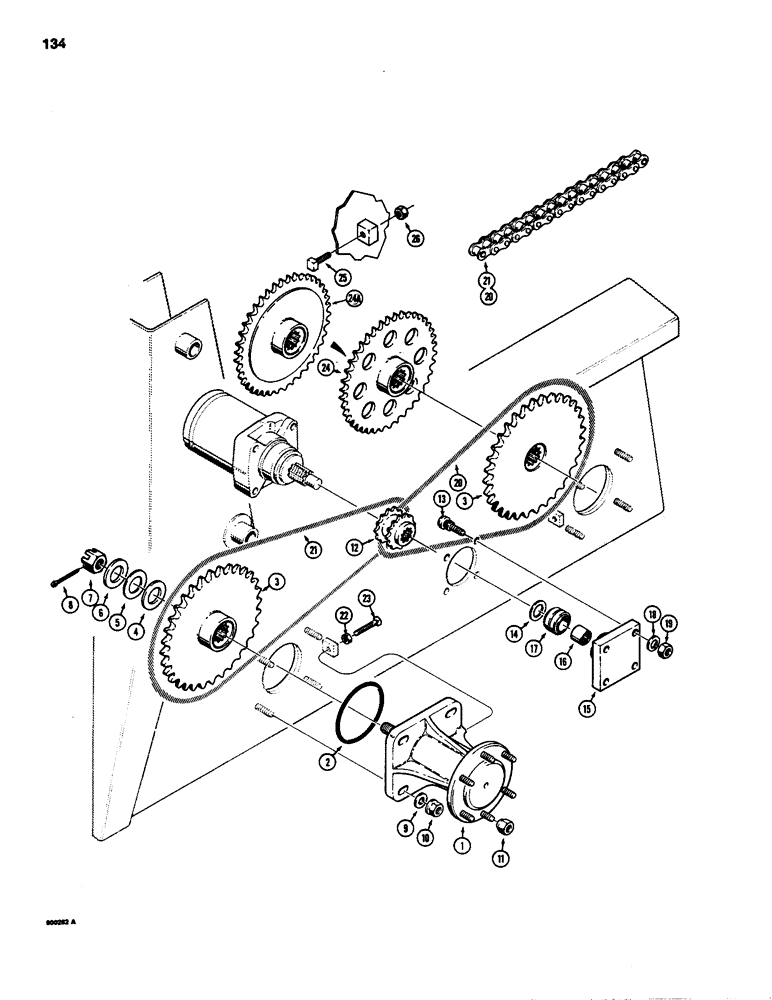

Запчасти Case 1835 (134) - DRIVE CHAIN AND GEARS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
AXLE ASSEMBLY, Fig. 136
4шт.
2
D36183
O-RING,5.109" ID x 5.387" OD
axle
4шт.
3
REF
INSTRUCTION
SPROCKET axle, production type, for service order item 24 or 24A
3шт.
4
T40258
WASHER
special
4шт.
5
T40257
WASHER
special
1шт.
6
D53273
WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk
flat, 7/8 inch, special
1шт.
7
25-1314
SLOTTED NUT,7/8"-14, G5
NUT castle, hex, 7/8 inch - 14 NF
4шт.
8
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
4шт.
9
D73296
WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk
special
16шт.
10
131-915
FLANGE NUT,Flg, 1/2"-20, G5
hex, self-locking, 1/2 inch - 20 NF
16шт.
11
F23214
WHEEL NUT
special, wheel
24шт.
12
D82637
DRIVE SPROCKET
SPROCKET drive
2шт.
13
D91709
WHEEL BOLT
BOLT special, may be welded to frame on some models
8шт.
14
G46081
BEARING WASHER
WASHER thrust, bushing
2шт.
D89378
HOUSING
ASSEMBLY, bearing, Includes: Ref. 15 thru 17
2шт.
15
NSS
NOT SOLD SEPARAT
HOUSING bearing
1шт.
16
D92999
NEEDLE
BEARING housing
1шт.
17
D46620
BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm
BUSHING self-aligning
1шт.
Replaced by P/N D36203.
1шт.
18
92-8
LOCK WASHER,1/2"
8шт.
19
129-545
NUT,1/2"-20, G8
8шт.
20
D120022
CHAIN (CE),60 H, 70 Links x 19.05mm = 1333.5mm
CHAIN drive, 70 pitch, endless
2шт.
21
D120023
CHAIN (CE),60 HT, 84 Links x 19.05mm = 1600.2mm
CHAIN drive, 84 pitch, endless
2шт.
22
25-106
NUT,3/8"-16, G5
hex, 3/8 inch - 16 NC
3шт.
23
85-636
SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"
SCREW set, square head, 3/8 inch - 16 NC x 2-1/4 inch
3шт.
24
D88624
DRIVE SPROCKET
SPROCKET parking latch and service replacement for Ref. 3, does not have disc welded on, if used
1шт.
24a
D123235
DRIVE SPROCKET
SPROCKET parking latch and service replacement, has disc welded on, if used
1шт.
25
85-848
SET SCREW,Sq Hd, 1/2" - 13 x 3"
SCREW set, square, head, 1/2 inch - 13 NC x 3 inch
1шт.
26
25-108
NUT,1/2"-13, G5
hex, 1/2 inch - 13 NC
1шт.
