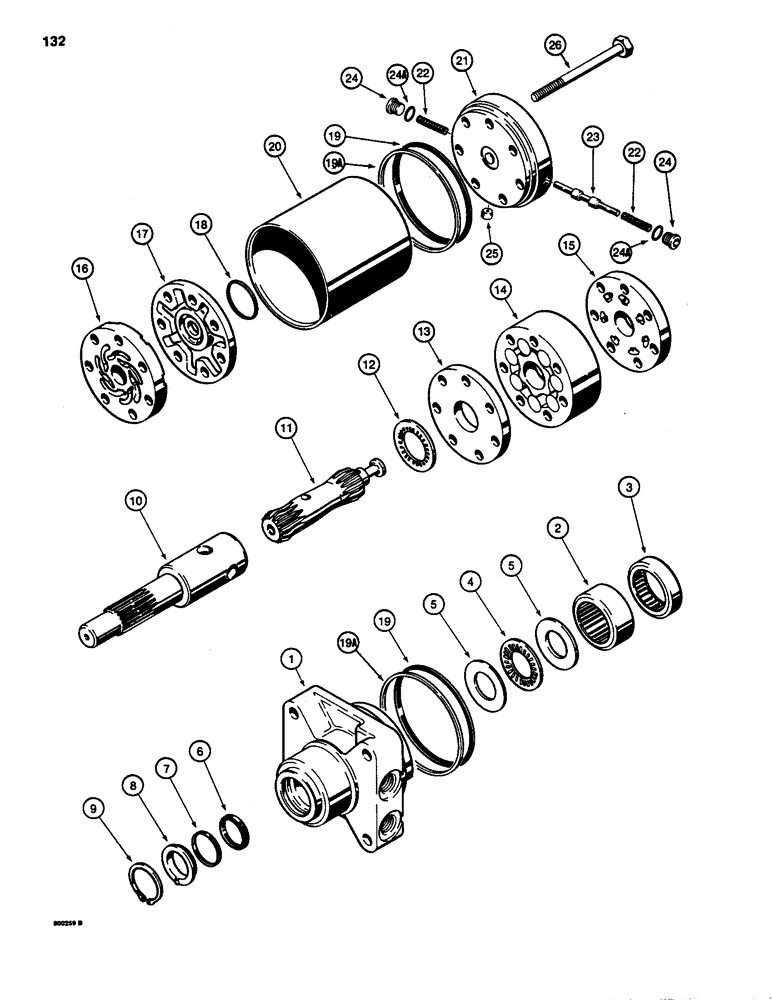

Запчасти Case 1835 (132) - D127145 HYDROSTATIC DRIVE MOTOR (06) - POWER TRAIN

D127145

MOTOR, HYDRAULIC

MOTOR hydrostatic, drive, Includes: P/N 7603, Ref. 6 thru 20, P/N N6972 and Ref. 26

1шт.

D137338R

REMAN-HYD MOTOR

1835, Reman For New P/N D127145

1шт.

D137338C

CORE-HYDRAULIC PUMP

Return Number

1шт.

N7603

HOUSING

ASSEMBLY, motor, Includes: Ref. 1 thru 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

D60862

NEEDLE BEARING

BEARING needle, large

1шт.

3

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING needle, small

1шт.

4

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

BEARING thrust, shaft

1шт.

5

D60861

WASHER

thrust, bearing

2шт.

6

N9703

SEAL

shaft, inner

1шт.

Part of seal kit P/N N6972.

1шт.

7

N9516

SHIM

SEAL shaft, outer

1шт.

Part of seal kit P/N N6972.

1шт.

8

N6702

RING

backup, seal

1шт.

Part of seal kit P/N N6972.

1шт.

9

N9702

RING, SNAP

RING retaining, backup, ring

1шт.

Part of seal kit P/N N6972.

1шт.

10

N6703

SHAFT

coupling

1шт.

11

N6704

LINK

drive

1шт.

12

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

BEARING thrust, link

1шт.

13

N6705

PLATE

wear

1шт.

14

N6706

KIT

ROTOR drive, motor

1шт.

15

N6707

PLATE

manifold

1шт.

16

N6708

MANIFOLD

plate

1шт.

17

D60857

COMMUTATOR

includes: center ring

1шт.

18

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

seal, small

1шт.

Part of seal kit P/N N6972.

1шт.

19

N9509

SEALING RING

RING seal, large

2шт.

Part of seal kit P/N N6972.

1шт.

19a

N8747

RING

backup, teflon, seal

2шт.

Part of seal kit P/N N6972.

1шт.

20

N6710

SLEEVE

motor

1шт.

N8441

CAP

ASSEMBLY, end, Includes: Ref. 21 thru 25

1шт.

21

NSS

NOT SOLD SEPARAT

CAP end

1шт.

22

N8442

SPRING

cap, end

2шт.

23

N7783

VALVE

cap, end

1шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

Cap, end, Incl Ref 24A Hex Soc, 7/16"-20 ORB

2шт.

24a

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Plug

1шт.

25

N7760

FITTING

PLUG cap, orifice, end

1шт.

26

D121739

BOLT

special

7шт.

N6972

SEAL KIT

KIT seal, Includes: Refs. 6 thru 9, 18, 19 and 19A; N6972 Seal Kit Used to Contain Seals for a 1-1/4" and a 1-1/2" Motor Shaft; Now it Only Contains the Seals for 1-1/2"; Must Order Seal Kit 174397C2 for the 1-1/4" Shaft

1шт.
