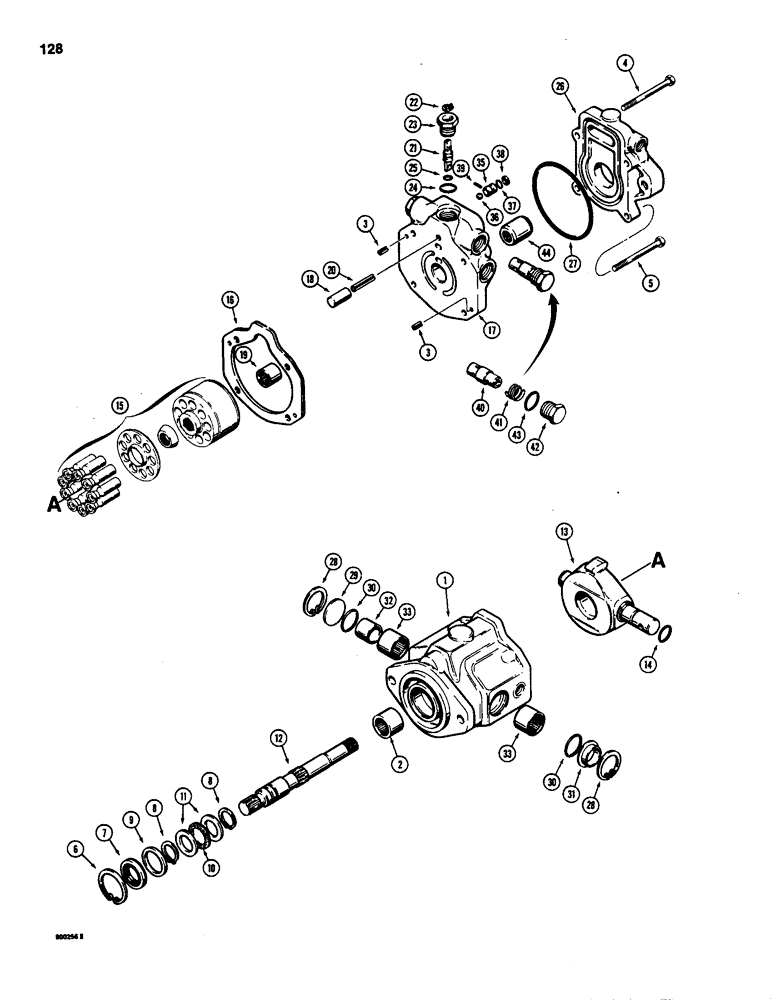

Запчасти Case 1835 (128) - N7716 VARIABLE DISPLACEMENT PUMP (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
NR7716
REMAN-HYD PUMP
PUMP ASSEMBLY piston, variable displacement, right-hand drive remanufactured
1шт.
Component parts listed in this figure do not apply to the remanufactured assembly.
1шт.
NC7716
CORE-HYDRAULIC PUMP
RETURN NUMBER
1шт.
Use this P/N NC7716 to return core for credit when using a remanufactured assembly.
1шт.
N7716
PUMP
ASSEMBLY, piston, newe, variable displacement, right-hand drive, Cessna No. 70442DCV, Includes: Ref. 1 thru 16 and P/N D66362
1шт.
1
D73658
HOUSING
front, Includes: Ref. 2 and 3
1шт.
2
F60368
NEEDLE BEARING
BEARING housing
1шт.
4
13-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
2шт.
5
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
hex head, 3/8 inch - 16 NC 3/4 inch
2шт.
6
D41419
RING
RETAINING RING shaft
1шт.
Part of repair kit P/N N6615.
1шт.
7
D73667
SEAL,28.57mm ID x 50.98mm OD x 6.35mm Thk
shaft
1шт.
8
F62235
SNAP RING,#112, Ext
Ring, Snap, , washer #112, Ext
2шт.
Part of repair kit P/N N6615.
1шт.
9
D66330
WASHER
RING backup, seal
1шт.
10
T36441
THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"
BEARING thrust, shaft
1шт.
11
A52205
RACE,28.63mm ID x 44.2mm OD x 2.41mm Thk
thrust, shaft
2шт.
12
D66366
SHAFT
drive
1шт.
13
D77392
PLATE
swash, right-hand
1шт.
14
D73669
O-RING
O-RING swash, plate, right-hand
1шт.
Part of repair kit P/N N6615.
1шт.
15
D77391
PISTON
ASSEMBLY pump
1шт.
16
N7804
GASKET
housing
1шт.
Part of repair kit P/N N6615.
1шт.
D66361
PLATE
ASSEMBLY, backing, Includes: 17 thru 20 and P/N D66362
1шт.
17
NSS
NOT SOLD SEPARAT
PLATE backing
1шт.
18
NSS
NOT SOLD SEPARAT
STOP cam
1шт.
19
A28244
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W
BEARING shaft
1шт.
20
138-174
LOCK PIN,3/8" x 1 1/2", Slotted
PIN, 3/8" x 1 1/2", Slotted
1шт.
D66362
VALVE
tow, Includes: Ref. 21 thru 34, 40, 41, and P/N N6623
1шт.
21
NSS
NOT SOLD SEPARAT
SEPARATOR relief valve
1шт.
22
G46146
SNAP RING,#37, Ext
Ring, Snap, , separator #37, Ext
1шт.
Part of repair kit P/N N6615.
1шт.
23
NSS
NOT SOLD SEPARAT
PLUG separator
1шт.
24
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Large
1шт.
Part of repair kit P/N N6615.
1шт.
25
N8539
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
small
1шт.
Part of repair kit P/N N6615.
1шт.
26
N6630
HOUSING adapter
1шт.
27
D63347
O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro
housing
1шт.
Part of repair kit P/N N6615.
1шт.
28
D27833
SNAP RING,1.625", Int, #162
Ring, Snap, , sleeve 1.625", Int, #162
2шт.
Part of repair kit P/N N6615.
1шт.
29
D66359
COVER
trunnion
1шт.
30
A62193
O-RING,1.424" ID x 1.63" OD
bearing
2шт.
Part of repair kit P/N N6615.
1шт.
31
D66354
SLEEVE
cover
1шт.
32
D66352
BUSHING
RACE inner
1шт.
33
A14858
NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W
BEARING needle, pump
2шт.
34
D61966
VALVE
check, not shown assembled, Includes: 35 thru 39
2шт.
35
NSS
NOT SOLD SEPARAT
BODY check
1шт.
36
211-308
BALL steel, 9/32 inch (7 mm) diameter
1шт.
37
D61967
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
body
1шт.
Part of repair kit P/N N6615.
1шт.
38
D54861
BACK-UP RING
WASHER special
1шт.
Part of repair kit P/N N6615.
1шт.
39
138-54
LOCK PIN,1/8" x 9/16", Slotted
PIN, 1/8" x 9/16", Slotted
1шт.
40
N6621
VALVE
relief, pump, Includes: Ref. 40, 41, and P/N N6623
2шт.
41
N6629
SPRING
relief, valve
2шт.
N6623
PLUG ASSEMBLY, relief, valve, Includes: Ref. 42 and 43
2шт.
42
NSS
NOT SOLD SEPARAT
PLUG relief, valve
1шт.
43
R30989
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
plug
1шт.
Part of repair kit P/N N6615.
1шт.
44
D66356
SPLINED COUPLING
COUPLER shaft, not included with pump, order separately
1шт.
N6615
KIT
repair, Includes: Refs. 6, 8, 14, 16, 22, 24, 25, 27, 28, 30, 37, 38 and 43
1шт.
