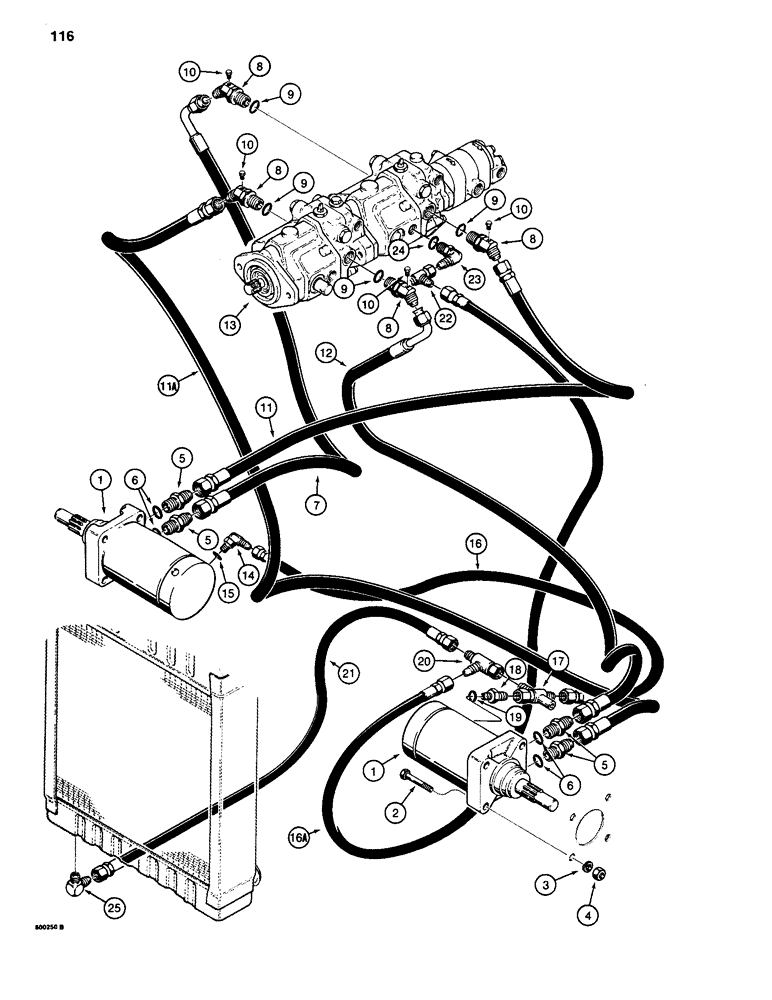

Запчасти Case 1835 (116) - HYDROSTATIC DRIVE MOTOR CIRCUIT (06) - POWER TRAIN

1

D127145

MOTOR, HYDRAULIC

MOTOR hydrostatic, drive, see Fig. 132

2шт.

D137338R

REMAN-HYD MOTOR

1835, Reman For New P/N D127145

2шт.

D137338C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT hex, head, 1/2 inch - 13 NC x 2-1/2 inch

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

129-556

NUT,1/2"-13, G8

8шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, drive, motors, Includes: Ref. 6

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

7

D126474

HOSE

L.H., motor to tandem pump, L.H. side, 61 inch (1550 mm) long

1шт.

8

D61504

FITTING

ELBOW pump, drive, special, 45 degree, Includes: Ref. 9 and 10

4шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

elbow

1шт.

10

221-1661

PLUG

hex, head, 1/8 inch, NPT

1шт.

11

D122777

HOSE

R.H., motor to tandem pump, R.H. side, 49-1/4 inch (1250 mm) long

1шт.

11a

D122777

HOSE

R.H., motor to tandem pump, L.H. side, 49-1/4 inch (1250 mm) long

1шт.

12

D126476

HOSE

L.H., motor to tandem pump, R.H. side, 57 inch (1450 mm) long

1шт.

13

REF

INSTRUCTION

PUMP tandem, see Fig. 120

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, L.H. motor, 90 degree, Include: Ref. 15

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

16

D121694

HOSE

L.H. to R.H. motor, 19-11/16 inch (500 mm) long

1шт.

16a

D121694

HOSE

tee to tee, 19-11/16 inch (500 mm) long

1шт.

17

D121814

FITTING

TEE, drain

1шт.

18

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straigt, male, Include: Ref. 19

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

20

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

motor, drain

1шт.

21

D121695

HOSE

tee to cooler, 60 (1524 mm) long

1шт.

22

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

pump 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, front pump, 90 degree, Include: Ref. 24

1шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

25

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree, cooler

1шт.
