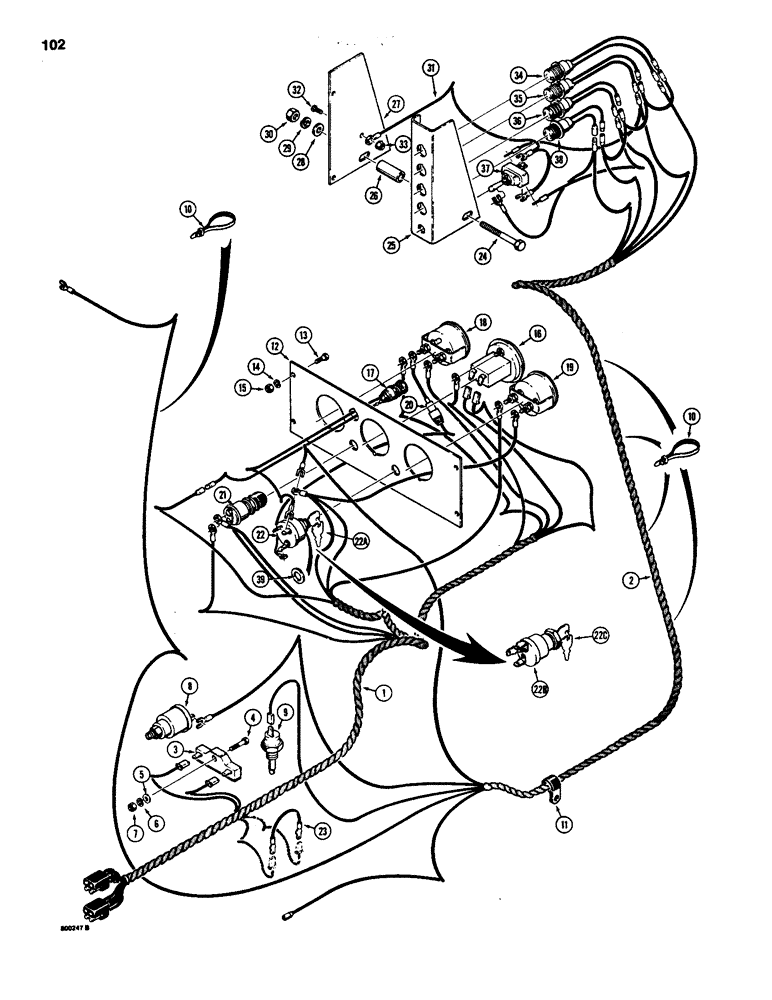

Запчасти Case 1835 (102) - ELECTRICAL SYSTEM, FRONT HARNESS, GAUGES, AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

D84159

HARNESS

front, instrument, panel

1шт.

2

D92943

HARNESS

front, warning, lights

1шт.

3

F22316

RESISTOR,75 Ohms 0.2 Amps DC

switch to alternator, gasoline models

1шт.

4

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Gasoline models Hex, 1/4"-20 x 1 1/4", G5

1шт.

5

195-18

WASHER,1/4"

flat, 1/4 inch, gasoline models

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Gasoline models 1/4"

1шт.

7

25-104

NUT,1/4"-20, G5

Gasoline models 1/4"-20, G5

1шт.

8

D123864

SWITCH

transmission, pressure

1шт.

9

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

transmission, temperature

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

harness

1шт.

12

D83879

PLATE

instrument

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

25-104

NUT,1/4"-20, G5

4шт.

16

D53047

GAUGE

HOURMETER engine

1шт.

17

A24084

LAMP

warning, engine, oil, pressure, Includes: Ref. 17A

1шт.

17a

A24354

BULB

lamp no. 1895R, not shown

1шт.

18

R38643

ELECTRICAL GAUGE

GAUGE ammeter

1шт.

19

L78590

ELECTRICAL GAUGE

GAUGE engine temperature

1шт.

20

D66085

FUSE

HOLDER fuse, Includes: Ref. 20A

1шт.

20a

223-31

FUSE,10 Amp, Type 3AG

30 amp., not shown

1шт.

21

D122244

SWITCH

starter Includes: Ref. 21A

1шт.

21a

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

switch, starter, not shown

1шт.

22

A24511

SWITCH

ignition, w/key (Gas) if used, Includes: Ref 22A

1шт.

22a

A24509

KEY

- ignition switch, set of 2, if used

1шт.

22b

D35092

SWITCH

ignition, if used, Includes: Ref. 22B

1шт.

22c

R30074

SET

KEY switch, et of 2, if used

1шт.

23

D55150

ELECTRICAL WIRE

WIRE jumper, switch to alternator, diesel models

1шт.

24

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

25

D92730

BRACKET

warning lamp mounting

1шт.

26

D94121

BUSHING

SPACER bracket

1шт.

27

D92804

PLATE

bracketplate

1шт.

28

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

1шт.

31

D93066

WIRE jumper

1шт.

32

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

pan, head, slotted, No. 10 - 32 NC x 3/8 inch

3шт.

33

193-1000

NUT,Keps, w/LW,#10-32

hex, self-locking, No. 10 - 32 NC

3шт.

34

D69791

HOUSING

LAMP warning, charge, pressure

1шт.

35

D70193

INDICATOR LIGHT

LAMP warning, transmission, temperature

1шт.

36

D80735

INDICATOR LIGHT

LAMP warning, filter

1шт.

37

D77950

SWITCH

toggle, momentary on-off, includes: hardware

1шт.

38

D92790

LAMP

warning, low fuel

1шт.

39

95-8

WASHER,1/2"

flat, used with P/N A24511 ignition switch 1/2"

1шт.
