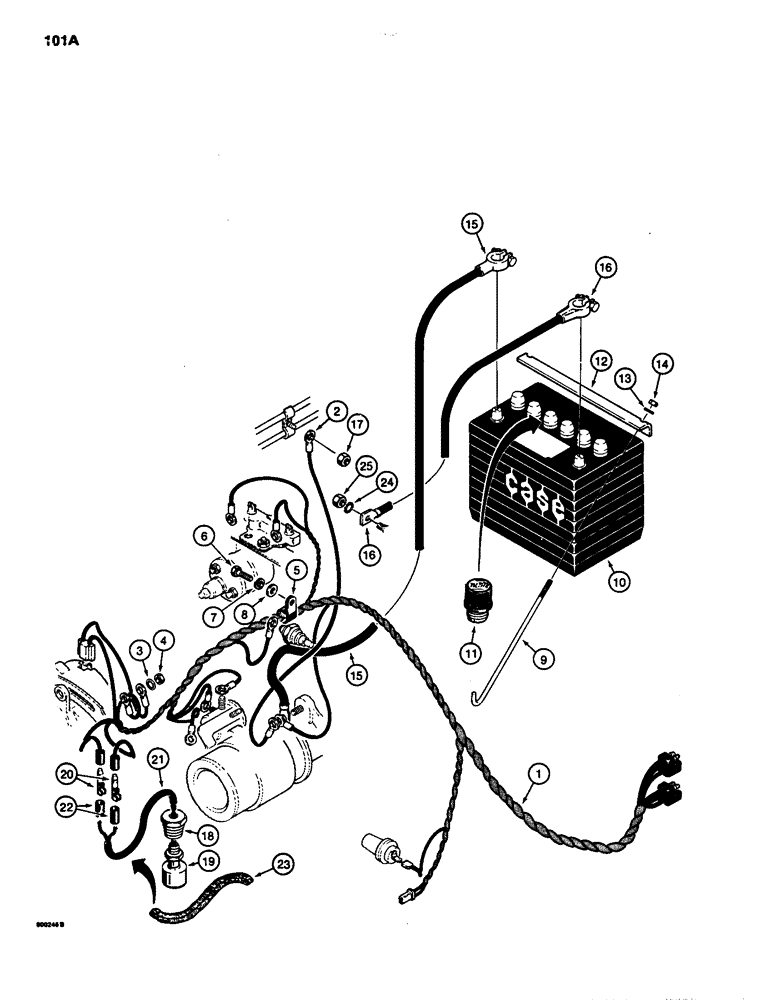

Запчасти Case 1835 (101A) - ELECTRICAL SYSTEM, REAR HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS

1

D84181

HARNESS

rear, gasoline models

1шт.

1

D84124

HARNESS

rear, diesel models

1шт.

2

D87572

ELECTRICAL WIRE

CABLE ground, Serial Range: engine-frame

1шт.

3

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

4

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1

1шт.

5

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

wire, harness, rear

2шт.

6

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

hex, head, 1/4 inch - 20 NC x 5/8 inch

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

195-18

WASHER,1/4"

flat, 1/4 inch

1шт.

9

D90467

BOLT

battery, hold down

2шт.

10

T40362

BATTERY

12 volt, gasoline models

1шт.

When replacing T40362 or A38411 battery, retain non- spill caps for service of new battery or order (6) A60553 caps.

1шт.

10

A38411

DRY BATTERY

- 12 volt, diesel models

1шт.

When replacing T40362 or A38411 battery, retain non- spill caps for service of new battery or order (6) A60553 caps.

1шт.

11

A60553

CAP

battery, nonspill

6шт.

12

D59706

ANGLE

battery, hold down, gasoline models

1шт.

12

D84224

BRACKET

ANGLE battery, hold down, diesel models

1шт.

13

195-525

WASHER,3/8", SAE

flat, plated, 3/8 inch

2шт.

14

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8 inch

2шт.

15

D89261

CABLE

battery, positive, terminal

1шт.

16

D64166

CABLE

battery, negative, terminal, grounded at starter, gasoline models

1шт.

16

D64166

CABLE

battery, negative, terminal, grounded at intake mainifold stud, diesel models

1шт.

17

25-146

JAM NUT,Jam, 3/8"-16, G5

jam, hex, 3/8 inch - 16 NC

1шт.

18

D92801

FITTING

fuel, level

1шт.

D94137

SWITCH

KIT switch, fuel, level

1шт.

19

NSS

NOT SOLD SEPARAT

SWITCH fuel, level

1шт.

20

L11778

CONNECTOR, ELEC

CONNECTOR, wire

2шт.

21

D71189

TUBE,0.125" ID x 5.5" L

SLEEVE, protective

1шт.

22

223-125

TUBE

TUBING SHRINK, connector

2шт.

23

R43850

CONDUIT protective

1шт.

24

195-72

WASHER internal-external, tooth, lock, 3/8 inch, diesel models

1шт.

25

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC, diesel models

1шт.
