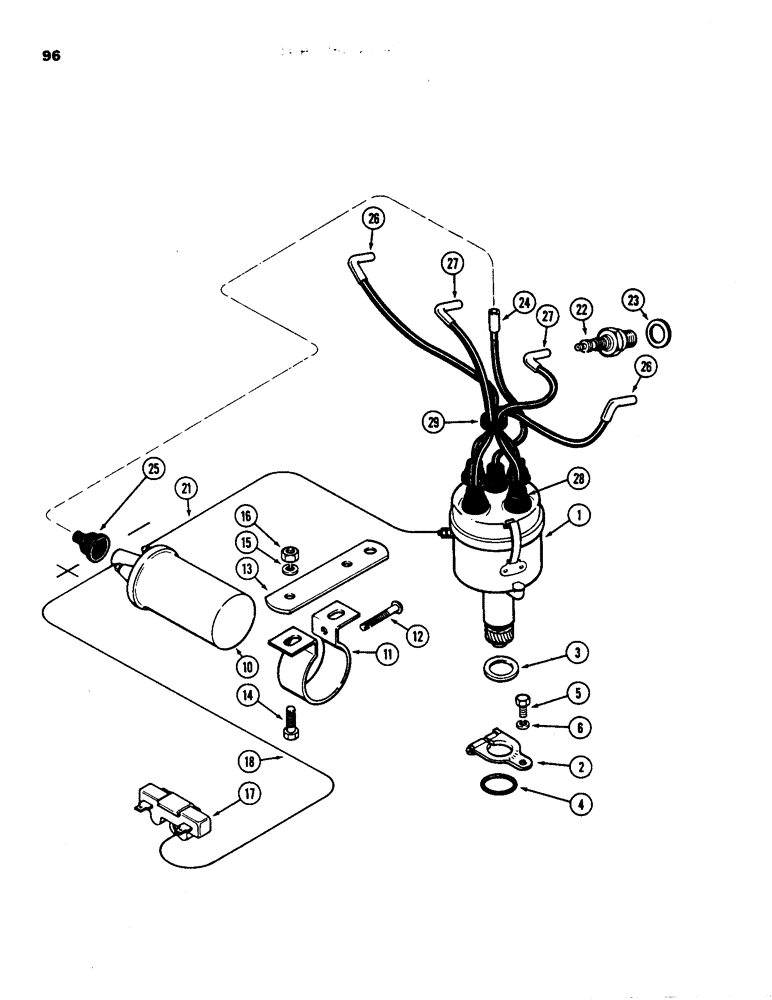

Запчасти Case 1835 (096) - SPARK IGNITION SYSTEM, 148B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

DISTRUBTOR ASSEMBLY, engine, see Fig. 98

1шт.

2

A29989

ARM

ASSEMBLY, advance

1шт.

3

A30080

THRUST WASHER

thrust, advance, arm

1шт.

4

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

distributor

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

A40778

COIL

ignition, 12 volt

1шт.

This coil is 6 volt

1шт.

11

G46106

BRACKET

mounting, coil

1шт.

12

187-540

SCREW round head, self tapping, No. 10 x 1-1/2 inch

1шт.

13

G11705

BRACKET

STRAP support, coil

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

A143357

RESISTOR

coil, ballast, Prestolite 201021

1шт.

18

A150039

ELECTRICAL WIRE

WIRE resistor, to coil, white, 7 inch (178 mm)

1шт.

21

G13085

ELECTRICAL WIRE

WIRE coil to distriutor, 12 inch (305 mm)

1шт.

22

G44840

SPARK PLUG

PLUG ASSEMBLY, spark, Includes: gasket

4шт.

22

A150638

SPARK PLUG

PLUG ASSEMBLY, spark, radio suppression, Includes: Ref. 23

4шт.

23

G46839

GASKET

, Serial Range: plug-block

1шт.

24

A62857

ELECTRICAL WIRE

WIRE coil, 12-1/2 inch (318 mm)

1шт.

25

G46803

BOOT

NIPPLE coil, wire

1шт.

26

A51509

CABLE

WIRE distributor, 12 inch (305 mm)

2шт.

27

A51510

CABLE

WIRE distributor, 8-3/4 inch (222 mm)

2шт.

28

A29338

COVER

NIPPLE wire, distributor

5шт.

29

A30109

WASHER

RING wire, harness

1шт.
