Запчасти Case 1835 (092) - A167153 ALTERNATOR (04) - ELECTRICAL SYSTEMS

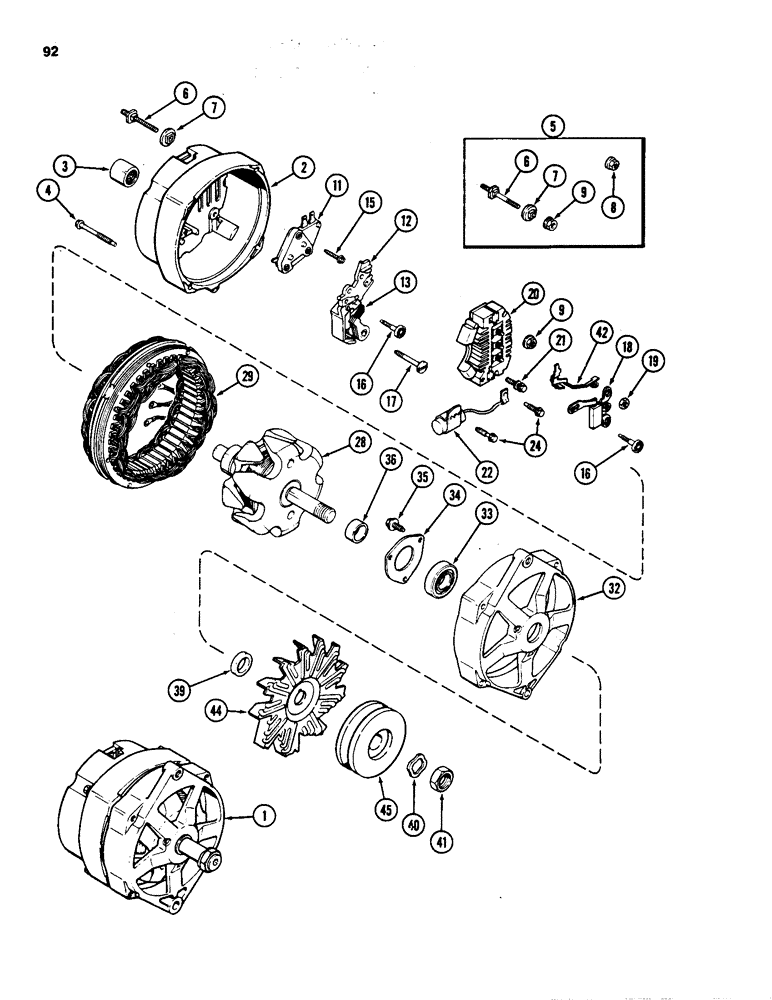

Схема запчастей Case 1835 - (092) - A167153 ALTERNATOR (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A167153

ALTERNATOR

ALTERNATOR ASSEMBLY, 63 amp. , Delco No. 11051604, J. I. Case Installed, order: P/N A46932, A43384 and A51561

1шт.

1

A47436

ALTERNATOR

STARTER ASSEMBLY , engine, remanufactured

1шт.

Use this number for intransit core for credit.

1шт.

1

A47444

REMAN-ALTERNATOR

Reman For New PN A47436

1шт.

1

A47445

CORE-ALTERNATOR

Return Number

1шт.

1

A46932

ALTERNATOR

ALTERNATOR ASSEMBLY, engine, service only, Includes: Ref. 2 thru 42

1шт.

1

A47444

REMAN-ALTERNATOR

Reman For New PN A46932

1шт.

1

A47437

CORE-ALTERNATOR

Return Number, starter

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volts, 63 Ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volts, 63 Ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A186125

ALTERNATOR

Alternator, 14V, 65 Amp

1шт.

1

AR186125GV

ALTERNATOR

Value

1шт.

1

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

AC186125

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY, slip, ring, end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT hex, through No.10-24 x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

KIT terminal, battery, Includes: Ref. 6 thru 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY, terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY, terminal

1шт.

11

A45213

REGULATOR

REGULATOR voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY, brush, Includes: ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush, holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush, holder, insulated

1шт.

17

A47581

SCREW,#8 - 32 x 1.43"

SCREW brush, holder, retaining

1шт.

18

A48339

DIODE

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, #8-32

3шт.

20

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE,alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier, bridge, attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR alternator

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor, bracket

2шт.

28

A46935

ROTOR

ROTOR ASSEMBLY, alternator

1шт.

29

A46936

STATOR

STATOR ASSEMBLY, alternator

1шт.

32

A46933

FRAME

FRAME drive, end

1шт.

33

A49389

BEARING ASSY

BEARING ball, drive, end

1шт.

34

R15101

PLATE

PLATE bearing, retainer

1шт.

35

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW bearing, plate, retaining

3шт.

36

A48261

COLLAR

COLLAR rotor, shaft, inner

1шт.

39

A47580

COLLAR

COLLAR rotor, shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley, nut

1шт.

41

A25546

NUT

NUTretaining, pulley and fan

1шт.

42

A46931

TERMINAL CONNECTOR

TERMINAL relay

1шт.

44

A43384

FAN

FAN alternator, ventilating

1шт.

45

A51561

PULLEY

PULLEY drive

1шт.

Выбрано товаров: 56
