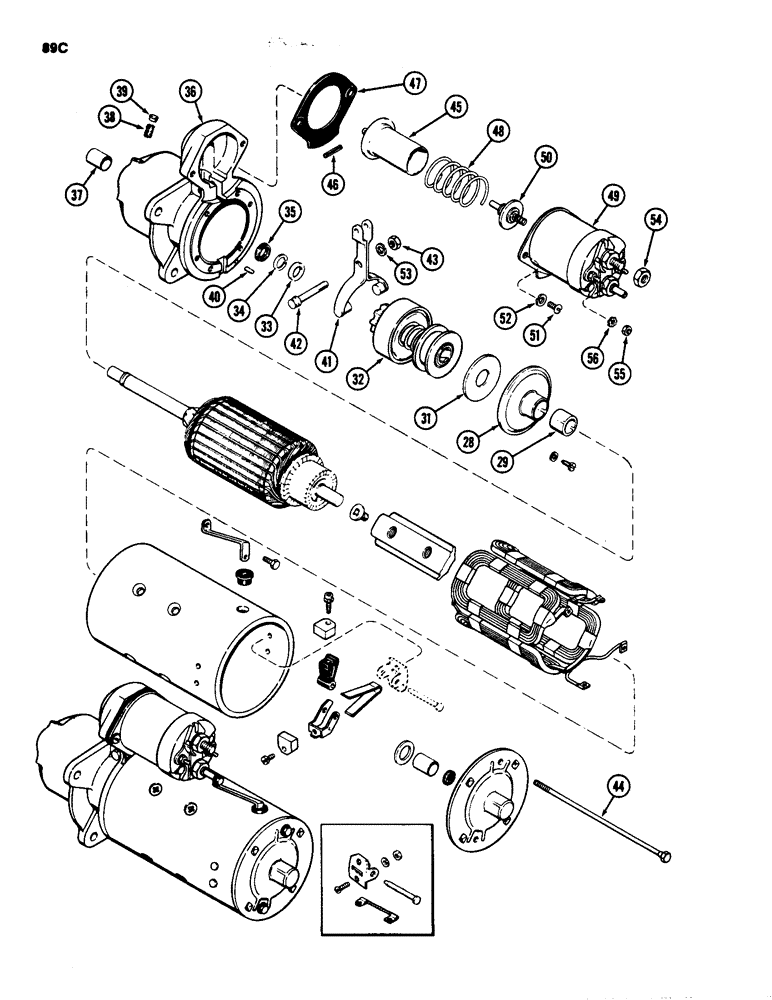

Запчасти Case 1835 (089C) - A169502 STARTER, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A169502

STARTER MOTOR

STARTER ASSEMBLY, engine, Includes: Ref. 28 thru 52, continued from Fig. 89A

1шт.

28

A49446

BEARING ASSY

PLATE ASSEMBLY, center, bearing, Includes: Ref. 29

1шт.

29

A47544

BUSHING

Center

1шт.

31

A49451

WASHER

thrust, center, bearing

1шт.

32

A47178

DRIVE

ASSEMBLY, starter

1шт.

33

R15049

COLLAR

drive, stop

1шт.

34

R15048

RING

snap

1шт.

35

A48709

WASHER

thrust, drive, end

1шт.

36

A49471

HOUSING

ASSEMBLY, drive, end, Includes: Ref. 37 thru 39

1шт.

37

A25387

BEARING

BUSHING armature, shaft

1шт.

38

A48716

WICK

oil

1шт.

39

A48712

PLUG

slotted, 1/8 inch, PT

1шт.

40

A49452

DOWEL

PIN locating

1шт.

41

A40220

LEVER

shift, drive

1шт.

42

A40520

BOLT

PIVOT shift, lever

1шт.

43

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

44

A49474

BOLT

through

2шт.

45

A49473

FRAME

PLUNGER solenoid

1шт.

46

A49453

PIN

attaching

1шт.

47

A42126

GASKET

starter, switch

1шт.

48

A48717

SPRING

return, plunger

1шт.

49

A49480

SWITCH

SOLENOID ASSEMBLY, starter

1шт.

50

A49477

CONTACT ASSEMBLY, solenoid

1шт.

51

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

round, head, slotted, 1/4 NC x 1/2 inch

2шт.

52

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

A49478

NUT

hex, M10

1шт.

55

825-1105

NUT,M5, Cl 8

hex, M5

2шт.

56

193-6

LOCK WASHER,Ext Tooth, #10

WASHER external, lock, M5

1шт.
