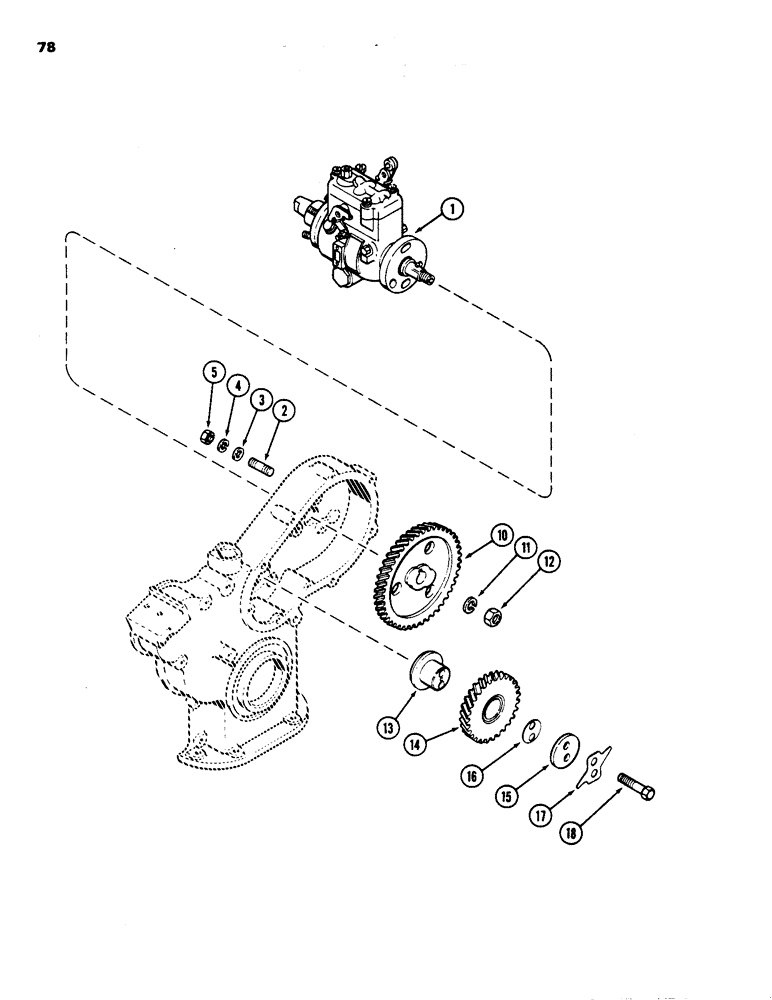

Запчасти Case 1835 (078) - FUEL INJECTION PUMP DRIVE, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY, injection see Fig. 76

1шт.

2

G102128

BOLT

mounting, pump, 1-7/16 inch

3шт.

3

A30043

WASHER

stud, mounting

3шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

G2076

GEAR

pump, injection, drive

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

hex jam, 9/16 inch NF

1шт.

13

G11726

HUB

idler, gear

1шт.

14

G11852

GEAR

GERA ASSEMBLY, idler, Includes: bushing

1шт.

15

G11732

PLATE

thrust

1шт.

16

G11728

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

(0.157 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

(0.229 mm) .009" Thk

1шт.

17

G11746

PLATE

lock

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
