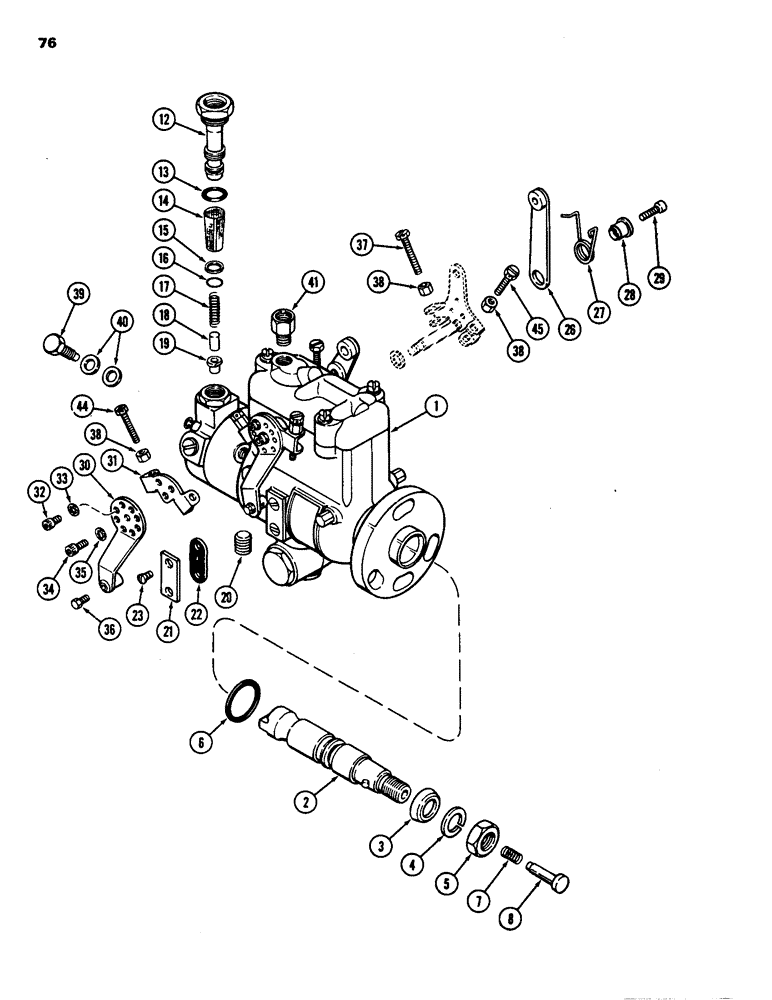

Запчасти Case 1835 (076) - FUEL INJECTION PUMP ASSEMBLY, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

A155539

PUMP, FUEL INJECTION

PUMP ASSEMBLY, fuel injection, 2100 RPM, Includes: Ref. 2 thru 40

1шт.

2

A44710

SHAFT

ASSEMBLY, drive Includes: pin

1шт.

3

R14711

SEAL

drive, shaft

1-2шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

25-119

NUT,9/16"-18, G5

jam, hex, 9/16 inch, NF

1шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL tube, pilot

1шт.

7

G48502

SPRING

thrust

1шт.

8

A44653

PLUNGER

spring, thrust

1шт.

12

A43869

SLEEVE

plate, end

1шт.

13

51200280

SEAL

sleeve, plate, end

1шт.

14

A43870

FILTER, FUEL

FILTER element

1шт.

15

A43871

SEAL

element

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

17

S43867

SPRING regulating

1шт.

18

73621

PISTON

regulating

1шт.

19

A43868

SEAL

rubber

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

21

73452

COVER

window, timing

1шт.

22

51200272

GASKET

cover

1шт.

23

51200263

SCREW

cover

2шт.

26

G45338

ARM

throttle

1шт.

27

G48505

SPRING

arm, throttle

1шт.

28

G49621

RETAINER

spring

1шт.

29

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW lock, socket, hex, No. 10-32 x 1/4 inch

1шт.

30

G45337

ARM

shut off

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER shut off

1шт.

32

165-1

SCREW,#8 x 1/4"

socket, hex, No. 8-32 x 1/4 inch

1шт.

33

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

34

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW socket, hex, No. 10-32 x 3/8 inch

1шт.

35

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

36

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

hex slotted, No. 8-32 x 3/8 inch

1шт.

37

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

adjusting, high, idle

1шт.

38

51200274

NUT

adjusting, screw

4шт.

39

73613

SCREW

connector, injecion, Serial Range: tube-pump

4шт.

40

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER connector, screw

8шт.

41

A47066

COUPLING

CONNECTOR ASSEMBLY, return, line

1шт.

Contains a glass check ball.

1шт.

44

73649

VOLTAGE REGULATOR

SCREW adjusting, shut off

2шт.

45

51200273

SCREW

adjusting, low idle

1шт.
