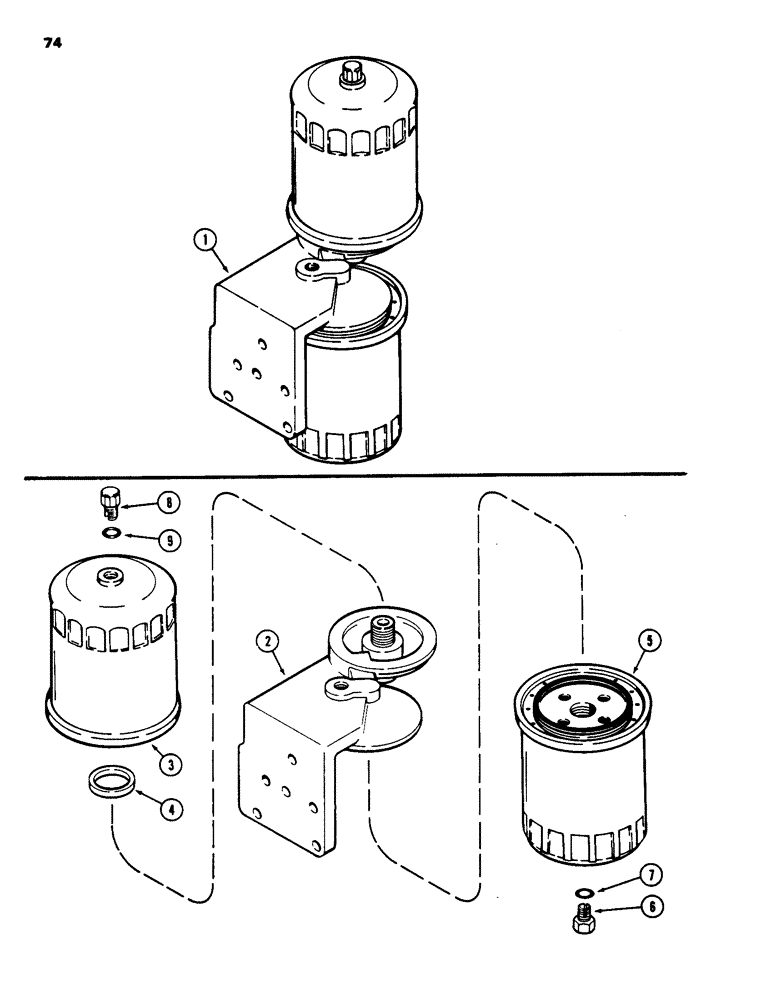

Запчасти Case 1835 (074) - FUEL FILTER ASSEMBLY, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

A154934

FILTER

ASSEMBLY, fuel, Includes: Ref. 2 thru 9

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD filter, Ref. P/N A154909

1шт.

A151281

FUEL FILTER

KIT filter, replacement, Includes: Ref. 3 thru 5

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER secondary, order: P/N A151281

1шт.

4

A42315

GASKET

secondary, Serial Range: filter-head

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER primary order: P/N A151281

1шт.

6

G49080

PLUG

drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Bleed, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
