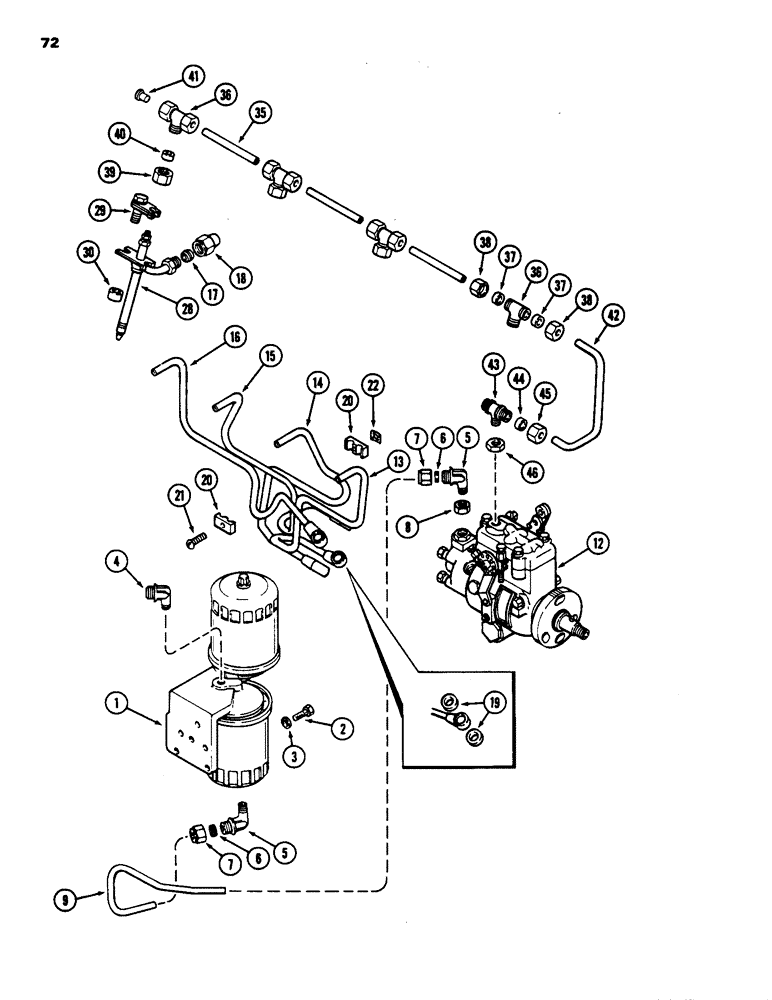

Запчасти Case 1835 (072) - FUEL INJECTION AND FILTER SYSTEM, 188 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY, fuel, see Fig. 74

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

221-412

ELBOW,90 Degree, 1/4"-27, NPT

street, 1/4 inch, PT, 90 degree

2шт.

5

222-4047

ELBOW

ASSEMBLY, 3/8 tube, 5/8-24 thread x 1/4 inch, PT

2шт.

6

222-104

SLEEVE,3/8" Tube

3/8 inch, tube

1шт.

7

222-114

NUT,5/8"-24

NUT hex, 5/8-24 inch, thread

1шт.

8

A38161

LOCK NUT

seal, pump inlet, 1/4 inch, PT

1шт.

9

A51784

TUBE

filter

1шт.

12

REF

INSTRUCTION

PUMP ASSEMBLY, fuel injection see Fig. 76

1шт.

13

A37842

TUBE

ASSEMBLY, to No. 1 injector, Includes: Ref. 17 and 18, order: P/N A37842 and G49407

1шт.

14

A37844

TUBE

ASSEMBLY, to No. 2 injector, Includes: Ref 17 and 18, order: P/N A37844

1шт.

15

A37846

TUBE

ASSEMBLY, to No. 3 injector, Includes: Ref. 17 and 18

1шт.

16

A37848

TUBE

ASSEMBLY to No. 4 injector

1шт.

17

A37850

PIPE FITTING

SLEEVE, tube end

1шт.

18

A37851

NUT

tube, end

1шт.

19

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER tube

2шт.

20

A58709

BRACKET

CLAMP injection, tube

4шт.

21

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

round, head, No. 10-24 x 1 inch

2шт.

22

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT speed, No. 10

2шт.

28

REF

INSTRUCTION

NOZZLE ASSEMBLY, injectors, see Fig. 80

4шт.

29

A37837

CLAMP

nozzle

4шт.

30

A37839

SPACER

clamp

4шт.

35

A38644

TUBE

leak, off

3шт.

36

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE leak, off tube

4шт.

37

222-102

SLEEVE,1/4" Tube

8шт.

38

87017024

TUBE NUT,1/2"-24

NUT hex, 1/2-24 inch, thread

8шт.

39

A58961

NUT

nozzle

4шт.

40

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

nozzle

4шт.

41

47-47

RIVET,FH, 1/4" x 7/16"

PLUG tee, end

1шт.

42

A142906

TUBE

leak, Serial Range: off-pump

1шт.

43

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSEMBLY, 1/4 tube 1/2-24 thread x 1/8 inch, PT, Includes: Ref. 44 and 45

1шт.

44

222-102

SLEEVE,1/4" Tube

2шт.

45

87017024

TUBE NUT,1/2"-24

NUT hex, 1/2-24 inch, thread

2шт.

46

A38160

LOCK NUT

seal, return tee, 1/8 inch, PT

1шт.
