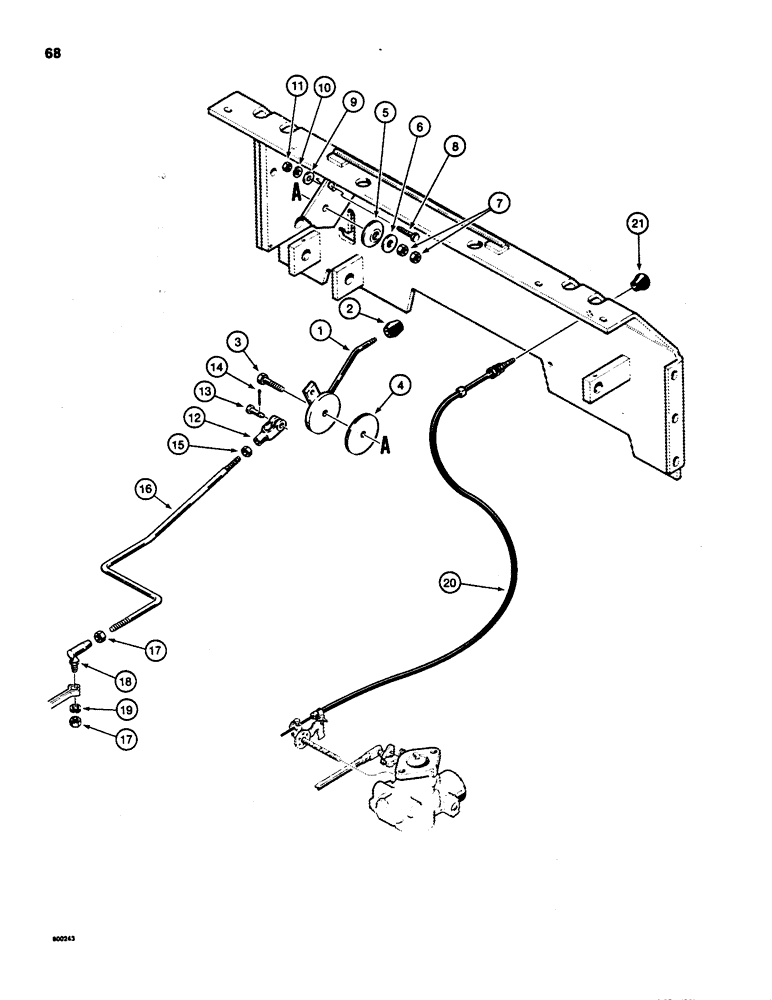

Запчасти Case 1835 (068) - GASOLINE ENGINE CONTROLS (03) - FUEL SYSTEM

1

D80795

HANDLE

throttle, control

1шт.

2

D53845

KNOB

handle

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, head, 3/8 inch - 16 NC x 1-1/2 inch

1шт.

4

R15071

DISC

friction, handle

1шт.

5

R14771

WASHER

Belleville, handle

1шт.

6

195-25

WASHER,3/8"

1шт.

7

25-106

NUT,3/8"-16, G5

3/8 inch - 16 NC

2шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, head, 5/16 inch - 18 NC x 1-1/4 inch

1шт.

9

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch - 18 NC

1шт.

12

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS adjustable, 1/4 inch

1шт.

13

141-2

CLEVIS PIN,1/4" x .770"

PIN clevis, throttle control rod

1шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Clevis pin 1/16" x 1/2"

1шт.

15

25-114

NUT,1/4"-28, G5

1/4 inch - 28 NF

1шт.

16

D89966

ROD

throttle, control

1шт.

17

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

18

A19105

BALL JOINT

JOINT ball, throttle control rod

1шт.

19

92-5

LOCK WASHER,5/16"

1шт.

20

D91272

CABLE

choke, control

1шт.

21

D91274

KNOB

choke, control, cable

1шт.
