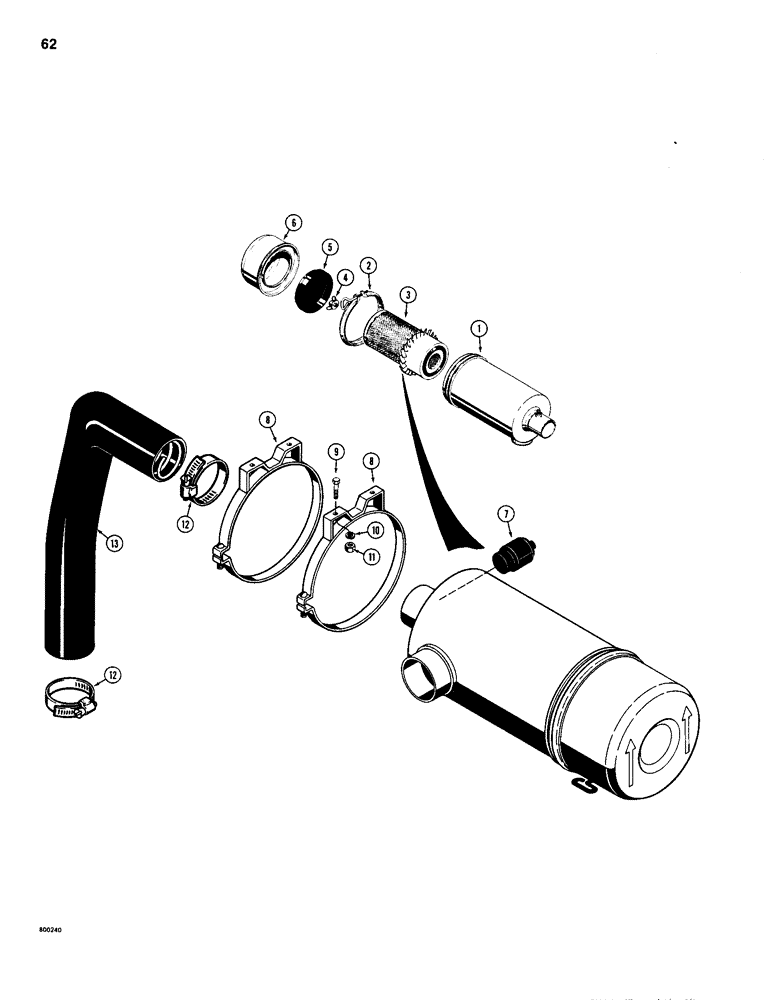

Запчасти Case 1835 (062) - AIR CLEANER, DIESEL MODELS (02) - ENGINE

D64003

CLEANER

Air/Dry Type Assy, Incl 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Air Cleaner Body

1шт.

2

F84999

CLAMP,168.28mm

Cup Retaining Assy

1шт.

3

A42274

AIR FILTER

Element Filter

1шт.

4

D78354

WING NUT

Nut Wing and Washer, Element

1шт.

5

F22312

BAFFLE

Air Cleaner

1шт.

6

F91760

CUP

Dust

1шт.

7

A59569

INDICATOR

Air Ristriction

1шт.

8

L113910

CLAMP

Band Assy, Air Cleaner, Incl Hardware

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

Hex, 3/8 inch - 16 NC

4шт.

12

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

Clamp Air Cleaner

2шт.

13

D84188

INTAKE AIR HOSE,2.25" ID x 13.40", SAE J20, SAE 20R4 CLASS D2

Cleaner 2.25" ID x 13.40", SAE J20, SAE 20R4 CLASS D2

1шт.
