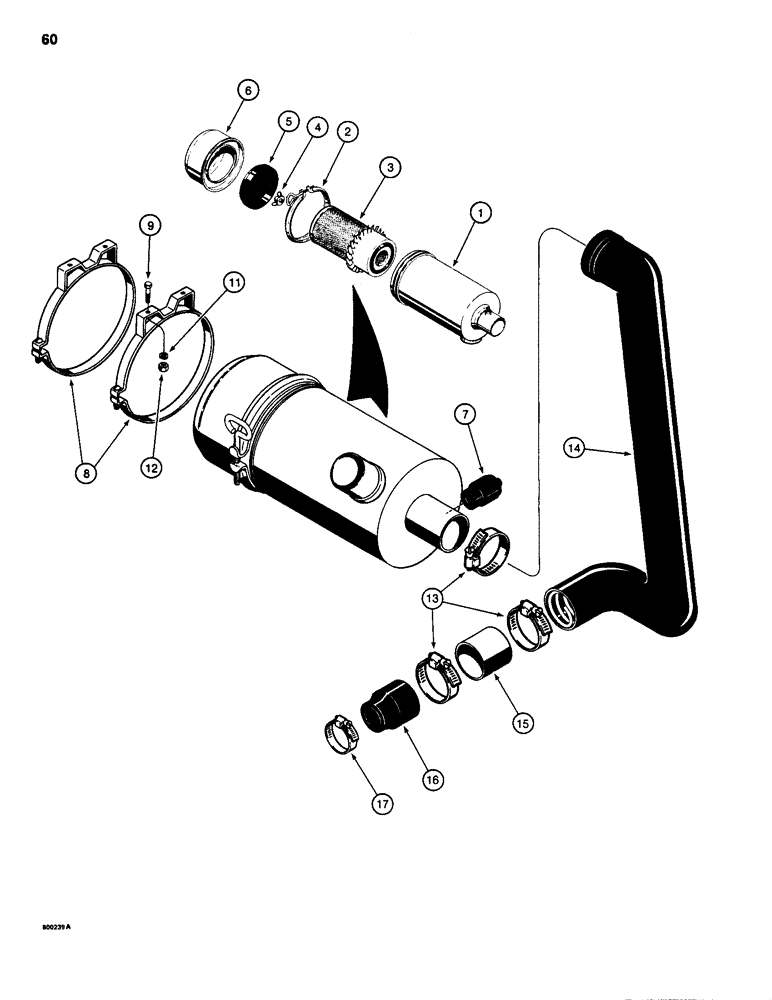

Запчасти Case 1835 (060) - AIR CLEANER, GASOLINE MODELS (02) - ENGINE

D64003

CLEANER

ASSEMBLY, air, dry type, Includes: Ref. 2 thru 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air, cleaner

1шт.

2

F84999

CLAMP,168.28mm

ASSEMBLY, cup, retaining

1шт.

3

A42274

AIR FILTER

ELEMENT filter

1шт.

4

D78354

WING NUT

NUTwing and washer

1шт.

5

F22312

BAFFLE

air, cleaner

1шт.

6

F91760

CUP

dust

1шт.

7

A59569

INDICATOR

air, restriction

1шт.

8

L113910

CLAMP

BAND ASSEMBLY, air cleaner, includes: hardware

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

4шт.

13

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP air, cleaner, large

3шт.

14

D90848

INTAKE AIR HOSE,2.06" ID, 2.25" ID x 20.95", SAE J20 20R4 CLASS D2

2.06" ID, 2.25" ID x 20.95", SAE J20 20R4 CLASS D2

1шт.

15

D90858

SLEEVE

hose

1шт.

16

D49086

ADAPTER

ADAPTOR hose

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

air, cleaner, small #28, 1.31/2.25 Type F Worm

1шт.
